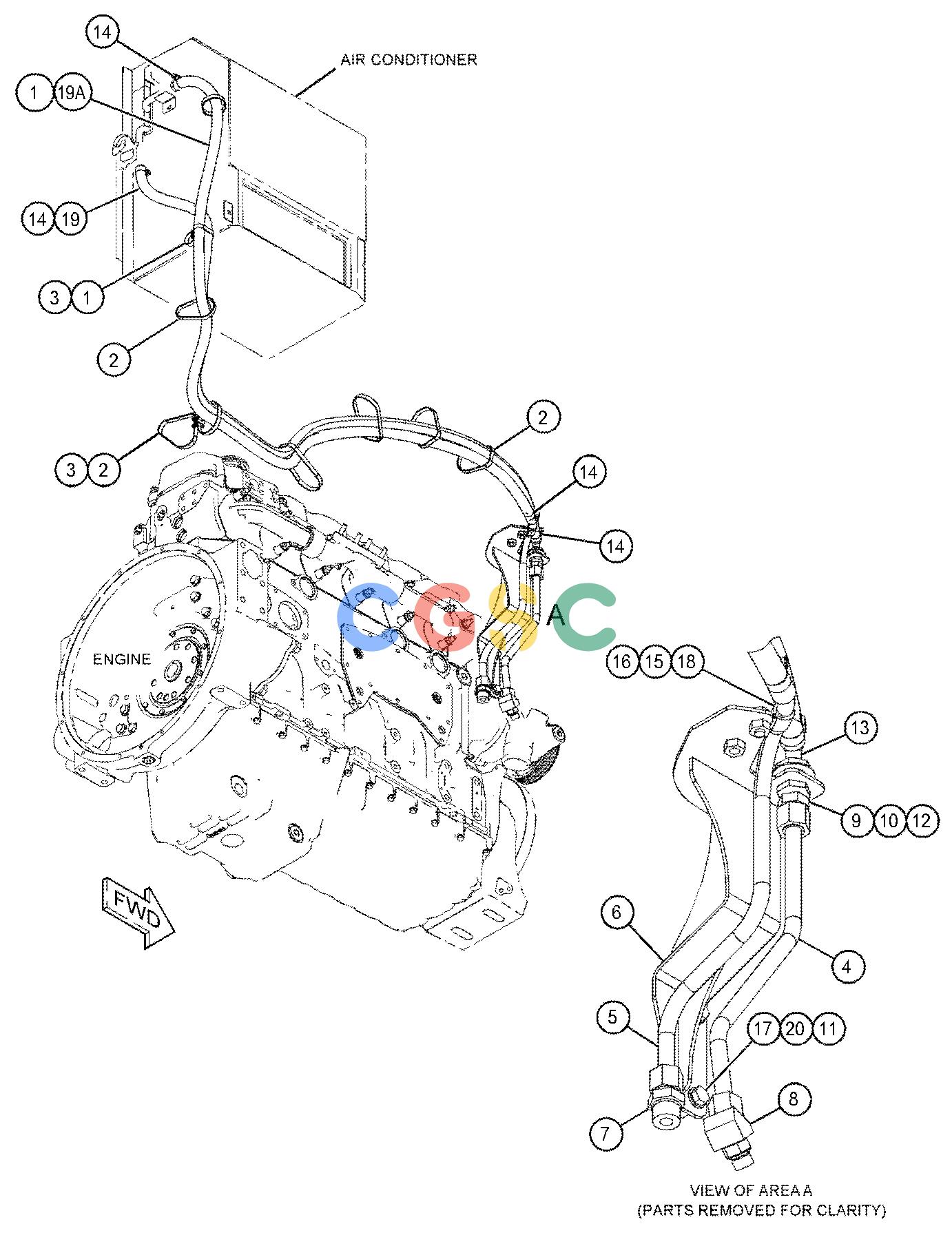

卡特零件查询（725C2） 364-4077: LINES GP-HEATER
广数供应链运营团队, 15 02月, 2025，浏览：
872 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [3] | STRAP | |
| 2. | 6U-0456 | [7] | STRAP | |
| 3. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 4. | 451-9795 | [1] | TUBE AS | |
| 5. | 451-9797 | [1] | TUBE AS | |
| 6. | 388-7890 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 7. | 148-8341 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 8. | 150-3037 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8T-2530 | [1] | ELBOW | |
| 9. | 150-7158 | [1] | CONNECTOR | |
| 10. | 2M-1908 | [1] | FITTING-BULKHEAD | |
| 11. | 3W-9670 | [2] | BOSS | |
| 12. | 7J-9108 | [1] | SEAL-O-RING | |
| 13. | 8F-8151 | [1] | VALVE-SHUTOFF(CAB HEATER) | |
| 14. | 8T-0154 | [4] | CLAMP-HOSE | |
| 15. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 17. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 18. | 9M-8406 | [1] | CLIP(LOOP) | |
| 19. | 415-6334E | | HOSE(233-CM) | |
| 19A. | 415-6334E | | HOSE(239-CM) | |
| 20. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
