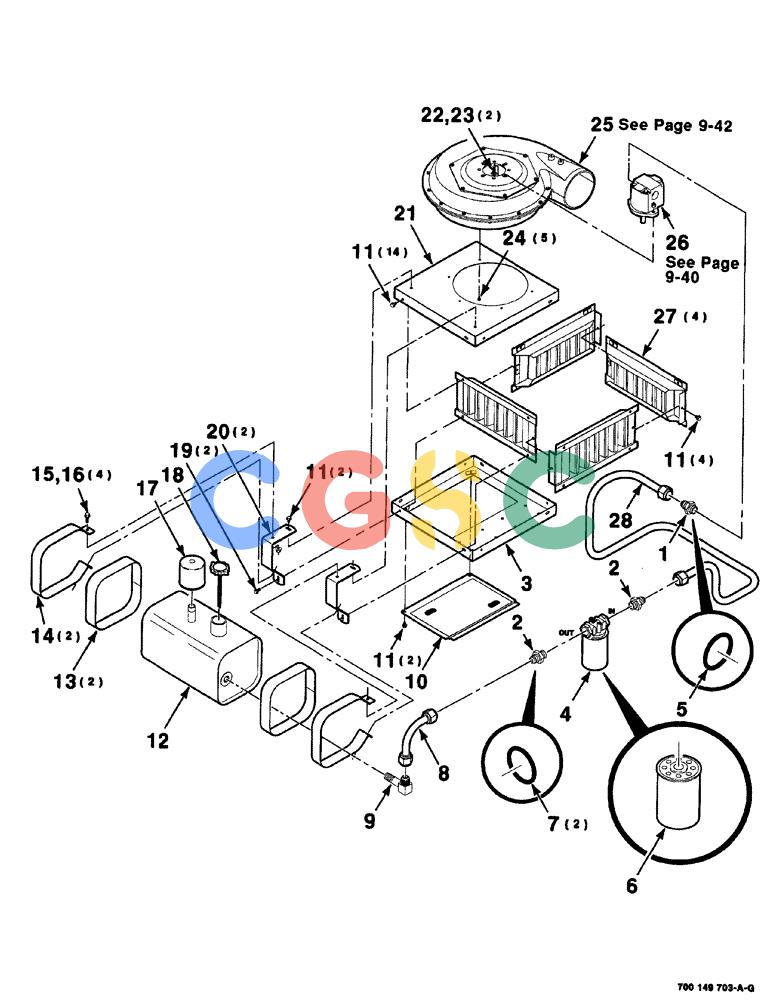

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (09-038) - KNOTTER BLOWER KIT-CONTINUED (BLOWER AND RESERVOIR) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
218-5050
|
[1] |
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
|
CAS
Incl. Ref 5 Superseded by part number: 86512926
|
| 2. |
218-5069
|
[2] |
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
|
CAS
Incl. Ref. 7 Superseded by part number: 378970
|
| 3. |
700149712
|
[1] |
PANEL
|
HFI
WA lower
|
| 4. |
700710972
|
[1] |
FILTER
|
CAS
ASSEMBLY, Includes: Ref. 6
|
| 5. |
738484
|
[1] |
O-RING
|
IH
Superseded by part number: 167266
|
| 6. |
7033616
|
[1] |
FILTER
|
CAS
element
|
| 7. |
738476
|
[2] |
O-RING
|
IH
|
| 8. |
700717695
|
[1] |
LINE
|
CAS
hydraulic
|
| 9. |
700717705
|
[1] |
ELBOW
|
CAS
male, 90 Deg. long
|
| 10. |
700149714
|
[1] |
SCREEN
|
HFI
WA access
|
| 11. |
256873
|
[22] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 12. |
700714482
|
[1] |
RESERVOIR
|
CAS
oil
|
| 13. |
844498
|
[2] |
FELT
|
HFI
reservoir, oil
|
| 14. |
700149719
|
[2] |
STRAP
|
HFI
oil, reservoir
|
| 15. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 16. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 17. |
7825516
|
[1] |
FILTER
|
L
OIL
|
| 18. |
700708076
|
[1] |
FILLER CAP
|
CAS
|
| 19. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 20. |
700149718
|
[2] |
STRAP
|
HFI
mounting, reservoir
|
| 21. |
700149710
|
[1] |
PANEL
|
HFI
WA upper
|
| 22. |
433-620
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 23. |
231-1406
|
[2] |
LOCK NUT,3/8"-16, GB
|
CAS
|
| 24. |
7883275
|
[5] |
SCREW,Hex Washer, 1/4" - 20 x 3/4"
|
CAS
1/4-20 x 3/4 HWHMS
|
| 25. |
700717713
|
[1] |
BLOWER
|
CAS
|
| 26. |
700717759
|
[1] |
MOTOR
|
CAS
ASSEMBLY, hydraulic Superseded by part number: 700723555
|
| 27. |
700149704
|
[4] |
SCREEN
|
HFI
WA
|
| 28. |
700717696
|
[1] |
LINE
|
CAS
hydraulic
|
