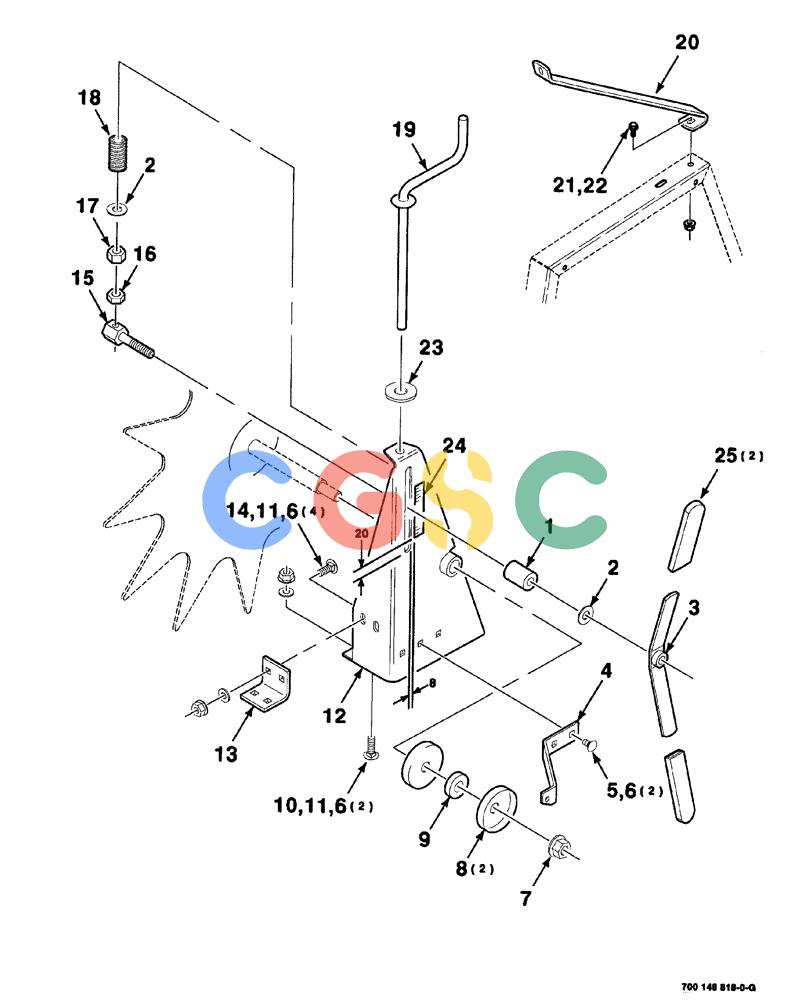

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (09-044) - BALE LENGTH ADJUSTMENT KIT, 700148818 BALE LENGTH ADJUSTMENT KIT COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6234710
|
[1] |
SPACER
|
CAS
|
| 2. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2
|
| 3. |
700134935
|
[1] |
LEVER
|
CAS
ASSEMBLY
|
| 4. |
700134937
|
[1] |
SUPPORT
|
CAS
SPRING
|
| 5. |
433-612
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 6. |
329-286
|
[8] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 7. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
Superseded by part number: 84180923
|
| 8. |
700123850
|
[2] |
SHIELD
|
CAS
WHEEL
|
| 9. |
6530489
|
[1] |
HUB
|
CAS
spacer
|
| 10. |
433-620
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 11. |
496-11041
|
[6] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain, 3/8 Superseded by part number: 86632588
|
| 12. |
700134931
|
[1] |
BRACKET
|
CAS
WA starwheel
|
| 13. |
700134449
|
[1] |
ANGLE
|
CAS
support
|
| 14. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
| 15. |
700134527
|
[1] |
SHAFT
|
CAS
adjust
|
| 16. |
425-148
|
[1] |
JAM NUT,Jam, 1/2"-13, G5
|
CAS
Superseded by part number: 86632558
|
| 17. |
425-108
|
[1] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 18. |
58024
|
[1] |
SPRING
|
IH
compression
|
| 19. |
700134938
|
[1] |
CRANKED HANDLE
|
CAS
WA
|
| 20. |
700152228
|
[1] |
ANGLE
|
HFI
support
|
| 21. |
121-115
|
[1] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 22. |
232-5315
|
[1] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/1 6-1 8 HFTLN GR/G
|
| 23. |
700711557
|
[1] |
WASHER
|
CAS
hardened wide plain, 1/2
|
| 24. |
700714164
|
[1] |
DECAL
|
CAS
indicator
|
| 25. |
827360
|
[2] |
HANDLE
|
CAS
GRIP
|
