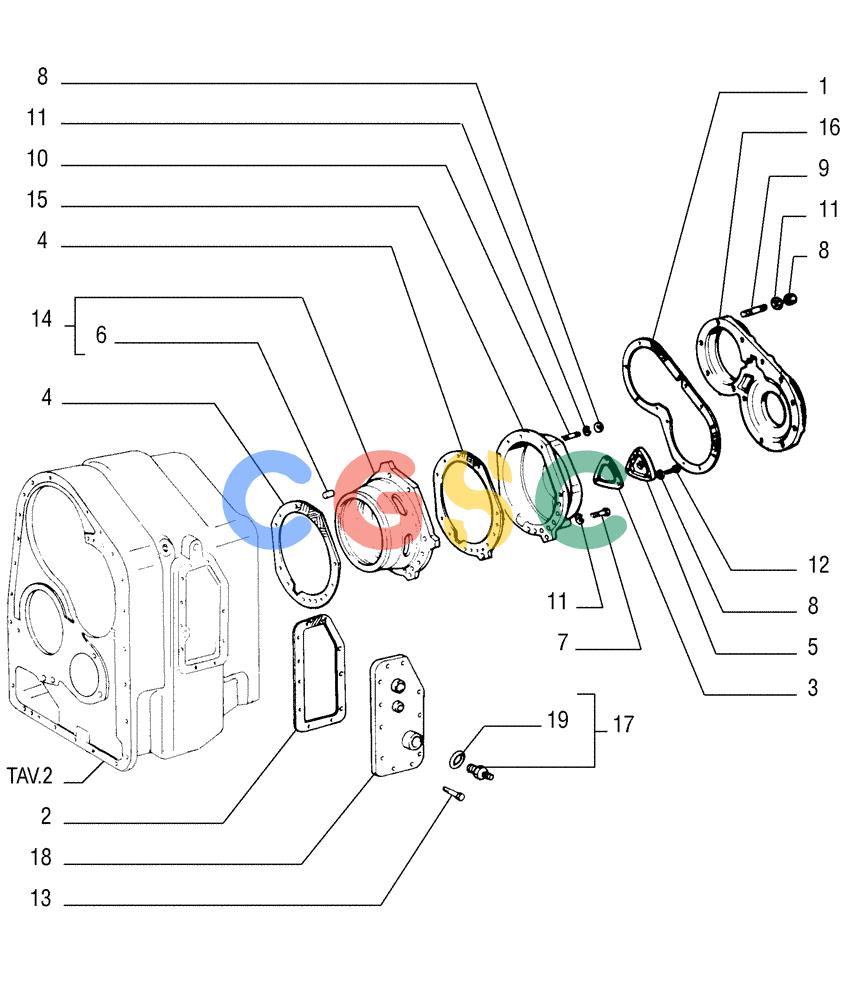

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.211[04]) - TRANSMISSION - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
474 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76028085 | [1] | GASKET,0.8mm Thk | LEC |
| 2. | 76028088 | [1] | GASKET,0.4mm Thk | LEC |
| 3. | 586728 | [2] | GASKET | LEC Superseded by part number: 76028090 |
| 4. | 76028083 | [2] | GASKET,0.8mm Thk | LEC |
| 5. | 4972404 | [2] | COVER | LEC |
| 6. | 10839710 | [2] | DOWEL,M10 x 15.00mm | TTF10X15 |
| 7. | 11234734 | [7] | BOLT,Hex, M10 x 1.25 x 45, 10.9 | LEC Superseded by part number: 11234731 |
| 8. | 12164721 | [14] | NUT,M10 x 1.25, Cl 10 | TTF |
| 9. | 13449734 | [12] | STUD | LEC Superseded by part number: 13449730 |
| 10. | 13449934 | [3] | STUD | LEC |
| 11. | 14496631 | [22] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 12. | 15970534 | [6] | BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15970531 |
| 13. | 15970634 | [11] | BOLT,Hex, M10 x 1.25 x 22mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15970631 |
| 14. | 79032241 | [1] | SUPPORT | LEC- ASSY Superseded by part number: 10839710, 79032244 |
| 15. | 79038342 | [1] | COVER | LEC |
| 16. | 79064503 | [1] | COVER | LEC |
| 17. | 79066934 | [1] | HYD CONNECTOR | BHB- ASSY |
| 18. | 79115317 | [1] | COVER | LEC |
| 19. | 14437585 | [1] | O-RING,8.00mm ID x 1.50mm | IMO |
