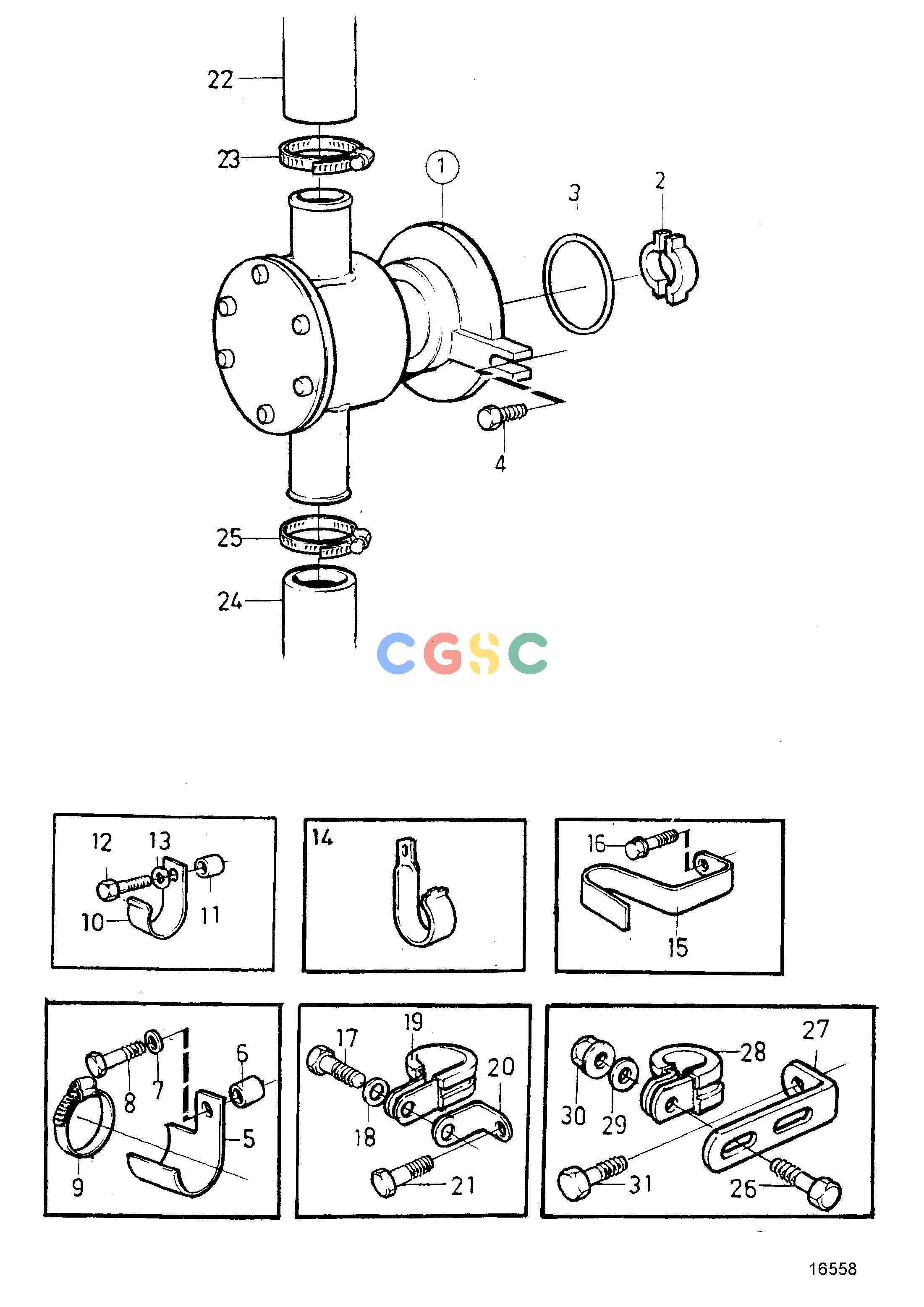

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1ACooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
993 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860629
|
[1] |
Sea water pump
|
Repl by 3581558
|
| 1. |
|
|
|
|
| 1. |
3581558
|
[1] |
Sea water pump
|
|
| 2. |
858467
|
[1] |
Companion flange
|
|
| 3. |
968971
|
[1] |
O-ring
|
|
| 4. |
946173
|
[2] |
Flange screw
|
|
| 5. |
3580758
|
[1] |
Bracket
|
|
| 6. |
843075
|
[1] |
Spacer sleeve
|
|
| 7. |
955894
|
[1] |
Washer
|
|
| 8. |
945444
|
[1] |
Flange screw
|
|
| 9. |
961669
|
[1] |
Hose clamp
|
|
| 10. |
857045
|
[1] |
Attaching clamp
|
|
| 11. |
843075
|
[1] |
Spacer sleeve, inlet
|
L=16mm
|
| 12. |
946671
|
[1] |
Flange screw
|
L=30mm
|
| 13. |
955894
|
[1] |
Washer
|
|
| 14. |
834974
|
[1] |
Bracket
|
|
| 15. |
861387
|
[1] |
Bracket
|
|
| 16. |
947760
|
[1] |
Flange screw
|
|
| 17. |
968855
|
[1] |
Flange screw
|
|
| 18. |
955893
|
[1] |
Washer
|
|
| 19. |
952640
|
[1] |
Clamp
|
|
| 20. |
846780
|
[1] |
Bracket
|
|
| 21. |
965181
|
[1] |
Flange screw
|
|
| 22. |
860997
|
[1] |
Hose
|
Sea water pump-oil cooler.
|
| 23. |
994561
|
[1] |
Hose clamp
|
|
| 24. |
861738
|
[1] |
Hose
|
Reverse gear-Sea water pump.
|
| 25. |
961669
|
[2] |
Hose clamp
|
|
| 26. |
946544
|
[1] |
Flange screw
|
|
| 27. |
965558
|
[1] |
Bracket
|
|
| 28. |
952640
|
[1] |
Clamp
|
|
| 29. |
955893
|
[1] |
Washer
|
|
| 30. |
949278
|
[1] |
Flange lock nut
|
|
| 31. |
947760
|
[1] |
Flange screw
|
|
