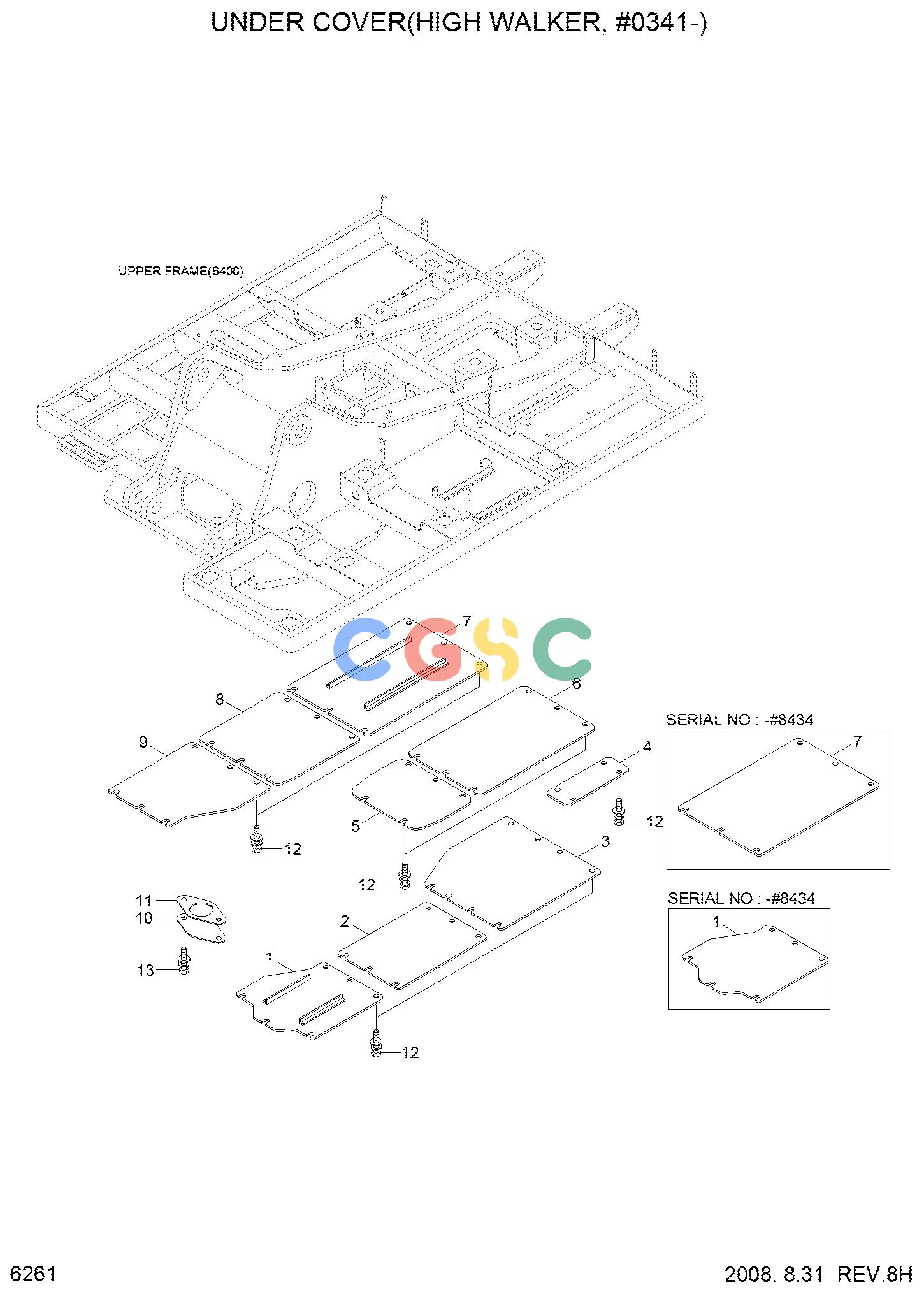

现代零件查询R210LC-7 UNDER COVER(HIGH WALKER, #0341-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
UNDER COVER
|
|
| 1. |
41N6-10210
|
[1] |
UNDER COVER-CAB(A)
|
|
| 1. |
41N6-10211
|
[1] |
UNDER COVER-CAB(A)
|
|
| 1. |
41N6-10211BG
|
[1] |
UNDER COVER-CAB(A)
|
|
| 1. |
41N6-10212BG
|
[1] |
UNDER COVER-CAB(A)
|
|
| 2. |
41N6-10220
|
[1] |
UNDER COVER-CAB(B)
|
|
| 2. |
41N6-10220BG
|
[1] |
UNDER COVER-CAB(B)
|
|
| 3. |
41N6-11030
|
[1] |
UNDER COVER-CAB(C)
|
|
| 3. |
41N6-11030BG
|
[1] |
UNDER COVER-CAB(C)
|
|
| 4. |
41N6-11040
|
[1] |
UNDER COVER-RAD
|
|
| 4. |
41N6-11040BG
|
[1] |
UNDER COVER-RAD
|
|
| 5. |
41N6-10051
|
[1] |
UNDER COVER-MCV
|
|
| 5. |
41N6-10051BG
|
[1] |
UNDER COVER-MCV
|
|
| 6. |
41N6-10061
|
[1] |
UNDER COVER-ENGINE
|
|
| 6. |
41N6-10061BG
|
[1] |
UNDER COVER-ENGINE
|
|
| 7. |
41N6-10071
|
[1] |
UNDER COVER-PUMP
|
|
| 7. |
41N6-10071BG
|
[1] |
UNDER COVER-PUMP
|
|
| 7. |
41N6-10072BG
|
[1] |
UNDER COVER-PUMP
|
|
| 8. |
41N6-10081
|
[1] |
UNDER COVER-H/TANK
|
|
| 8. |
41N6-10081BG
|
[1] |
UNDER COVER-H/TANK
|
|
| 9. |
41N6-10290
|
[1] |
UNDER COVER-F/TANK
|
|
| 9. |
41N6-10290BG
|
[1] |
UNDER COVER-F/TANK
|
|
| 10. |
41N6-10100
|
[1] |
UNDER COVER
|
|
| 11. |
41E9-1306
|
[1] |
SEAL
|
|
| 12. |
S037-102562
|
[49] |
BOLT-W/WASHER
|
|
| 13. |
S037-102052
|
[2] |
BOLT-W/WASHER
|
|
