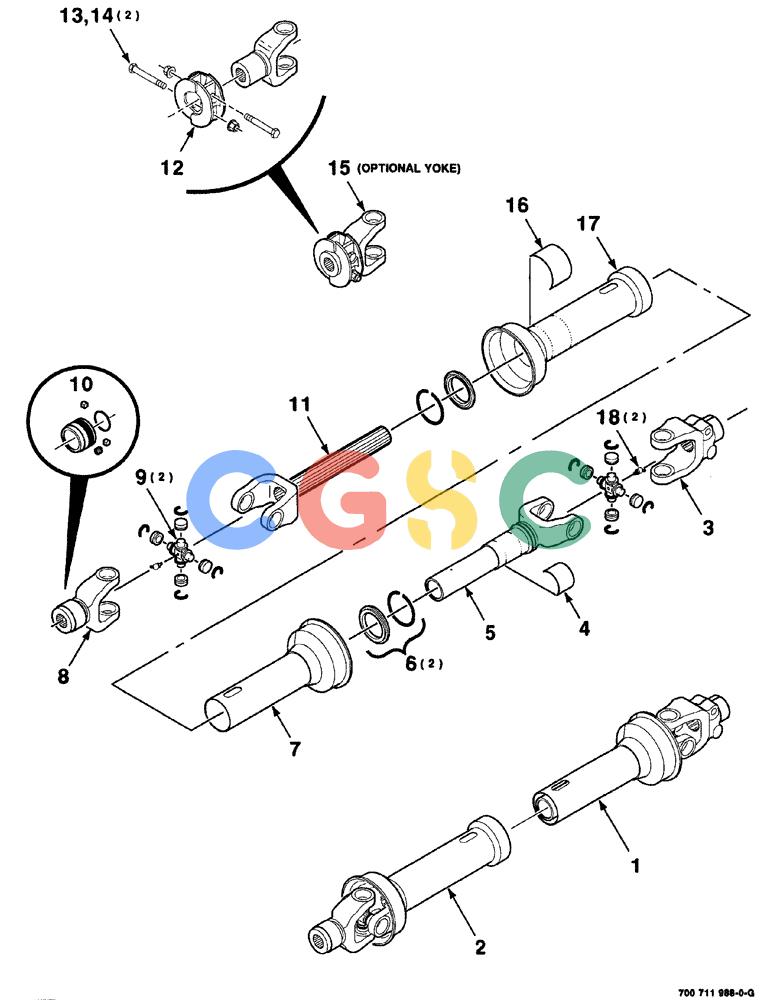

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (02-008) - DRIVELINE-IMPLEMENT ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700712443
|
[1] |
REAR PTO ASSY
|
CAS
JOINT slip, half, female
|
| 2. |
700712444
|
[1] |
PTO
|
CAS
POWER TAKE OFF JOINT slip, tractor half
|
| 3. |
700712517
|
[1] |
YOKE
|
CAS
YOKE splined, clamp
|
| 4. |
1326528C1
|
[1] |
DECAL
|
IH
DANGER shield missing Superseded by part number: 849472
|
| 5. |
700712445
|
[1] |
YOKE
|
CAS
YOKE AND TUBE
|
| 6. |
700712579
|
[2] |
BEARING ASSY
|
CAS
KIT AND RETAINER Superseded by part number: 86505713
|
| 7. |
700712446
|
[1] |
SHIELD
|
CAS
inner
|
| 8. |
8802548
|
[1] |
FORK
|
CAS
YOKE QD Superseded by part number: 86505711
|
| 9. |
470077R91
|
[2] |
BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"
|
IH
KIT, cross and bearing, Includes: Ref. 18 Superseded by part number:
|
| 10. |
700720122
|
[1] |
REPAIR KIT
|
CAS
S S L, YOKE, repair Superseded by part number: 86534533
|
| 11. |
700706966
|
[1] |
YOKE
|
CAS
YOKE shaft
|
| 12. |
700712475
|
[1] |
CLAMP
|
CAS
CLAMP ASSEMBLY YOKE, Includes: Refs. 13 and 14 Superseded by part number: 86621507
|
| 13. |
326-848
|
[2] |
BOLT,Hex, 1/2" - 13 x 3", Gr 8
|
CAS
|
| 14. |
230-4118
|
[2] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2-13 HTLN GR/B
|
| 15. |
700712474
|
[1] |
YOKE
|
CAS
YOKE ASSEMBLY, clamp, 1-3/8-21, spline optional, Includes: Refs. 12, 13 and 14
|
| 16. |
80672C1
|
[1] |
DECAL
|
IH
DANGER, Rotating Driveline Superseded by part number: 849471
|
| 17. |
700712447
|
[1] |
SHIELD
|
CAS
outer
|
| 18. |
219-40
|
[2] |
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
|
CAS
ZERK Superseded by part number: 80711
|
