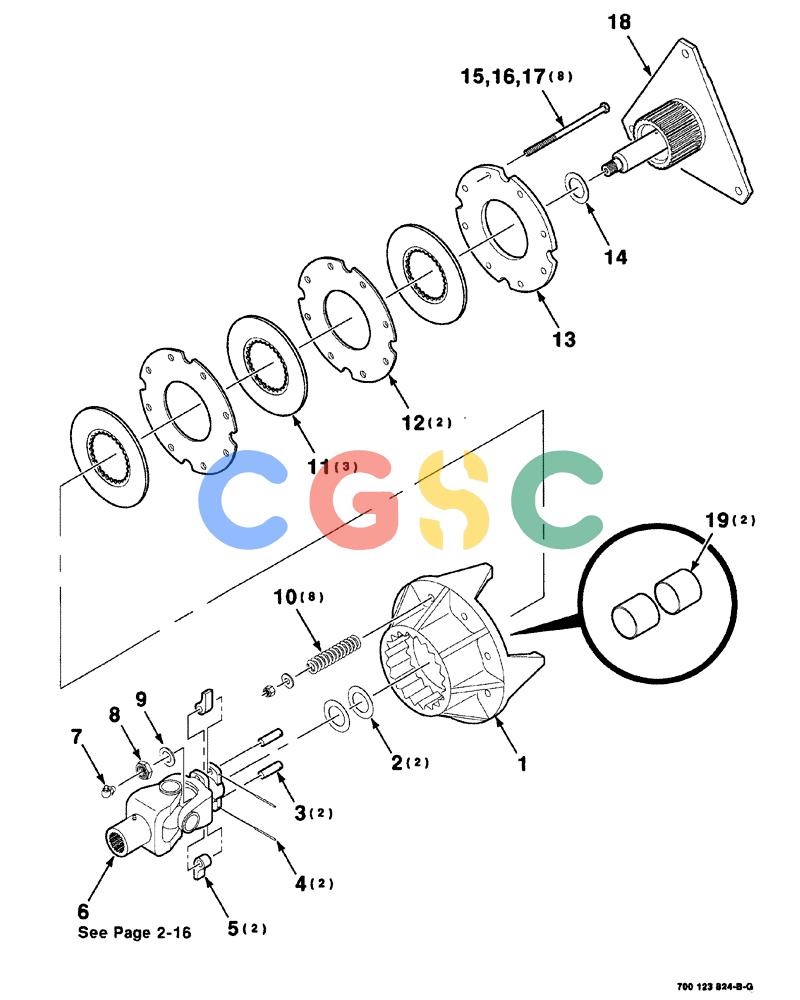

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (02-012) - FLYWHEEL CLUTCH ASSEMBLY, S.N. CFH0117743 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
726 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113034
|
[1] |
CLUTCH HOUSING
|
CAS
Includes: Ref. 19 Superseded by part number: 700164637
|
| 2. |
6522932
|
[2] |
SHIM
|
CAS
CLUTCH
|
| 3. |
700113037
|
[2] |
PIN
|
CAS
PAWL
|
| 4. |
138-100
|
[2] |
LOCK PIN,3/16" x 1 1/2", Slotted
|
CAS
Superseded by part number: 87020817
|
| 5. |
700113036
|
[2] |
PAWL
|
CAS
PAWL
|
| 6. |
700716904
|
[1] |
JOINT
|
CAS
U ASSEMBLY
|
| 7. |
219-36
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
|
CAS
Superseded by part number: 80717
|
| 8. |
131-73
|
[1] |
NUT,3/4"-16
|
CAS
3/4-16 LHSN
|
| 9. |
95-81182
|
[1] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 x 14 gauge NRMB
|
| 10. |
858019
|
[8] |
SPRING
|
IH
compression
|
| 11. |
700108820
|
[3] |
DISC
|
CAS
DISC ASSEMBLY FRICTION
|
| 12. |
700112903
|
[2] |
CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk
|
CAS
|
| 13. |
6522866
|
[1] |
CLUTCH PLATE
|
CAS
|
| 14. |
195-2139
|
[1] |
WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk
|
IH
1-3/8 x 14 gauge NRMB
|
| 15. |
700707998
|
[8] |
SCREW,Hex, 3/8" - 16 x 7", Gr 5
|
CAS
B special, 3/8-16 x 7
|
| 16. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 17. |
231-1406
|
[8] |
LOCK NUT,3/8"-16, GB
|
CAS
|
| 18. |
700123825
|
[1] |
PLATE
|
CAS
PILOT WA clutch
|
| 19. |
7852114
|
[2] |
BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L
|
CAS
bronze
|
