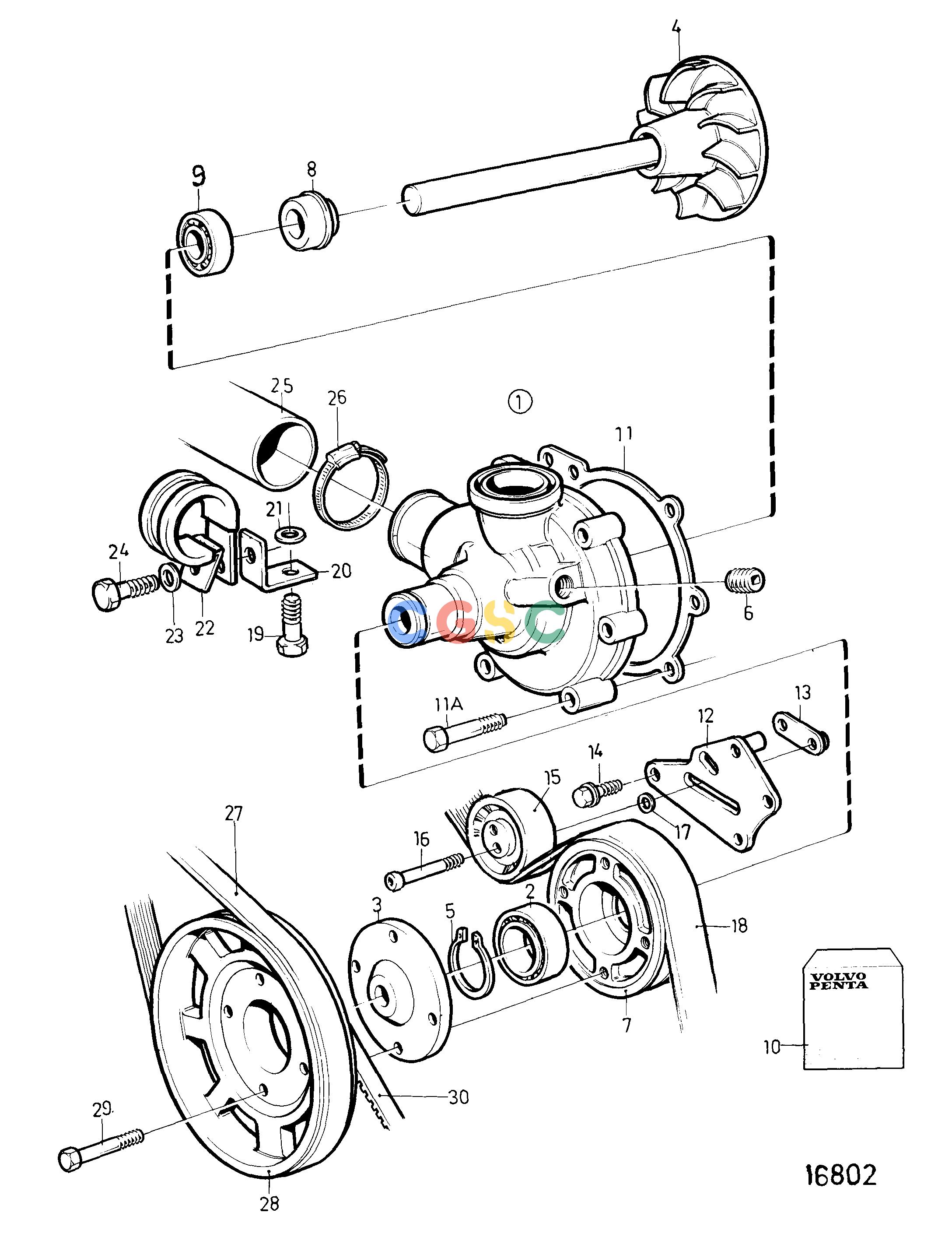

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1ACooling SystemWater PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
444 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580784
|
[1] |
Water pump
|
|
| 2. |
181538
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 3. |
860455
|
[1] |
Hub
|
|
| 4. |
|
|
|
Included in overhaul kit.
|
| 5. |
914462
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 6. |
479977
|
[1] |
Plug
|
|
| 7. |
861541
|
[1] |
Pulley
|
For multi-V-belt.
|
| 8. |
1676432
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 9. |
1660609
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 10. |
876794
|
[1] |
Repair kit
|
|
| 11. |
859027
|
[1] |
Gasket
|
Included in overhaul kit.
|
| 11A. |
947760
|
[6] |
Flange screw
|
|
| 12. |
861560
|
[1] |
Bracket
|
|
| 13. |
861652
|
[1] |
Lock washer
|
|
| 14. |
946441
|
[1] |
Flange screw
|
|
| 15. |
861563
|
[1] |
Tension pulley
|
|
| 16. |
959245
|
[1] |
Hex. socket screw
|
|
| 17. |
960144
|
[1] |
Washer
|
|
| 18. |
861564
|
[1] |
Drive belt
|
|
| 19. |
|
|
|
See group 22
|
| 20. |
846780
|
[1] |
Bracket
|
|
| 21. |
955894
|
[1] |
Washer
|
|
| 22. |
952635
|
[1] |
Clamp
|
|
| 23. |
955893
|
[1] |
Washer
|
|
| 24. |
968855
|
[1] |
Flange screw
|
|
| 25. |
861112
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump., For earlier version of expansion tank.
|
| 25. |
3581099
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump., For later version of expansion tank.
|
| 26. |
943478
|
[1] |
Hose clamp
|
|
| 27. |
860388
|
[1] |
Drive belt
|
|
| 28. |
860454
|
[1] |
Pulley
|
|
| 29. |
947760
|
[4] |
Flange screw
|
|
| 30. |
977542
|
[1] |
V-belt
|
|
