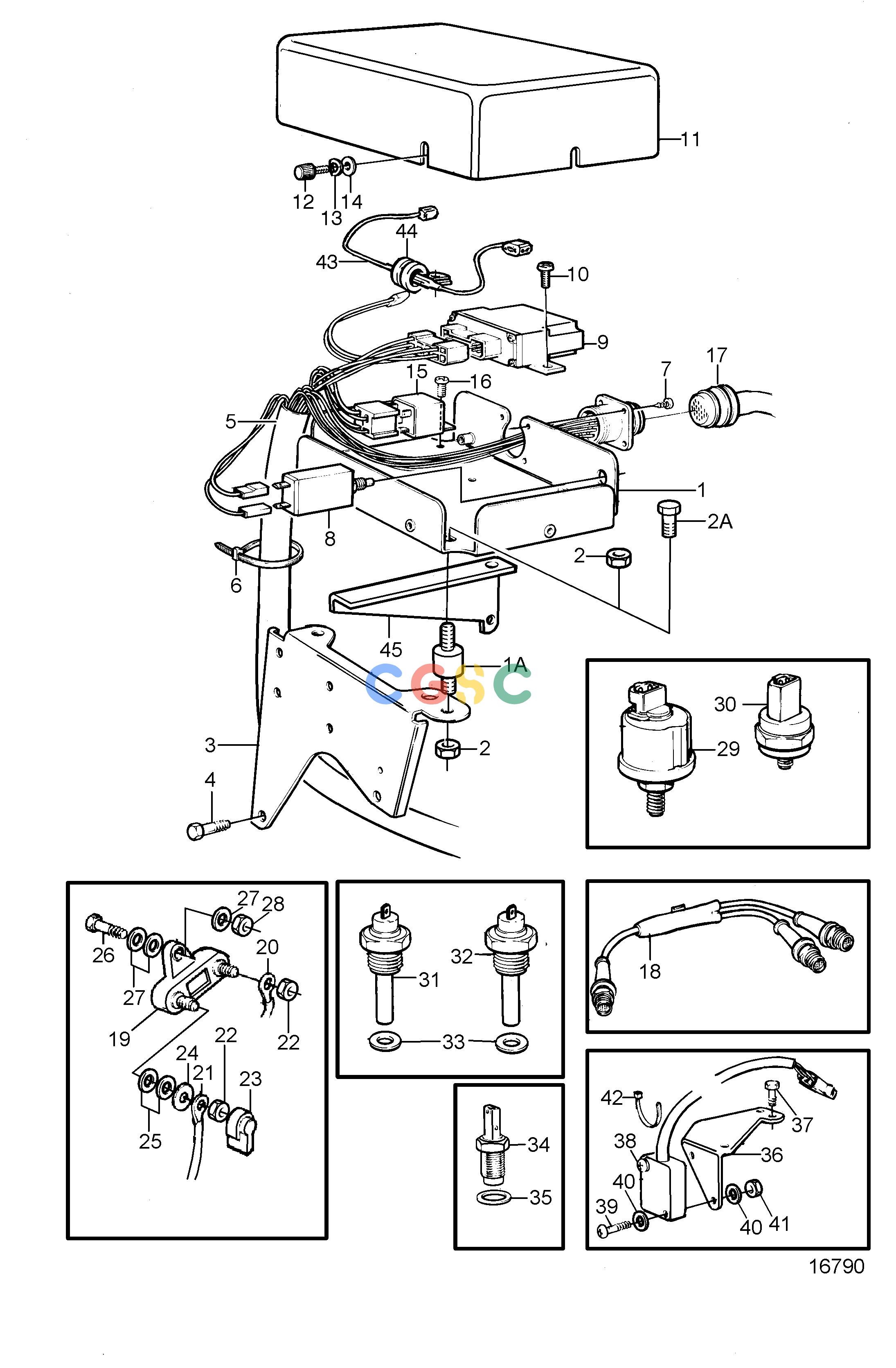

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AElectrical SystemElectrical System: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860417
|
[1] |
Bracket
|
Repl by 3581402
|
| 1. |
3581402
|
[1] |
Bracket
|
|
| 1A. |
1348141
|
[3] |
Absorber
|
For 3581402
|
| 2. |
945407
|
[6] |
Flange nut
|
|
| 2A. |
968855
|
[2] |
Flange screw
|
For 3580668
|
| 3. |
3580668
|
[1] |
Bracket
|
Repl by 3581530
|
| 3. |
3581530
|
[1] |
Bracket
|
|
| 4. |
947760
|
[1] |
Flange screw
|
L=40mm
|
| 4. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 5. |
873551
|
[1] |
Wiring harness
|
SN-2204215630
|
| 5. |
873742
|
[1] |
Wiring harness
|
SN2204215631-
|
| 6. |
948211
|
[1] |
Cable tie
|
|
| 7. |
955119
|
[4] |
Cross recessed screw
|
|
| 8. |
966689
|
[1] |
Fuse
|
|
| 9. |
872616
|
[1] |
Rotation speed relay
|
|
| 10. |
968476
|
[2] |
Flange screw
|
|
| 11. |
860779
|
[1] |
Cover
|
|
| 12. |
846736
|
[3] |
Lock screw
|
|
| 13. |
941904
|
[3] |
Spring washer
|
|
| 14. |
960137
|
[3] |
Washer
|
|
| 15. |
860339
|
[1] |
Relay
|
12V 50A, SN-2204215630
|
| 15. |
873740
|
[1] |
Relay
|
12V 40A, SN2204215631-
|
| 16. |
968476
|
[1] |
Flange screw
|
|
| 17. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 17. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 17. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 18. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 29. |
866835
|
[1] |
Sensor, oil-engine
|
0-10BAR
|
| 29. |
866836
|
[1] |
Sensor, oil-engine
|
For double steering positions., Alt, 0-10bar
|
| 30. |
863169
|
[1] |
Pressure monitor, oil-pressure
|
0,7bar
|
| 31. |
873066
|
[1] |
Thermo monitor, coolant temp.
|
97°C
|
| 32. |
827151
|
[1] |
Temperature sensor, coolant temp.
|
40-120°C
|
| 32. |
840074
|
[1] |
Temperature sensor, coolant temp.
|
For double instruments., Alt, 120°C
|
| 33. |
947624
|
[2] |
Gasket
|
|
| 34. |
862251
|
[1] |
Tachometer sensor
|
For revolution relay.
|
| 35. |
947624
|
[1] |
Gasket
|
|
| 36. |
860970
|
[1] |
Bracket
|
|
| 37. |
946544
|
[2] |
Flange screw
|
|
| 38. |
872597
|
[1] |
Position sensor
|
|
| 39. |
956050
|
[2] |
Cross recessed screw
|
|
| 40. |
955890
|
[4] |
Washer
|
|
| 41. |
966650
|
[2] |
Lock nut
|
|
| 42. |
948211
|
[1] |
Cable tie
|
|
| 43. |
873717
|
[1] |
Resistor
|
Late type
|
| 44. |
952627
|
[1] |
Clamp
|
|
| 45. |
3581444
|
[1] |
Bracket
|
For 3581402
|
