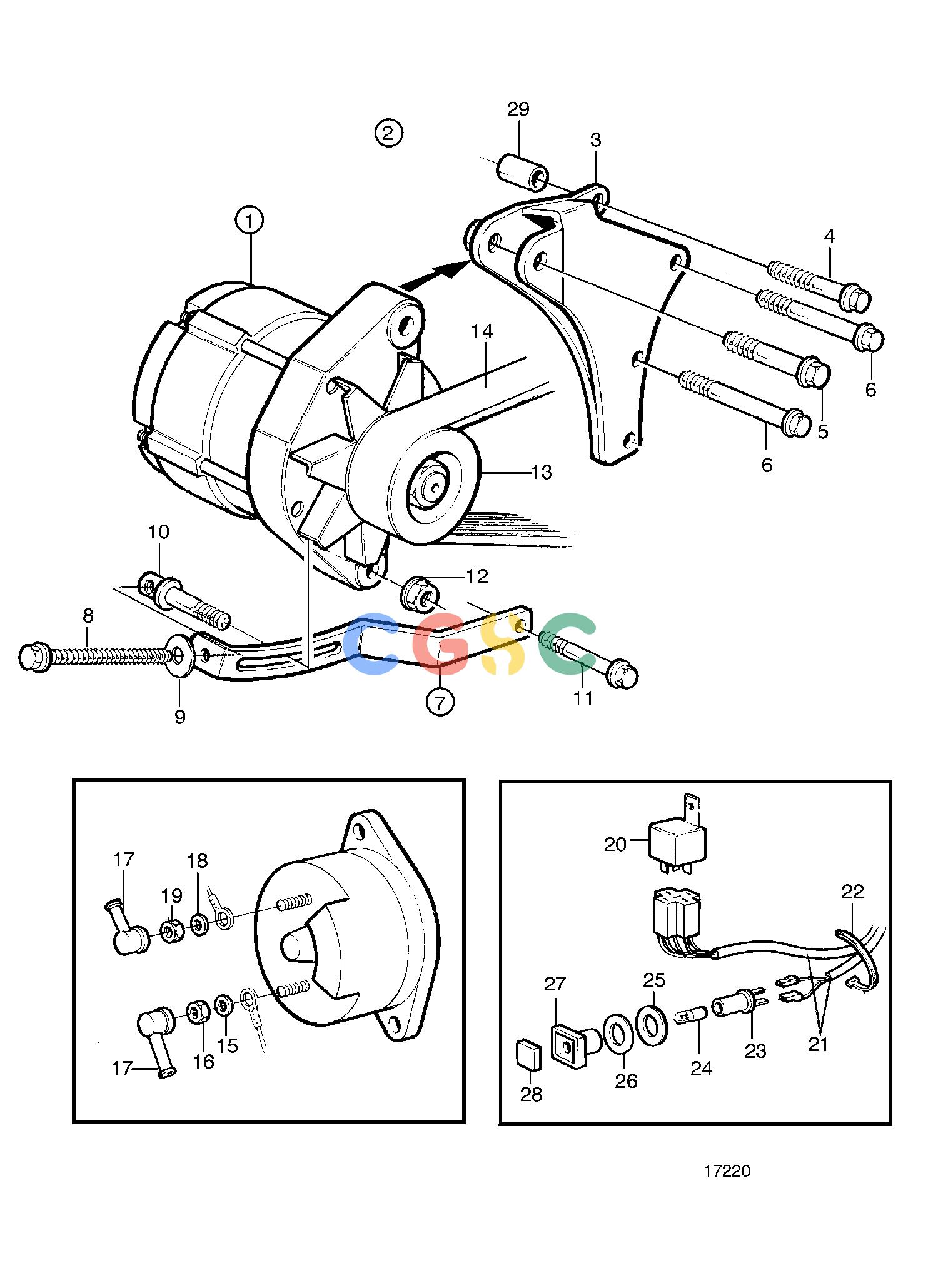

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872235
|
[1] |
Alternator
|
Not included in kit., 14V 60A
|
| 1. |
3803260
|
[1] |
Alternator, exch
|
Not included in kit., 14V 60A
|
| 1. |
|
|
|
|
| 1. |
872927
|
[1] |
Alternator
|
Not included in kit., 28V 40A
|
| 1. |
3803619
|
[1] |
Alternator, exch
|
Not included in kit., 28V 40A
|
| 2. |
3581630
|
[1] |
Alternator kit
|
For engines with a multi-V belt driven water pump.
|
| 3. |
860271
|
[1] |
Bracket
|
|
| 4. |
965179
|
[1] |
Flange screw
|
L=50mm
|
| 5. |
955554
|
[1] |
Hexagon screw
|
L=76mm
|
| 6. |
965182
|
[2] |
Flange screw
|
L=80mm
|
| 7. |
861667
|
[1] |
Tensioning arm
|
|
| 8. |
977820
|
[1] |
Hexagon screw
|
|
| 9. |
955894
|
[1] |
Washer
|
|
| 10. |
861663
|
[1] |
Flange screw
|
|
| 11. |
965183
|
[1] |
Flange screw
|
|
| 12. |
945408
|
[1] |
Flange nut
|
|
| 13. |
861544
|
[1] |
Pulley
|
|
| 14. |
861566
|
[1] |
Drive belt, multi-V
|
|
| 15. |
941906
|
[1] |
Spring washer
|
|
| 16. |
945407
|
[1] |
Flange nut
|
|
| 17. |
842150
|
[2] |
Protective cap
|
|
| 18. |
941905
|
[1] |
Spring washer
|
|
| 19. |
965483
|
[1] |
Flange nut
|
|
| 20. |
872300
|
[1] |
Relay
|
(853545) 12V 30A
|
| 21. |
838542
|
[1] |
Cable block
|
|
| 22. |
948211
|
[1] |
Cable tie
|
|
| 23. |
808175
|
[1] |
Bulb socket
|
|
| 24. |
19923
|
[1] |
Bulb
|
12V 2W
|
| 24. |
182059
|
[1] |
Bulb
|
28V 3W
|
| 25. |
967583
|
[1] |
Retainer
|
|
| 26. |
829714
|
[1] |
Sealing ring
|
|
| 27. |
838455
|
[1] |
Retainer
|
|
| 28. |
838457
|
[1] |
Symbol strip
|
|
| 29. |
843075
|
[1] |
Spacer sleeve
|
|
