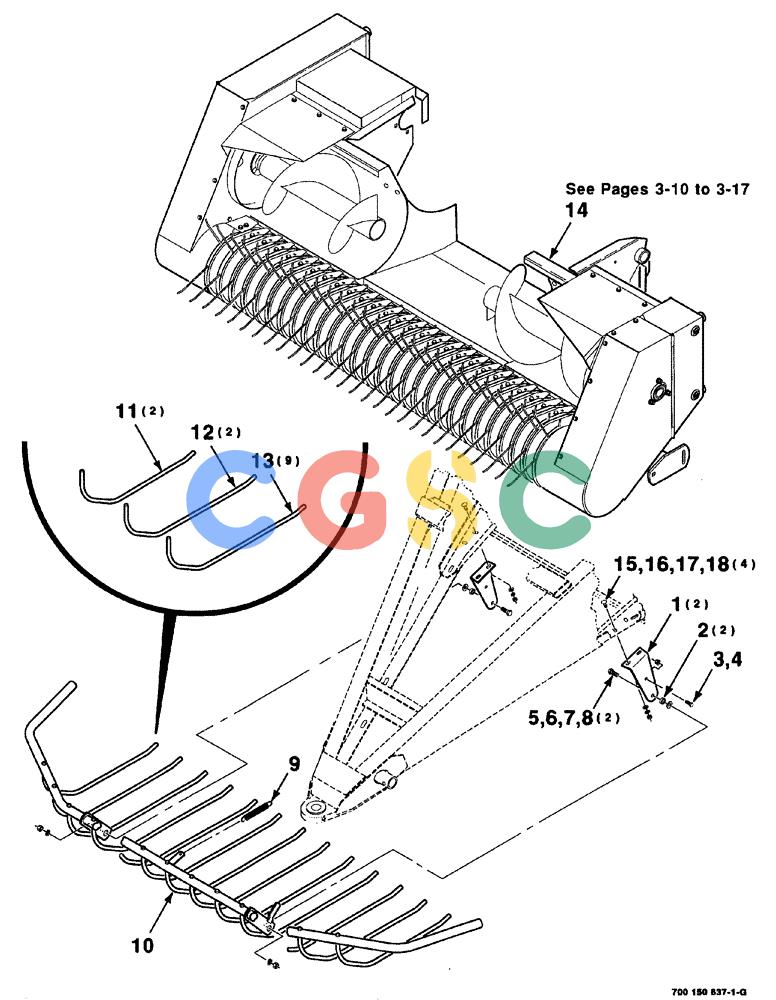

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (03-002) - PICKUP (COMPLETE) AND WINDGUARD ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123787
|
[2] |
SUPPORT
|
CAS
|
| 2. |
700708272
|
[2] |
BUSHING
|
CAS
SPACER
|
| 3. |
413-612
|
[1] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187204, 86500692
|
| 4. |
231-4116
|
[1] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 5. |
413-824
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 6. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2
|
| 7. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 8. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 9. |
758441
|
[1] |
SPRING
|
IH
extension
|
| 10. |
700123777
|
[1] |
GUARD
|
CAS
WA, Includes: Ref. 11,12 and 13
|
| 11. |
700123782
|
[2] |
ROD
|
HFI
outer
|
| 12. |
700123781
|
[2] |
ROD
|
HFI
|
| 13. |
700123780
|
[9] |
ROD
|
HFI
496-11041
|
| 14. |
700150600
|
[1] |
ASSEMBLY
|
HFI
PICKUP
|
| 15. |
433-620
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 16. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain, 3/8 Superseded by part number: 86632588
|
| 17. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 18. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
