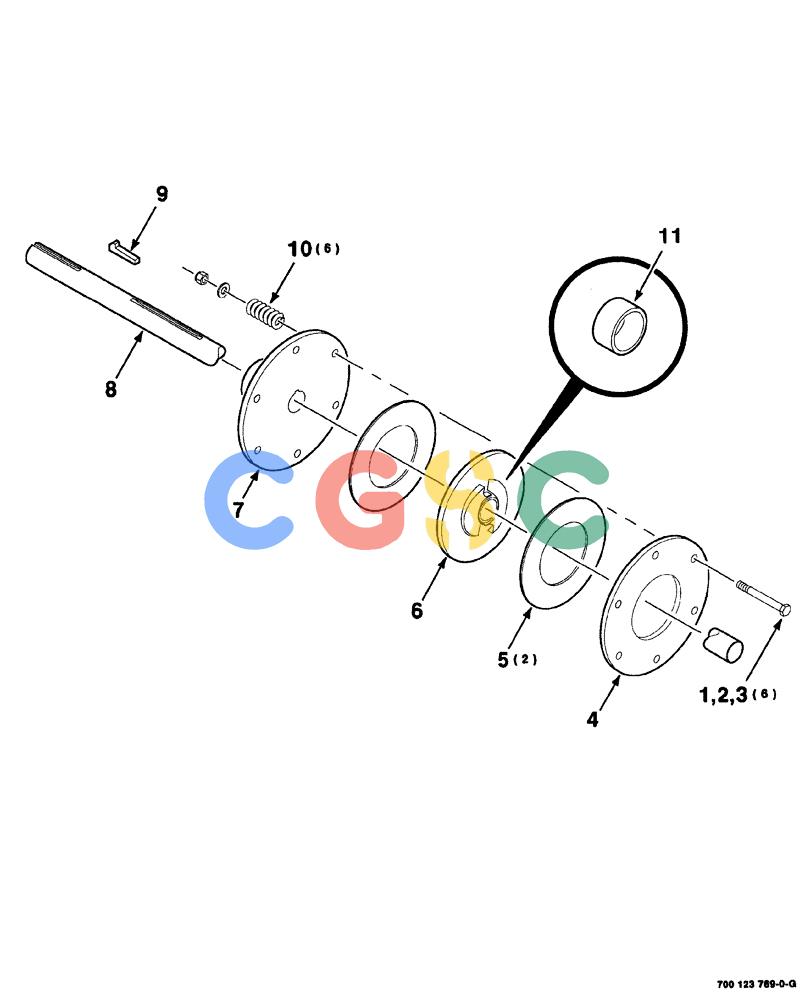

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (03-014) - PICKUP SLIP CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-652
|
[6] |
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
|
CAS
Superseded by part number: 9637240
|
| 2. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
231-1406
|
[6] |
LOCK NUT,3/8"-16, GB
|
CAS
|
| 4. |
392464
|
[1] |
LARGE PLATE
|
CAS
PLATE, LARGE pressure
|
| 5. |
700711025
|
[2] |
CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk
|
CAS
friction
|
| 6. |
700108665
|
[1] |
CLUTCH ASSEMBLY
|
CAS
Includes: Ref. 11
|
| 7. |
700108661
|
[1] |
PLATE
|
CAS
WA CLUTCH
|
| 8. |
700123770
|
[1] |
SHAFT
|
CAS
|
| 9. |
Q3914
|
[1] |
KEY,Gib, 1/4" Sq x 1 1/2"
|
IH
gib, 1/4 x 1-1/2
|
| 10. |
58107
|
[6] |
SPRING
|
IH
compression
|
| 11. |
852749
|
[1] |
BRONZE BUSHING
|
CAS
bronze
|
