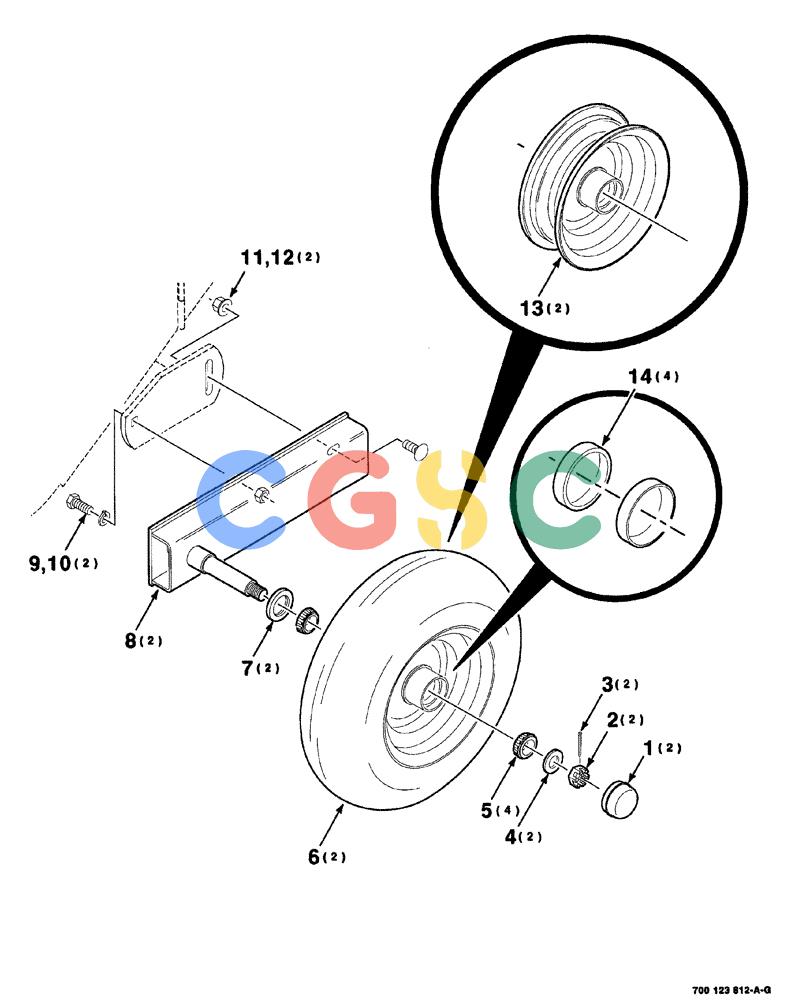

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (03-018) - PICKUP GAUGE WHEEL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T27814
|
[2] |
CAP
|
CAS
hub Superseded by part number: 200734
|
| 2. |
425-1312
|
[2] |
SLOTTED NUT,3/4"-16, G5
|
CAS
hex, 3/4-16 Superseded by part number: 88886
|
| 3. |
432-824
|
[2] |
COTTER PIN,1/8" x 1 1/2"
|
CAS
Superseded by part number: 80708
|
| 4. |
705566
|
[2] |
WASHER
|
IH
hardened plain, 3/4
|
| 5. |
D29266
|
[4] |
ROLLER BEARING,1" ID x 0.58"
|
CAS
Superseded by part number: 132710
|
| 6. |
700708049
|
[2] |
WHEEL
|
CAS
TIRE ASSEMBLY, Includes: Ref. 13 and 14 Superseded by part number: 132709, 132709, 25447, 132709, 25447, 86616348
|
| 7. |
474094R91
|
[2] |
OIL SEAL
|
IH
|
| 8. |
700123995
|
[2] |
STRUT
|
CAS
WA WHEEL
|
| 9. |
413-820
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 10. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 11. |
433-824
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
Superseded by part number: 280420, 72187237
|
| 12. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 13. |
700708048
|
[2] |
WHEEL ASSY
|
CAS
WHEEL ASSEMBLY, Includes: Ref. 14 Superseded by part number: 86616348
|
| 14. |
572564R1
|
[4] |
BEARING CUP
|
IH
cup Superseded by part number: 132709
|
