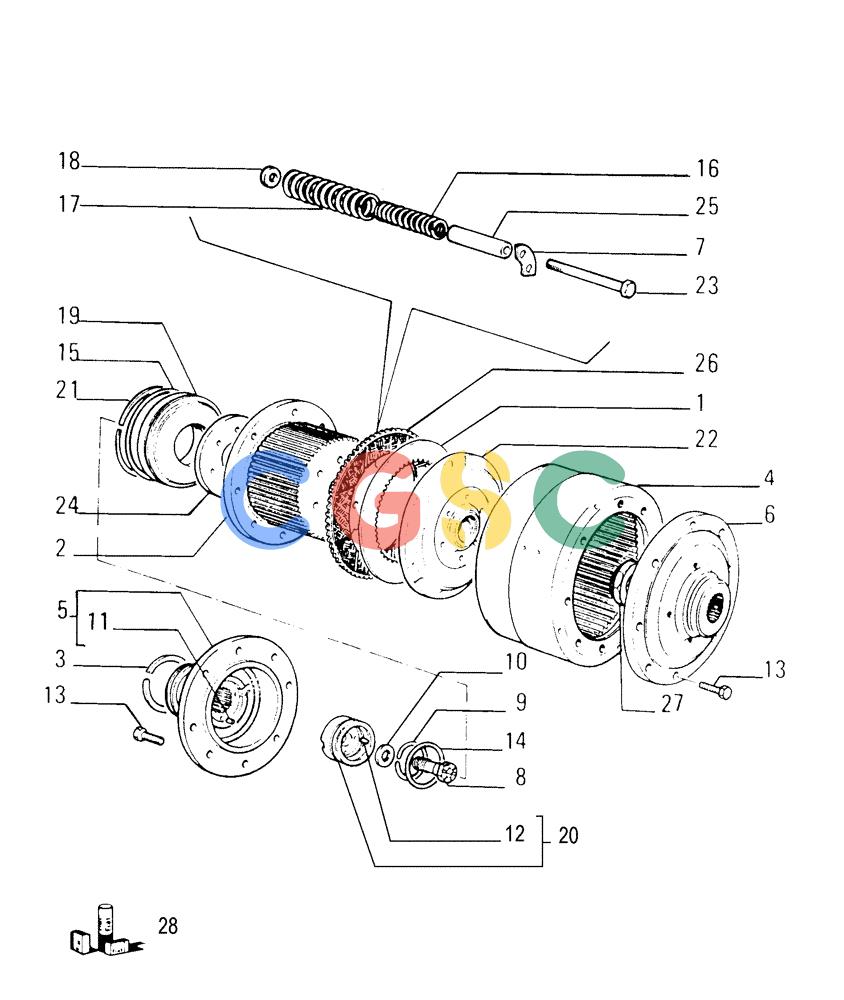

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[06]) - STEERING CLUTCHES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 14687 | [32] | CLUTCH DRIVING PLATE | NNA |
| 2. | 586491 | [2] | HOUSING | LEC |
| 3. | 79061087 | [6] | RING,99.5mm ID x 110.35mm OD x 3.07mm Thk | LEC |
| 4. | 586537 | [2] | HOUSING | LEC |
| 5. | 586614 | [2] | HUB | LEC- ASSY Superseded by part number: 93012974 |
| 6. | 586741 | [2] | HUB | LEC Superseded by part number: 93201698 |
| 7. | 586750 | [2] | LOCKING PLATE | LEC |
| 8. | 586751 | [2] | SCREW | LEC |
| 9. | 590390 | [2] | SNAP RING | LEC |
| 10. | 590389 | [2] | COVER PLATE | LEC |
| 11. | 10336210 | [1] | DOWEL,M6 x 20 | MKT6X20 |
| 12. | 10839510 | [1] | DOWEL,M6 x 9 | TTF Superseded by part number: 17275310 |
| 13. | 14257834 | [32] | BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9, Full Thd | LEC |
| 14. | 14465481 | [2] | O-RING,3.234" ID x 3.512" OD x 0.139" | LEC(M82.14 ID x 3.53 Thk) |
| 15. | 14467781 | [2] | O-RING,0.139" Thk x 6.234" ID, -259, Cl 7, 75 Duro | LEC(M158.3 ID x 3.53 Thk) Superseded by part number: 70925787 |
| 16. | 79006765 | [12] | SPRING | LEC |
| 17. | 79006766 | [12] | SPRING | LEC |
| 18. | 79012948 | [12] | WASHER | LEC |
| 19. | 79035722 | [2] | PISTON | LEC |
| 20. | 79035724 | [2] | GUIDE | LEC- ASSY |
| 21. | 79035725 | [2] | RING,163.7mm ID x 170.06mm OD x 6mm Thk | LEC |
| 22. | 79035726 | [2] | RING | LEC |
| 23. | 79035727 | [12] | PROP | LEC |
| 24. | 79035728 | [2] | RING | LEC |
| 25. | 79035729 | [12] | SPACER | LEC |
| 26. | 79077633 | [30] | DISC,212.7mm ID x 305.54mm OD x 4.5mm Thk | LEC |
| 27. | 590394 | [2] | NUT | LEC |
| 28. | 93201698 | [1] | KIT | LEC- HUB - GEAR |
| 28. | 93012974 | [1] | KIT | LEC- SHAFT - HUB |
