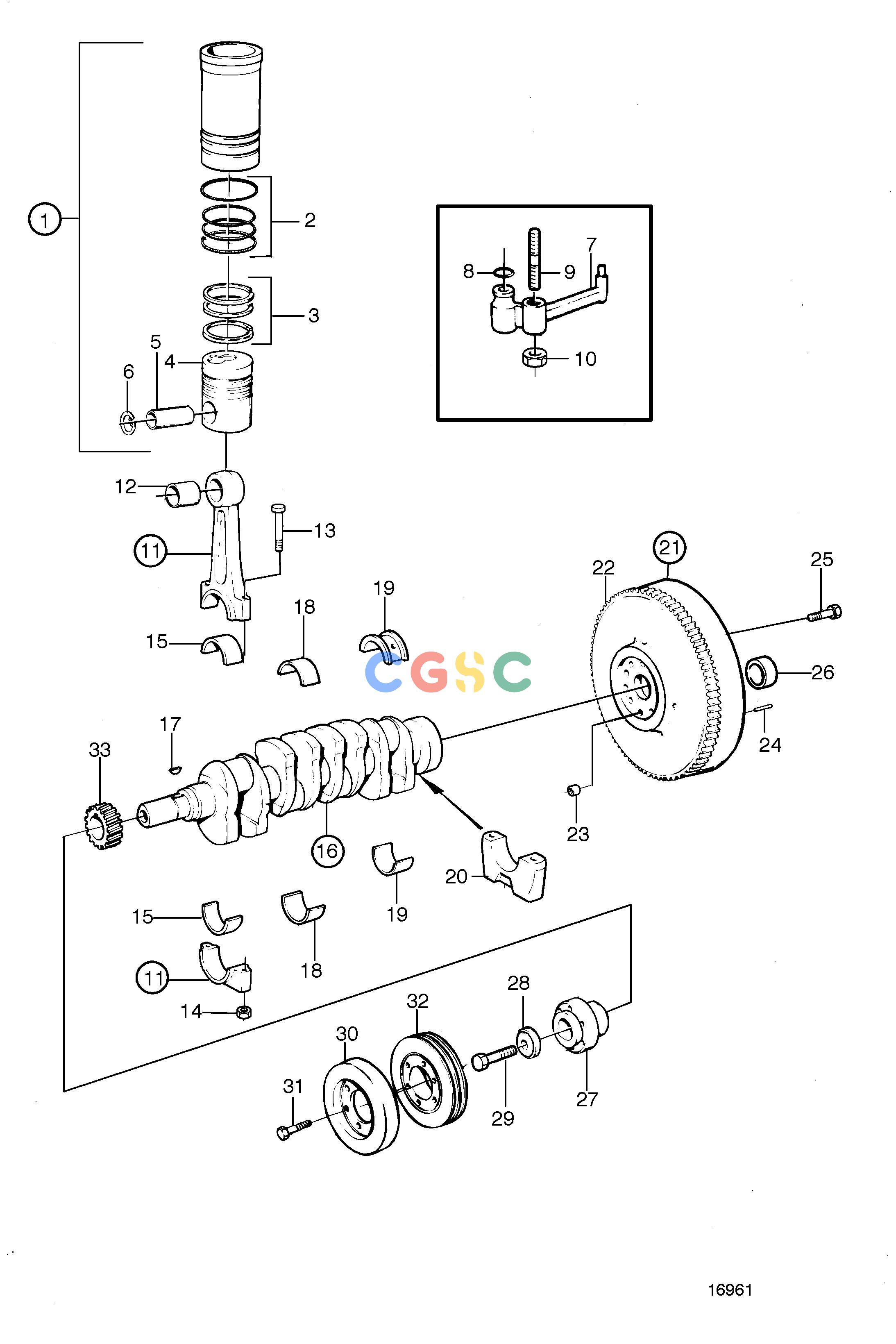

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AEngineCrank Mechanism: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
485 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581714
|
[6] |
Cylinder liner kit
|
(876851)
|
| 2. |
275751
|
[6] |
Sealing ring kit
|
|
| 3. |
876528
|
[6] |
Piston ring kit
|
|
| 4. |
|
|
|
|
| 5. |
422793
|
[6] |
Gudgeon pin
|
|
| 6. |
914519
|
[12] |
Snap ring
|
|
| 7. |
1542320
|
[6] |
Oil jet
|
|
| 8. |
955981
|
[6] |
O-ring
|
|
| 9. |
1542380
|
[6] |
Stud
|
|
| 10. |
946035
|
[6] |
Lock nut
|
|
| 11. |
3581063
|
[6] |
Connecting rod
|
(860381)
|
| 12. |
|
|
|
|
| 13. |
1542077
|
[12] |
Connecting rod bolt
|
|
| 14. |
1542078
|
[12] |
Nut
|
|
| 15. |
876511
|
[6] |
Big-end bearing kit
|
Std
|
| 15. |
876512
|
[6] |
Big-end bearing kit
|
U.S=0,25mm
|
| 15. |
876513
|
[6] |
Big-end bearing kit
|
U.S=0,50mm
|
| 15. |
876514
|
[6] |
Big-end bearing kit
|
U.S=0,75mm
|
| 16. |
860379
|
[1] |
Crankshaft
|
|
| 17. |
910118
|
[1] |
Woodruff key
|
|
| 18. |
876515
|
[6] |
Main bearing kit
|
Std
|
| 18. |
876516
|
[6] |
Main bearing kit
|
U.S=0,25mm
|
| 18. |
876517
|
[6] |
Main bearing kit
|
U.S=0,50mm
|
| 18. |
876518
|
[6] |
Main bearing kit
|
U.S=0,75mm
|
| 19. |
876519
|
[1] |
Thrust bearing
|
Std
|
| 19. |
876520
|
[1] |
Thrust bearing
|
O.S=0,10mm/U.S=0,25mm
|
| 19. |
876521
|
[1] |
Thrust bearing
|
O.S=0,20mm/U.S=0,50mm
|
| 19. |
876522
|
[1] |
Thrust bearing
|
O.S=0,20mm/U.S=0,75mm
|
| 20. |
7734180_001
|
|
Main bearing cap
|
|
| 21. |
861614
|
[1] |
Flywheel
|
SN-2204212194
|
| 21. |
3581169
|
[1] |
Flywheel
|
SN2204212195-
|
| 22. |
829462
|
[1] |
Ring gear
|
|
| 23. |
415311
|
[1] |
Guide sleeve
|
|
| 24. |
191873
|
[3] |
Locating pin
|
|
| 25. |
861671
|
[1] |
Repair kit
|
The kit includes 8 pcs screw., Shall not be used together with bolt plate 1542093.
|
| 26. |
872761
|
[1] |
Bushing
|
|
| 27. |
1542196
|
[1] |
Hub
|
|
| 28. |
420124
|
[1] |
Washer
|
|
| 29. |
470366
|
[1] |
Flange screw
|
(1542149)
|
| 30. |
860944
|
[1] |
Vibration damper
|
|
| 31. |
965179
|
[6] |
Flange screw
|
|
| 32. |
861540
|
[1] |
Pulley
|
|
| 33. |
1542305
|
[1] |
Gear
|
|
