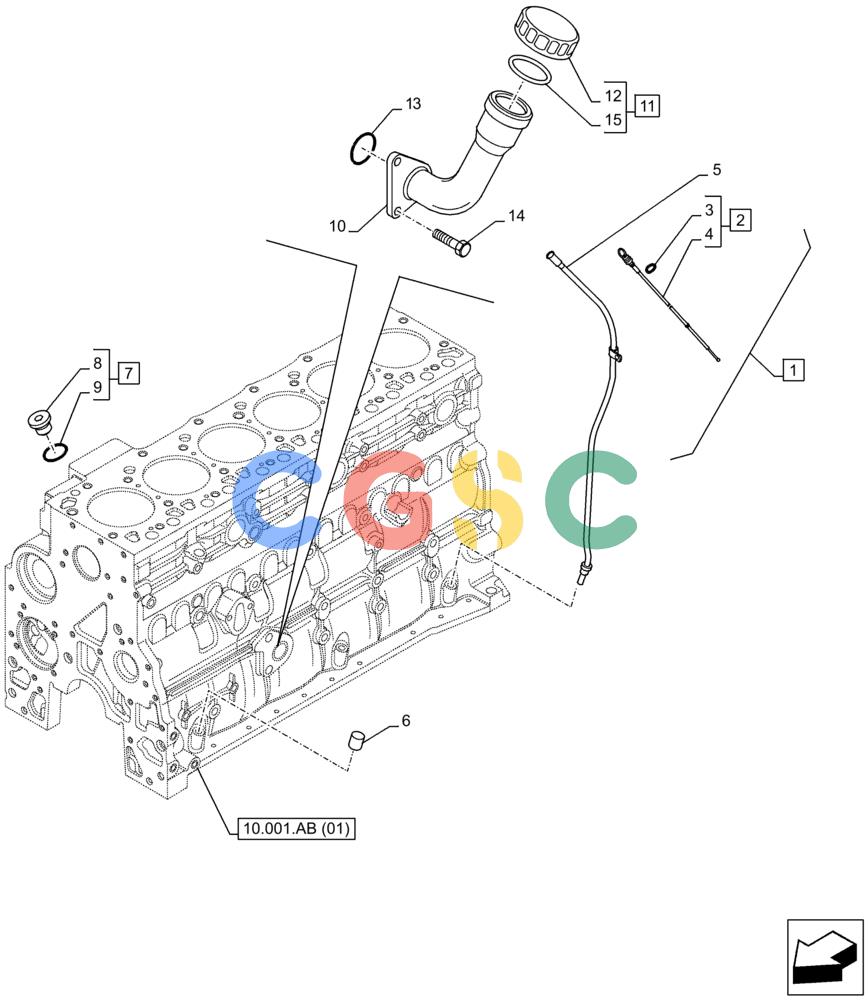

神钢零件查询(F4HFE613F A001) - ENGINE 5801753674 - 47541731 (11/12-) (10.304.AJ) - ENGINE OIL, DIPSTICK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
947 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855212 | [1] | ASSY, Incl 2 - 5 | |
| 3. | 4898502 | [1] | O-RING,0.364" ID x 0.504" OD x 0.07" | LEC Superseded by part number: 17277981 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONHandgrip, Incl in 1 |
| 6. | 4895406 | [3] | EXPANSION PLUG,9.8mm OD | TOR |
| 7. | 4897330 | [2] | HEX SOCKET PLUG,M12 x 1.5 | TORASSY, Incl 6, 7 |
| 9. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONCap, Incl in 1 |
| 14. | 2852134 | [1] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
