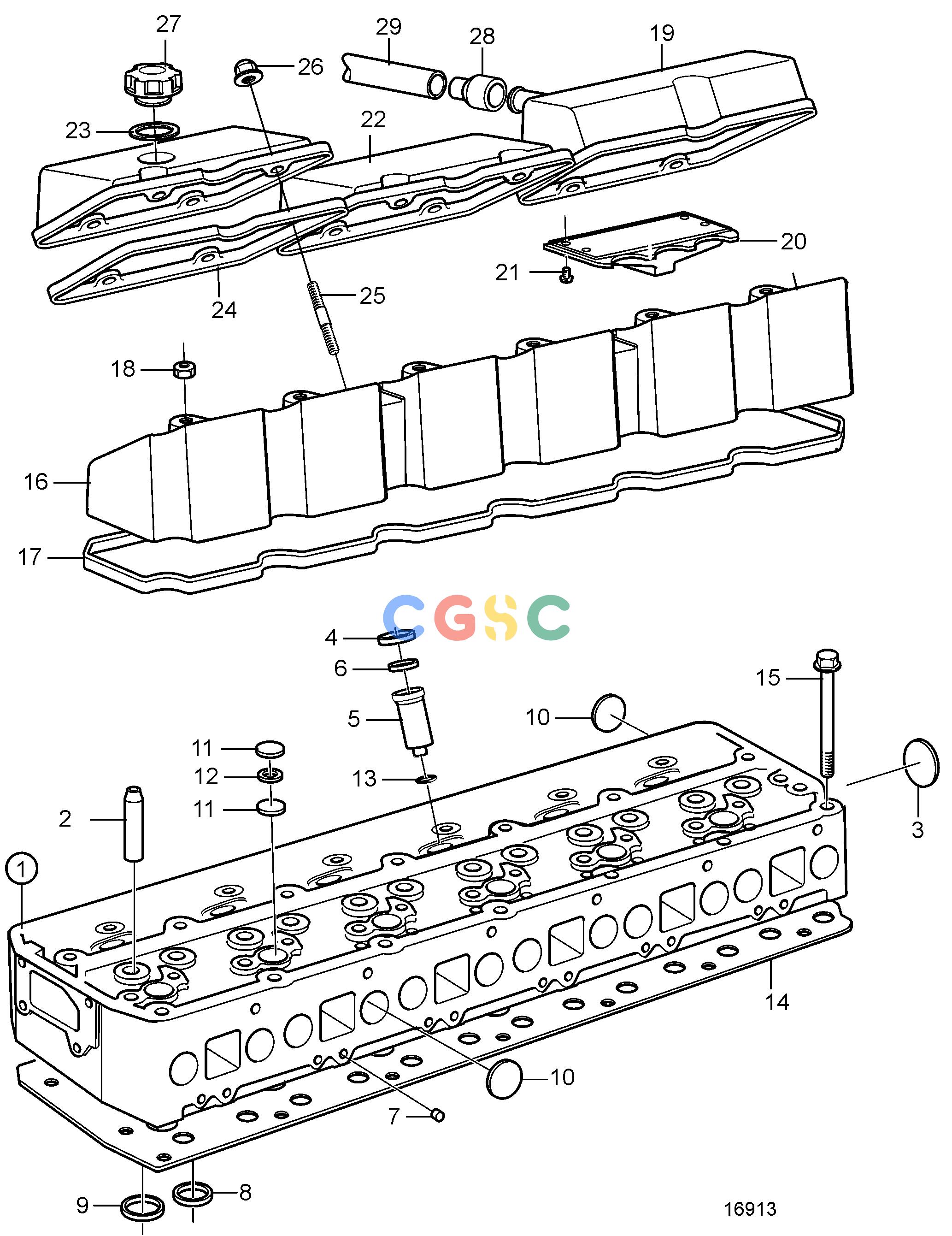

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
251 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803308
|
[1] |
Cylinder head
|
(861300)
|
| 2. |
419653
|
[12] |
Valve guide
|
|
| 3. |
968955
|
[1] |
Expansion plug
|
|
| 4. |
838619
|
[6] |
Retainer
|
|
| 5. |
861255
|
[6] |
Nozzle sleeve
|
SN-2204303627
|
| 5. |
3581536
|
[6] |
Nozzle sleeve
|
SN2204303628-
|
| 6. |
838896
|
[6] |
Sealing ring
|
|
| 7. |
967853
|
[12] |
Cap plug
|
|
| 8. |
858331
|
[6] |
Valve seat
|
Std
|
| 8. |
858332
|
[6] |
Valve seat
|
O.S 0,20mm
|
| 9. |
860035
|
[6] |
Valve seat
|
Std
|
| 9. |
860036
|
[6] |
Valve seat
|
O.S 0,20mm
|
| 10. |
477026
|
[13] |
Expansion plug
|
|
| 11. |
967948
|
[12] |
Expansion plug
|
|
| 12. |
949329
|
[6] |
Gasket
|
|
| 13. |
838821
|
[6] |
O-ring
|
|
| 14. |
3583786
|
[1] |
Cylinder head gasket
|
|
| 15. |
838775
|
[27] |
Flange screw
|
|
| 16. |
838649
|
[1] |
Valve cover
|
|
| 17. |
838653
|
[1] |
Gasket
|
|
| 18. |
945408
|
[4] |
Flange nut
|
|
| 19. |
860541
|
[1] |
Valve cover
|
Replaced by 860542, 860601 & 977771
|
| 19. |
860542
|
[1] |
Valve cover
|
|
| 20. |
860601
|
[1] |
Insert
|
|
| 21. |
977771
|
[4] |
Flange screw
|
|
| 22. |
838650
|
[1] |
Valve cover
|
|
| 23. |
838651
|
[1] |
Valve cover
|
|
| 24. |
838654
|
[3] |
Gasket
|
|
| 25. |
953034
|
[12] |
Stud
|
|
| 26. |
968458
|
[12] |
Flange cap nut
|
L=380mm
|
| 27. |
1275403
|
[1] |
Oil filler cap
|
|
| 27. |
1275379
|
[1] |
Gasket
|
|
| 28. |
861114
|
[1] |
Protecting sleeve
|
L=280mm
|
| 29. |
946234
|
[1] |
Tube
|
L=280mm
|
