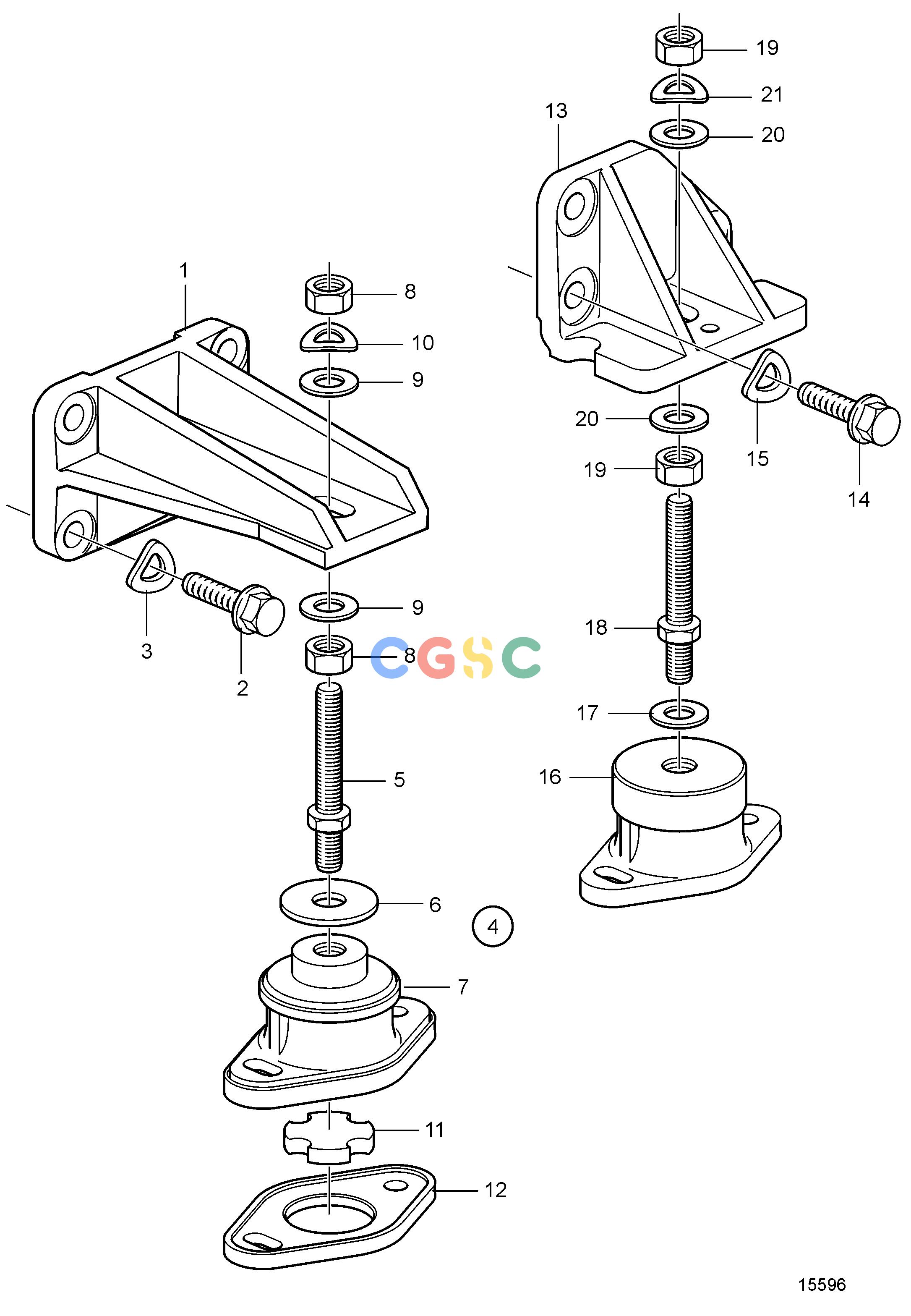

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AEngineEngine Mounting for Jack Shaft InstallationsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580748
|
[2] |
Engine bracket
|
|
| 2. |
965192
|
[7] |
Flange screw
|
L=40mm
|
| 2. |
965193
|
[1] |
Flange screw
|
L=50mm
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
876596
|
[2] |
Rubber element
|
Replaced by 1pc rubber element 843323, 1pc adjusting screw 860950 and 1pc washer 843298.
|
| 5. |
860950
|
[2] |
Adjusting screw
|
|
| 6. |
843298
|
[2] |
Washer
|
|
| 7. |
843323
|
[2] |
Rubber element
|
|
| 8. |
955806
|
[4] |
Hexagon nut
|
|
| 9. |
955901
|
[2] |
Washer
|
D=34mm
|
| 9. |
978991
|
[2] |
Washer
|
D=40mm
|
| 10. |
941913
|
[2] |
Spring washer
|
|
| 11. |
843299
|
[2] |
Rubber disc
|
|
| 12. |
843286
|
[2] |
Pad
|
|
| 13. |
860952
|
[1] |
Engine bracket
|
P
|
| 13. |
860954
|
[1] |
Engine bracket
|
S.B
|
| 14. |
965225
|
[4] |
Flange screw
|
|
| 14. |
965226
|
[2] |
Flange screw
|
|
| 15. |
940280
|
[4] |
Spring washer
|
|
| 15. |
955897
|
[2] |
Washer
|
|
| 16. |
876597
|
[2] |
Rubber element
|
|
| 17. |
955900
|
[2] |
Washer
|
|
| 18. |
860950
|
[2] |
Adjusting screw
|
|
| 19. |
955806
|
[4] |
Hexagon nut
|
|
| 20. |
955901
|
[2] |
Washer
|
D=34mm
|
| 20. |
978991
|
[2] |
Washer
|
D=40mm
|
| 21. |
941913
|
[2] |
Spring washer
|
|
