神钢零件查询(F4HFE613F A001) - ENGINE 5801753674 - 47541731 (11/12-) (55.010.AA) - ENGINE, CABLE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
682 次

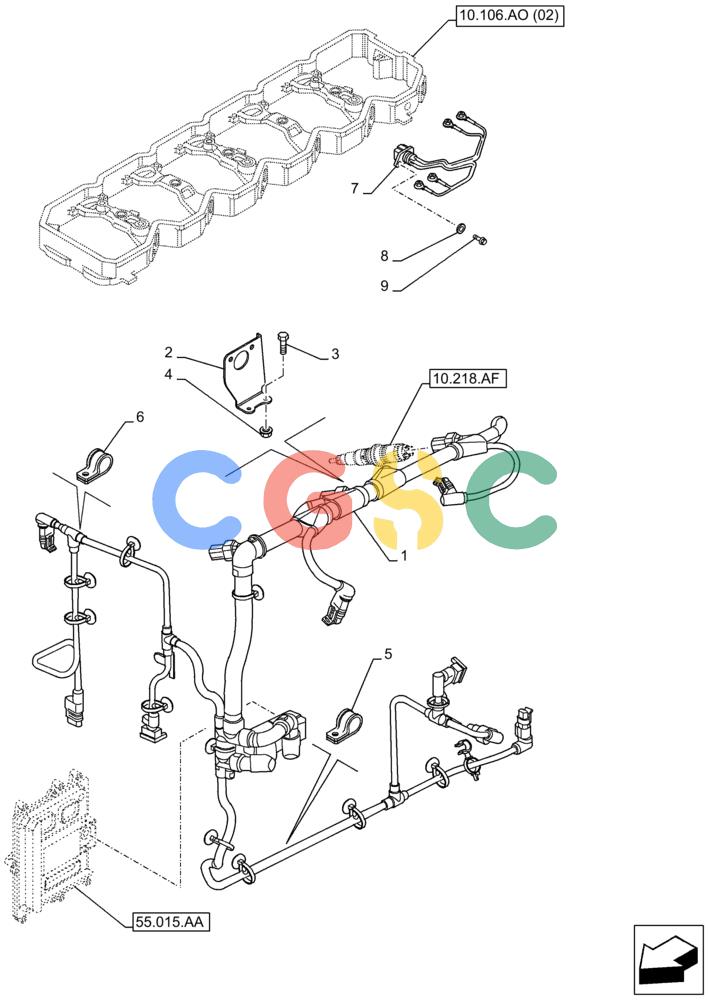

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | 2852484 | [3] | FLANGE NUT,Hex, M6 x 1 | TORM6, D = 26 mm Superseded by part number: 17044625 |
| 5. | 2852500 | [2] | CLAMP | TORM6 x 1 Superseded by part number: |
| 6. | 4899815 | [1] | CLAMP,20mm, Insul, 7mm Bolt | TORM8, D = 12 mm Superseded by part number: 17315390 |
| 7. | 47401109 | [3] | WIRE HARNESS | BRR |
| 8. | 2852776 | [3] | WASHER,6mm ID x 11mm OD | TORM6 x 11 x 1.6 Superseded by part number: 17094614 |
| 9. | 2852602 | [3] | HEX SOC SCREW,M6 x 16mm | SMM6 x 1 x 16 Superseded by part number: 16689121 |
