纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (6.723[01]) - DASHBOARD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
185 次

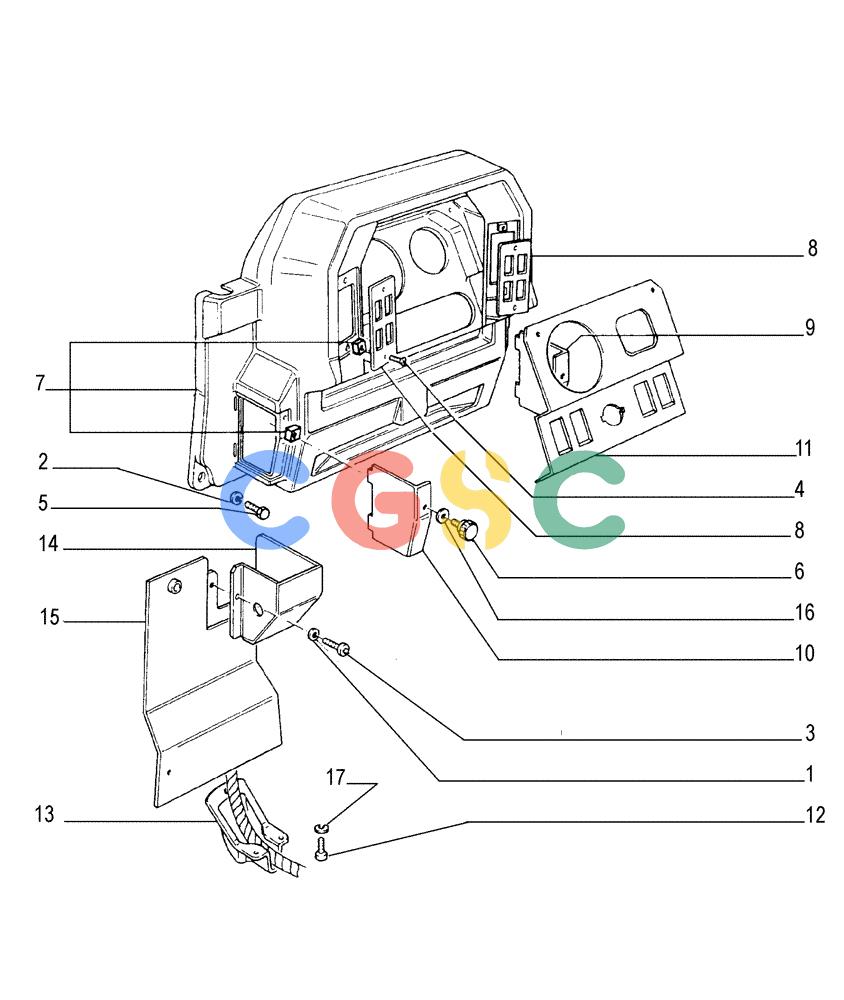

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 12643706 | [8] | WASHER | LEC6,15X18 |
| 2. | 12645031 | [5] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 3. | 13276417 | [8] | SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd | JES Superseded by part number: 86511830 |
| 4. | 13273917 | [8] | SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 5.8, Full Thd | LEC Superseded by part number: 86585709 |
| 5. | 16043431 | [5] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 6. | 76012988 | [2] | KNOB | LEC |
| 7. | 79072526 | [1] | DASH PANEL | LEC- ASSY Superseded by part number: 79104875 |
| 8. | 79102509 | [2] | PLATE | LEC |
| 9. | 79072552 | [1] | COVER | LEC- RIGHT |
| 10. | 79072553 | [1] | COVER | LEC- LEFT |
| 11. | 79102508 | [1] | DASH PANEL | LEC |
| 12. | 10902131 | [3] | SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd | LEC |
| 13. | 79087920 | [1] | GUARD | LEC |
| 14. | 79090008 | [1] | COVER | LEC |
| 15. | 79091336 | [1] | GUARD | LEC |
| 16. | 79087637 | [2] | RING,3.5mm ID x 11mm OD x 2mm Thk | LEC |
| 17. | 14496431 | [3] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
