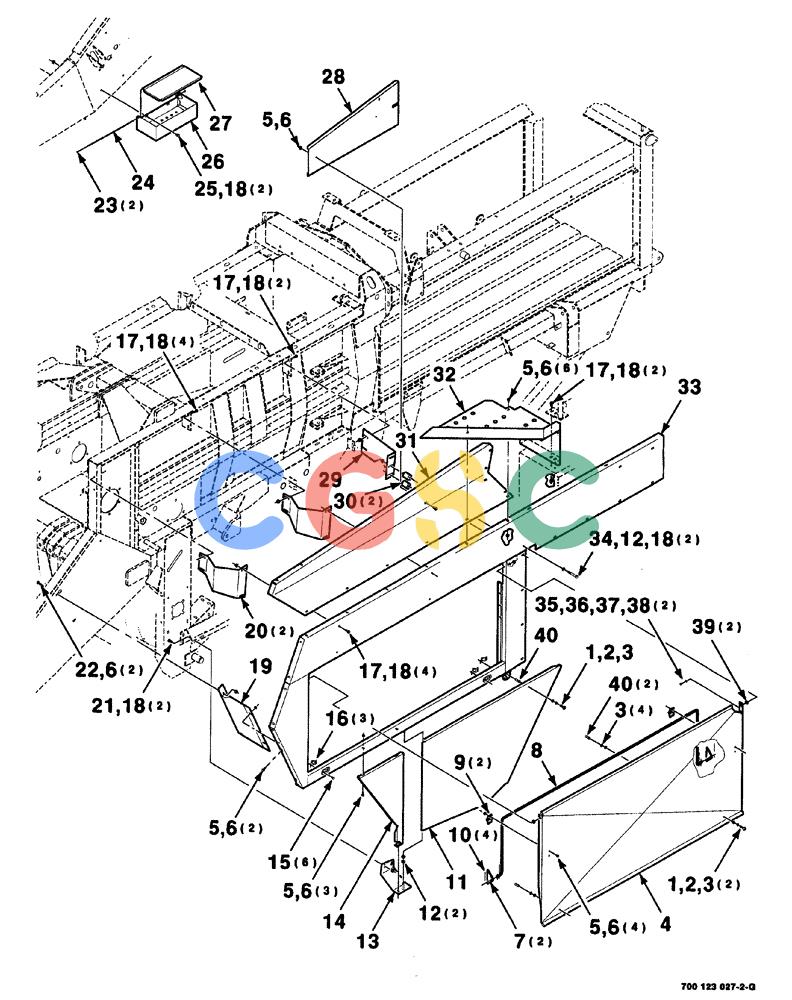

| 1. |
490-1108
|
[3] |
SCREW,Cross Pan Hd, #10-32 x 1/2"
|
CAS
GR2 Superseded by part number: 86625206
|
| 2. |
492-11010
|
[3] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 3. |
495-31022
|
[7] |
WASHER,#10
|
CAS
Superseded by part number: 88612
|
| 4. |
700123958
|
[1] |
SUPPORT
|
CAS
PANEL WA DOOR
|
| 5. |
121-115
|
[16] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 6. |
231-5145
|
[18] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 7. |
700113992
|
[2] |
GUIDE
|
CAS
|
| 8. |
700123960
|
[1] |
ROD
|
CAS
|
| 9. |
700123961
|
[2] |
MOUNTING PARTS
|
CAS
SUPPORT
|
| 10. |
432-812
|
[4] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 11. |
700123952
|
[1] |
SHIELD
|
CAS
lower, left
|
| 12. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain, 3/8 Superseded by part number: 86632588
|
| 13. |
700123205
|
[1] |
SUPPORT
|
CAS
WA left
|
| 14. |
700123947
|
[1] |
SHIELD
|
CAS
lower, left
|
| 15. |
19-1027
|
[6] |
SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"
|
CAS
#8-18 x 1/2 CRTHTFTS
|
| 16. |
1960763C3
|
[3] |
LATCH
|
IH
RECEIVER stud
|
| 17. |
121-226
|
[12] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 18. |
231-5146
|
[18] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 19. |
700123949
|
[1] |
PANEL
|
CAS
SHIELD
|
| 20. |
700123951
|
[2] |
ANGLE
|
CAS
|
| 21. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
| 22. |
111-237
|
[2] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
|
CAS
Superseded by part number: 33-516
|
| 23. |
700707858
|
[2] |
SNAP RING
|
CAS
RING
|
| 24. |
700108570
|
[1] |
ROD
|
CAS
HINGE
|
| 25. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 26. |
700108566
|
[1] |
TOOL BOX
|
CAS
WA, tool
|
| 27. |
700108569
|
[1] |
LID
|
CAS
BOX, tool
|
| 28. |
700129799
|
[1] |
SHIELD
|
CAS
|
| 29. |
700123962
|
[1] |
SUPPORT
|
CAS
|
| 30. |
700123965
|
[2] |
SPACER
|
CAS
|
| 31. |
700152218
|
[1] |
SHIELD
|
HFI
left, top
|
| 32. |
700129793
|
[1] |
PANEL
|
CAS
STEP
|
| 33. |
700123931
|
[1] |
SHIELD
|
CAS
WA left
|
| 34. |
413-640
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| 35. |
413-512
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187196, 87872
|
| 36. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 37. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 38. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 39. |
6514772
|
[2] |
SPACER
|
CAS
|
| 40. |
1960762C1
|
[3] |
STUD
|
IH
latch
|
