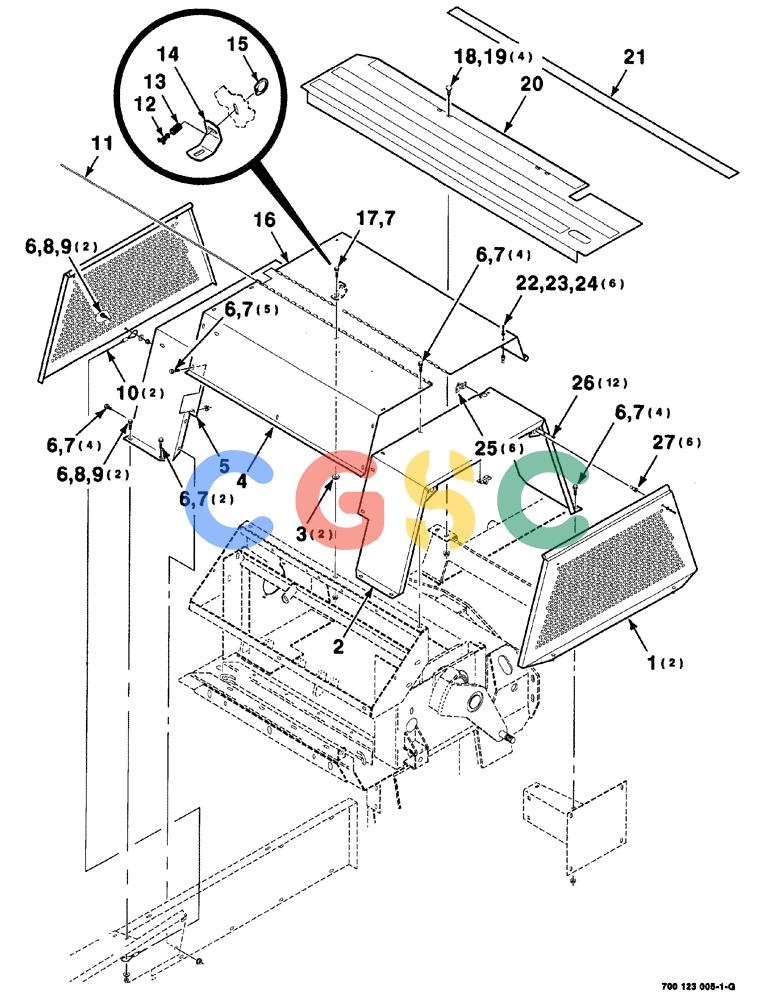

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (07-012) - KNOTTER PLATFORM AND SHIELDS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
855 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123862
|
[2] |
SHIELD
|
CAS
WA end
|
| 2. |
700123472
|
[1] |
FUNNEL
|
CAS
FRAME WA left
|
| 3. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 4. |
700123902
|
[1] |
SHIELD
|
CAS
|
| 5. |
700123473
|
[1] |
FUNNEL
|
CAS
FRAME WA right
|
| 6. |
121-115
|
[23] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 7. |
231-5145
|
[20] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 8. |
495-61034
|
[4] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
wide plain, 5/16
|
| 9. |
232-5315
|
[4] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 10. |
8021693
|
[2] |
CABLE
|
CAS
|
| 11. |
6854301
|
[1] |
PIN
|
CAS
hinge
|
| 12. |
7894975
|
[1] |
CLIP
|
CAS
|
| 13. |
7758212
|
[1] |
SPRING
|
CAS
compression
|
| 14. |
6564595
|
[1] |
STOP
|
CAS
DOOR
|
| 15. |
7894967
|
[1] |
HANDLE
|
CAS
|
| 16. |
700129715
|
[1] |
SHIELD
|
CAS
KNOTTER, top
|
| 17. |
121-108
|
[1] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 x 1 HWHMS
|
| 18. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 19. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 20. |
700123910
|
[1] |
PLATFORM
|
CAS
ASSEMBLY, (Includes Safety Walk)
|
| 21. |
6849178
|
[1] |
WALL
|
CAS
SAFETY WALK, 10 foot
|
| 22. |
490-1108
|
[6] |
SCREW,Cross Pan Hd, #10-32 x 1/2"
|
CAS
GR 50 M Superseded by part number: 86625206
|
| 23. |
492-11010
|
[6] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 24. |
495-31022
|
[6] |
WASHER,#10
|
CAS
Superseded by part number: 88612
|
| 25. |
1960763C3
|
[6] |
LATCH
|
IH
mounting latch
|
| 26. |
19-1027
|
[12] |
SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"
|
CAS
#8-18 x 1/2 CRTHTFTS
|
| 27. |
1960762C1
|
[6] |
STUD
|
IH
latch
|
