纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (3.434[02]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
729 次

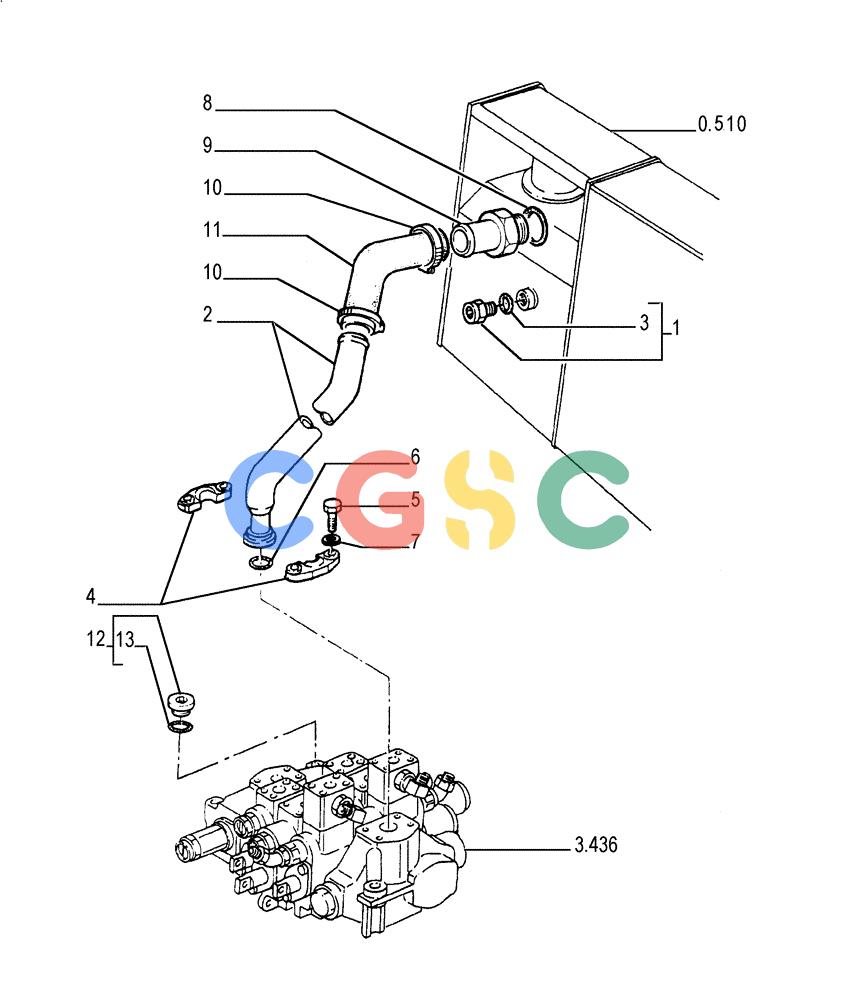

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10119440 | [1] | PLUG,M18 x 1.5 x 16, Brass | LECAssy |
| 2. | 76032254 | [1] | RIGID TUBE,41 mm ID, 45 mm OD, 332, 278 mm Length | LEC |
| 4. | 76033345 | [2] | FLANGE | LEC |
| 5. | 14420231 | [4] | HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC |
| 6. | 70924200 | [1] | O-RING | LEC3,53X32,92 Superseded by part number: 14463780 |
| 7. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 8. | 79080438 | [1] | SEAL,42.9mm ID x 52.5mm OD x 3.4mm Thk | LEC |
| 9. | 79079035 | [1] | BANJO BOLT | LEC |
| 10. | 79083847 | [2] | HOSE CLAMP,M50-70 | LEC |
| 11. | 79086240 | [1] | FLEXIBLE HOSE,45.00 mm ID x 200.00 mm | LEC |
| 12. | 10119040 | [2] | PLUG,M27 x 2 x 20, Brass | LECAssy |
| 13. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES |
| 3. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
