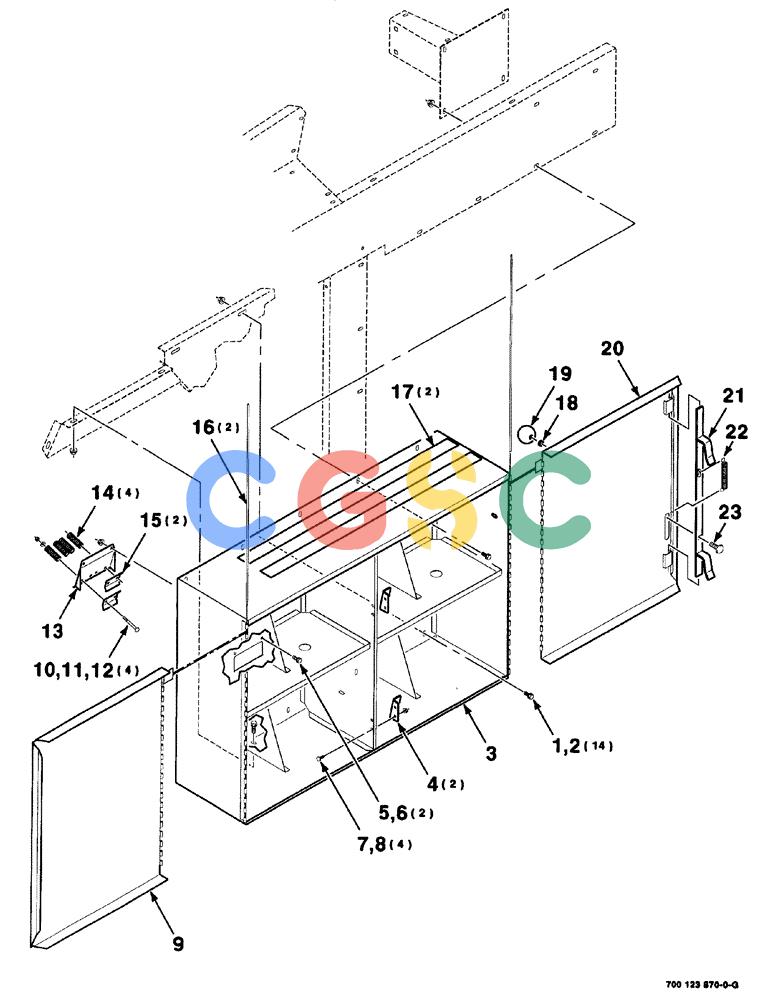

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (07-018) - TWINE BOX ASSEMBLY-LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
409-7612
|
[14] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 2. |
231-5146
|
[14] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
700133166
|
[1] |
TERMINAL BOX
|
CAS
WA twine, left (Includes Reflectors and Safety Tread)
|
| 4. |
700123889
|
[2] |
LATCH
|
CAS
catch
|
| 5. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 6. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 7. |
434-412
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 x 3/4 RHSNB Superseded by part number: 280638
|
| 8. |
231-5144
|
[4] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 9. |
700123866
|
[1] |
DOOR
|
CAS
BOX twine
|
| 10. |
26144R1
|
[4] |
BOLT
|
IH
1/4-20 x 2-1/4 RHSNB Superseded by part number: 280498
|
| 11. |
496-11028
|
[4] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
hardened plain, 1/4 Superseded by part number: 86632587
|
| 12. |
231-1444
|
[4] |
NUT,1/4"-20, GB
|
CAS
Superseded by part number: 86625061
|
| 13. |
700123888
|
[1] |
LARGE PLATE
|
CAS
PLATE, LARGE
|
| 14. |
700707677
|
[4] |
SPRING
|
L
compression
|
| 15. |
700123929
|
[2] |
CLIP
|
CAS
|
| 16. |
65029
|
[2] |
PIN
|
CAS
hinge
|
| 17. |
6849178
|
[2] |
WALL
|
CAS
SAFETY WALK (10 foot bulk)
|
| 18. |
6270854
|
[1] |
SPACER
|
CAS
|
| 19. |
A23885
|
[1] |
KNOB
|
CAS
|
| 20. |
700123865
|
[1] |
DOOR
|
CAS
WA (Includes Decals)
|
| 21. |
700123886
|
[1] |
LATCH
|
CAS
WA
|
| 22. |
58941
|
[1] |
SPRING
|
CAS
extension
|
| 23. |
433-816
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 x 1 RHSNB Superseded by part number: 280486
|
