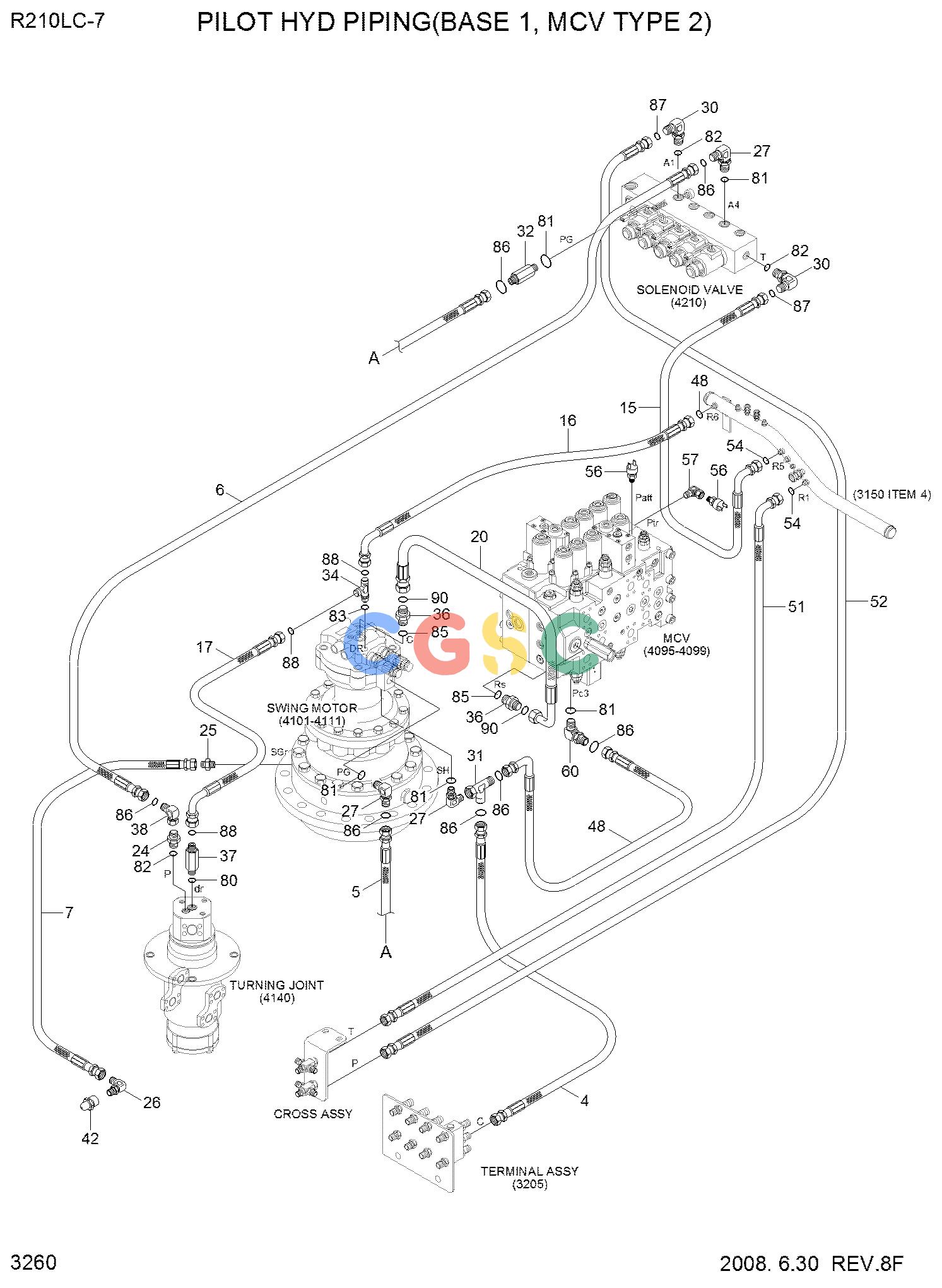

现代零件查询R210LC-7 PILOT HYD PIPING(BASE 1, MCV TYPE 2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
PILOT HYD PIPING
|
|
| 4. |
P910-042032
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 5. |
P910-042052
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 6. |
P910-042056
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 7. |
P400-042022
|
[1] |
HOSE ASSY-COMPACT
|
|
| 15. |
P910-062038
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 16. |
P930-082019
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 17. |
P910-082017
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 20. |
31N8-22180
|
[1] |
HOSE ASSY
|
|
| 24. |
X500-110013
|
[1] |
CONNECTOR-ORFS
|
|
| 25. |
P010-430002
|
[1] |
CONNECTOR
|
|
| 26. |
31NB-50280
|
[1] |
ELBOW-90
|
|
| 27. |
X520-110001
|
[3] |
ELBOW-90,ORFS
|
|
| 30. |
X520-110002
|
[2] |
ELBOW-90,ORFS
|
|
| 31. |
X840-515151
|
[1] |
TEE-R/TYPE,SWIVEL,ORFS
|
|
| 32. |
X511-104514
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 34. |
X820-085353
|
[1] |
TEE-R/TYPE,ORFS
|
|
| 36. |
X500-110005
|
[2] |
CONNECTOR-ORFS
|
|
| 37. |
31N8-40190
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 38. |
X850-515100
|
[1] |
ELBOW-90,SWIVEL,ORFS
|
|
| 42. |
S651-810002
|
[1] |
NIPPLE-GREASE
|
|
| 48. |
P930-042016
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 51. |
P910-062041
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 52. |
P910-062062
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 54. |
S621-012001
|
[2] |
O-RING
|
|
| 56. |
31E5-40500
|
[2] |
SWITCH-PRESSURE
|
|
| 57. |
31E5-11110
|
[1] |
ADAPTER
|
|
| 60. |
X520-110012
|
[1] |
ELBOW-90,ORFS
|
|
| 81. |
S631-011004
|
[5] |
O-RING
|
|
| 82. |
S631-014004
|
[3] |
O-RING
|
|
| 83. |
S631-018004
|
[2] |
O-RING
|
|
| 85. |
S631-029004
|
[2] |
O-RING
|
|
| 86. |
S621-011001
|
[7] |
O-RING
|
|
| 87. |
S621-012001
|
[2] |
O-RING
|
|
| 88. |
S621-014001
|
[3] |
O-RING
|
|
| 90. |
S621-021001
|
[2] |
O-RING
|
|
