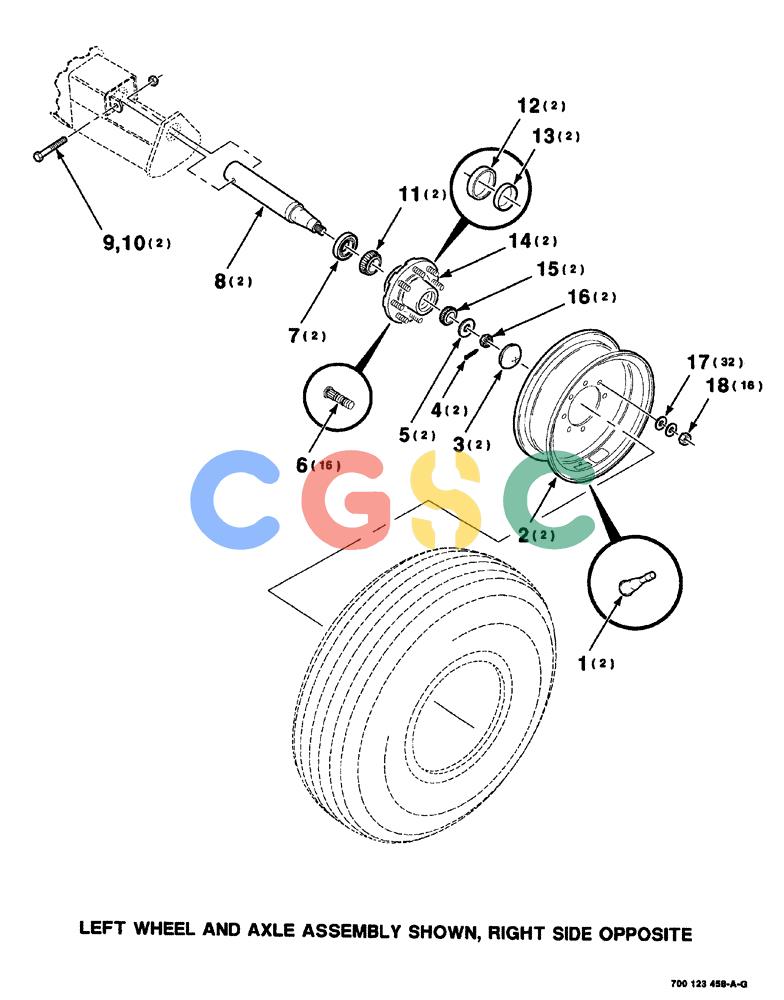

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (07-026) - WHEEL, HUB AND AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
164 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7027469
|
[2] |
VALVE
|
CAS
STEM
|
| 2. |
700715026
|
[2] |
RIM
|
CAS
WHEEL WHEEL 16.1 x W18C
|
| 3. |
826784
|
[2] |
CAP
|
CAS
hub Superseded by part number: 86900188
|
| 4. |
432-1628
|
[2] |
COTTER PIN,1/4" x 1 3/4"
|
CAS
Superseded by part number: 87041
|
| 5. |
700719480
|
[2] |
WASHER
|
HFI
spindle
|
| 6. |
700710568
|
[16] |
BOLT,Rib Nk, 5/8" - 18 x 2 1/4", Gr 5
|
CAS
rib neck, 5/8-18 x 2-1/4
|
| 7. |
A178381
|
[2] |
SEAL
|
CAS
|
| 8. |
700123459
|
[2] |
SPINDLE
|
CAS
SHAFT Superseded by part number: 700163381, 296824A1
|
| 9. |
413-618
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
|
CAS
5/8-11 x 4 C
|
| 10. |
232-41110
|
[2] |
NUT,5/8"-11, GC
|
CAS
5/8-11 HTLN GR/B Superseded by part number: 85700693
|
| 11. |
A61447
|
[2] |
ROLLER BEARING,2.1651" ID x 0.9045" Thk
|
CAS
Superseded by part number: 648861
|
| 12. |
625743C1
|
[2] |
BEARING CUP,90mm OD x 18.5mm W
|
IH
cup
|
| 13. |
663558R1
|
[2] |
BEARING CUP
|
IH
Superseded by part number: 86512015
|
| 14. |
700710569
|
[2] |
HUB
|
CAS
ASSEMBLY, Includes: Ref. 6, 12 and 13
|
| 15. |
663557R91
|
[2] |
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
|
IH
Superseded by part number: 86512015
|
| 16. |
25-1316
|
[2] |
NUT,1"-14, G5
|
CAS
Superseded by part number: 86020752
|
| 17. |
396-21066
|
[32] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 18. |
425-1110
|
[16] |
NUT,5/8"-18, G5
|
CAS
Superseded by part number: 408
|
