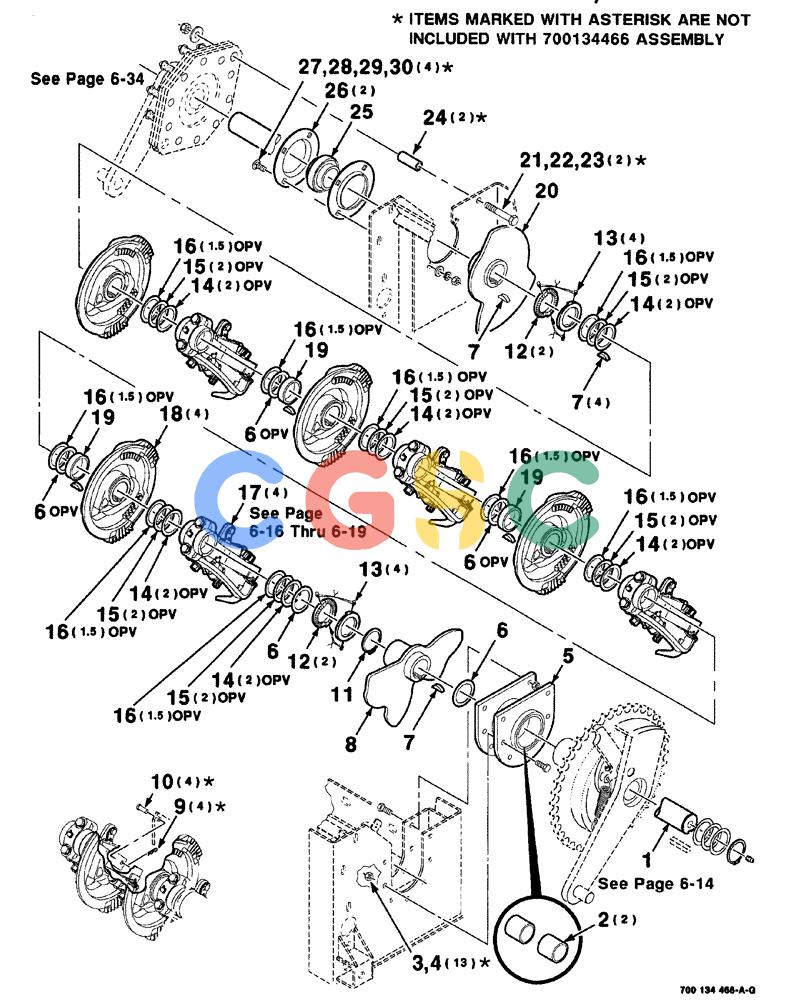

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (06-012) - KNOTTER DRIVE & CAM ASSEMBLY, 700134466 KNOTTER DRIVE & CAM ASSY. COMPLETE, S.N. CFH0117287 & LATER Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (06-012) - KNOTTER DRIVE & CAM ASSEMBLY, 700134466 KNOTTER DRIVE & CAM ASSY. COMPLETE, S.N. CFH0117287 & LATER Case Agriculture

广数供应链运营团队, 15 02月, 2025，浏览： 444 次

Pos.	Part No	Qty	Parts name	Comments
1.	700123342	[1]	SHAFT	CAS knotter
2.	6565014	[2]	BRONZE BUSHING,89.08mm ID x 101.8mm OD x 44.58mm L	CAS bushing
3.	413-820	[13]	BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5	CAS Superseded by part number: 72187215, 87670
4.	230-4218	[13]	LOCK NUT,1/2"-13, GA	CAS
5.	6844773	[1]	ASSEMBLY	CAS ASSEMBLY, Includes: Ref. 2
6.	6523500	[5]	WASHER	CAS
7.	126-40	[6]	WOODRUFF KEY,#G, 3/8" x 1 1/2"	CAS
8.	700123346	[1]	CAM	CAS wa twine
9.	S1 20261	[4]	wire hairpin cotter, .148
10.	063586	[4]	CLEVIS PIN	IH 3/8 x 1-1/8 Superseded by part number: 9838826
11.	101-11215	[1]	SNAP RING,#215, 2.026", Ext	CAS Retaining
12.	6591457	[4]	SHIM	CAS HALF, adjustable
13.	168-24	[8]	DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"	CAS round head, #10 x 1/2
14.	6613665	[12]	SHIM,57.15mm ID x 76.2mm OD x 0.13mm Thk	CAS .005
15.	6523534	[12]	SHIM	CAS
16.	6523542	[13.5]	SHIM	CAS .031
17.	700113321	[4]	KNOTTER	CAS ASSEMBLY KNOTTER
18.	700138856	[4]	GEAR	HFI knotter
19.	6591549	[3]	SPACER	CAS
20.	700123344	[1]	CAM	CAS WA TUCKER
21.	413-1060	[2]	BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5	CAS 5/8-11 x 3-3/4 C Superseded by part number: 16445
22.	495-21069	[2]	WASHER,5/8"	CAS wide plain, 5/8 Superseded by part number: 80299
23.	232-41110	[2]	NUT,5/8"-11, GC	CAS Superseded by part number: 85700693
24.	235663	[2]	BUSHING	CAS
25.	8050478	[1]	BALL BEARING,55.56mm ID x 100mm OD x 21mm W	CAS spherical
26.	714360	[2]	FLANGED BEARING	IH FLANGE
27.	433-820	[4]	CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5	CAS Superseded by part number: 87868
28.	705541	[4]	WASHER,0.53" ID x 1.06" OD x 0.14" Thk	CAS hardened plain, 1/2
29.	80679	[4]	LOCK WASHER,1/20.507 CST ZND	NH
30.	425-108	[4]	NUT,1/2" - 13, Gr 5	CAS Superseded by part number: 280431
