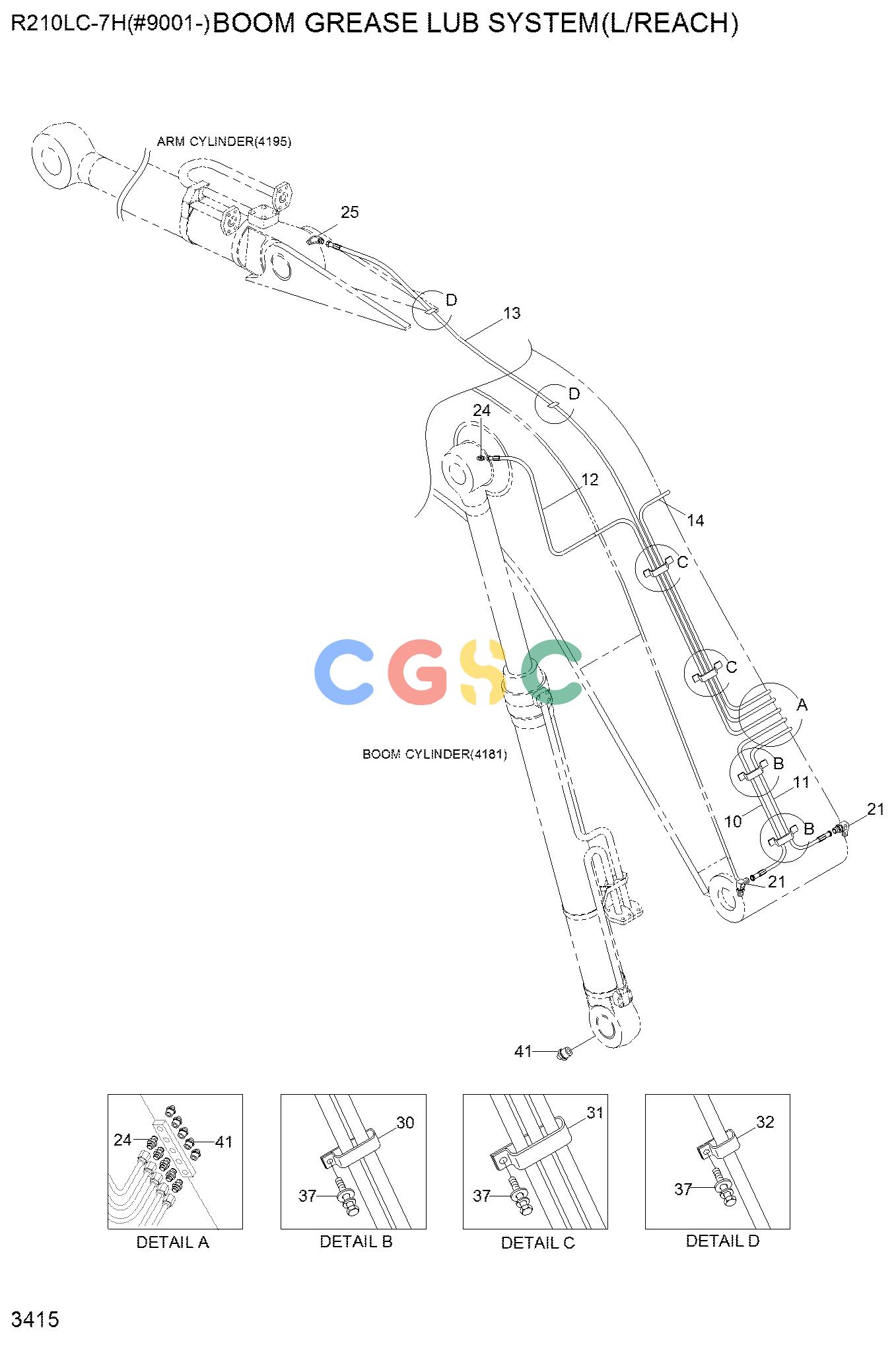

现代零件查询R210LC-7 BOOM GREASE LUB SYSTEM(#0055-,L/REACH)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
BOOM GREASE LUB SYSTEM
|
|
| 10. |
31N6-56110
|
[1] |
PIPE ASSY-GREASE
|
|
| 10. |
P840-042021
|
[1] |
HOSE ASSY-SYNF,THD(0X0)
|
|
| 10. |
P840-042019
|
[1] |
HOSE ASSY-SYN THD
|
|
| 11. |
31N6-56120
|
[1] |
PIPE ASSY-GREASE
|
|
| 11. |
P840-042020
|
[1] |
HOSE ASSY-SYN THD
|
|
| 12. |
31N6-56130
|
[1] |
PIPE ASSY-GREASE
|
|
| 12. |
P840-042050
|
[1] |
HOSE ASSY-SYN THD
|
|
| 12. |
P840-042046
|
[1] |
HOSE ASSY-SYN THD
|
|
| 12. |
P840-042047
|
[1] |
HOSE ASSY-SYN THD
|
|
| 13. |
31N6-56140
|
[1] |
PIPE ASSY-GREASE
|
|
| 13. |
P840-042110
|
[1] |
HOSE ASSY-SYN THD
|
|
| 13. |
P840-042108
|
[1] |
HOSE ASSY-SYN THD
|
|
| 14. |
31N6-56150
|
[1] |
PIPE ASSY-GREASE
|
|
| 14. |
P840-042048
|
[1] |
HOSE ASSY-SYN THD
|
|
| 14. |
P840-042044
|
[1] |
HOSE ASSY-SYNF,THD(0X0)
|
|
| 14. |
P840-042045
|
[1] |
HOSE ASSY-SYN THD
|
|
| 17. |
P400-042018
|
[2] |
HOSE ASSY-COMPACT
|
|
| 18. |
P400-042014
|
[1] |
HOSE ASSY-COMPACT
|
|
| 21. |
E231-0349
|
[2] |
ELBOW-90
|
|
| 21. |
31NB-50280
|
[2] |
CONNECTOR
|
|
| 22. |
E131-0625
|
[5] |
CONNECTOR
|
|
| 23. |
E131-0626
|
[3] |
CONNECTOR
|
|
| 24. |
P010-430011
|
[2] |
CONNECTOR
|
|
| 24. |
P010-430011
|
[7] |
CONNECTOR
|
|
| 24. |
P010-430011
|
[2] |
CONNECTOR
|
|
| 25. |
E231-0207
|
[1] |
ELBOW-45
|
|
| 30. |
31E9-0078
|
[2] |
CLAMP-PIPE
|
|
| 30. |
31N6-50230
|
[2] |
CLAMP-PIPE
|
|
| 30. |
31N8-50380
|
[2] |
CLAMP-HOSE
|
|
| 31. |
31E9-0125
|
[2] |
CLAMP-PIPE
|
|
| 31. |
31N8-50390
|
[3] |
CLAMP-HOSE
|
|
| 32. |
32E1-1025
|
[3] |
CLAMP-PIPE
|
|
| 32. |
31N8-50370
|
[2] |
CLAMP-HOSE
|
|
| 33. |
31E6-0211
|
[2] |
PAD-RUBBER
|
|
| 34. |
31E6-0212
|
[5] |
PAD-RUBBER
|
|
| 37. |
S035-062026
|
[17] |
BOLT-W/WASHER
|
|
| 37. |
S035-062026
|
[7] |
BOLT-W/WASHER
|
|
| 41. |
S651-810003
|
[7] |
NIPPLE-GREASE
|
|
| 42. |
31W5-70060
|
[5] |
CONNECTOR
|
|
