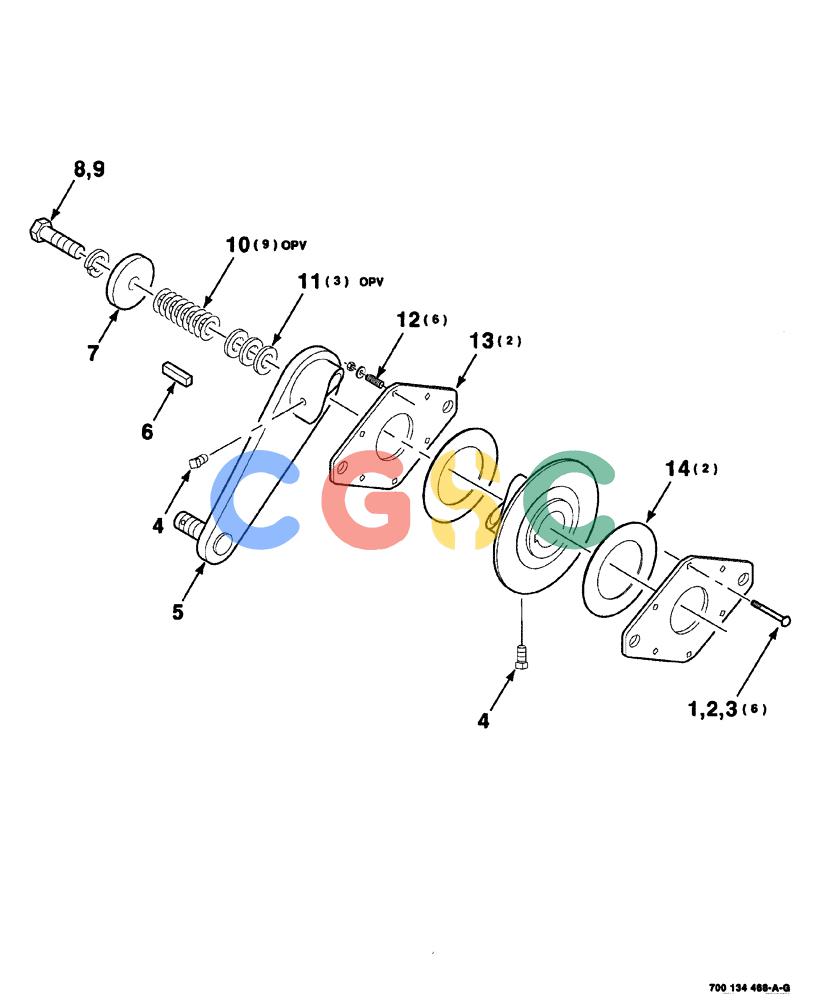

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (06-034) - KNOTTER BRAKE ASSEMBLY, S.N. CFH0163129 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-656
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 x 3-1/2 RHSNB Superseded by part number: 280348
|
| 2. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
231-1406
|
[6] |
LOCK NUT,3/8"-16, GB
|
CAS
|
| 4. |
708081
|
[2] |
SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"
|
CAS
black, 1/2-13 x 1-1/4 CPSQHSS
|
| 5. |
700134469
|
[1] |
ARM
|
HFI
WA right
|
| 6. |
61879
|
[1] |
KEY
|
CAS
1/2 x 1/2 x 2-1/2
|
| 7. |
6561351
|
[1] |
CAP WASHER
|
CAS
|
| 8. |
413-1032
|
[1] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
Superseded by part number: 86505999
|
| 9. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 10. |
6553275
|
[9] |
SHIM
|
CAS
countershaft
|
| 11. |
396-21066
|
[3] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 12. |
58644
|
[6] |
SPRING
|
CAS
compression
|
| 13. |
6578868
|
[2] |
LARGE PLATE
|
CAS
PLATE, LARGE pressure
|
| 14. |
700710945
|
[2] |
CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk
|
L
CLUTCH
|
