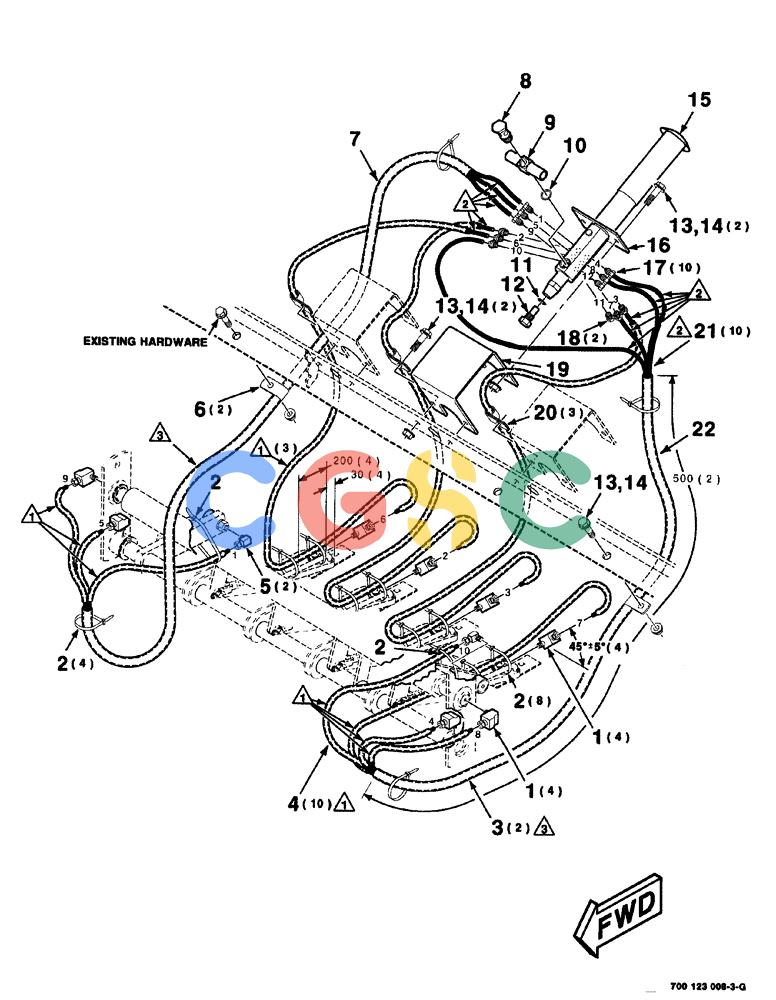

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (06-040) - LUBE PUMP AND LINE ASSEMBLY-TWINE FINGERS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
551 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
51200288
|
[8] |
ELBOW
|
CAS
male, Includes: Ref. 17
|
| 2. |
L18337
|
[14] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP TIE nylon Superseded by part number: 529070
|
| 3. |
700123362
|
[2] |
FLEXIBLE SHEATH
|
CAS
protective 1/2, 10 Foot
|
| 4. |
700113360
|
[10] |
FLEXIBLE SHEATH
|
CAS
protective 1/4, 10 Foot
|
| 5. |
700706279
|
[2] |
COUPLING, QUICK, FEM
|
CAS
snap on
|
| 6. |
700711751
|
[2] |
CLAMP
|
CAS
|
| 7. |
700123462
|
[1] |
HARNESS
|
HFI
right side
|
| 8. |
700706543
|
[1] |
3 WAY CONNECTION
|
CAS
stud
|
| 9. |
700706542
|
[1] |
3 WAY CONNECTION
|
CAS
nipple
|
| 10. |
700706541
|
[1] |
COPPER WASHER
|
CAS
TEE
|
| 11. |
700706540
|
[1] |
COPPER WASHER
|
CAS
PLUG
|
| 12. |
700710976
|
[1] |
PLUG
|
CAS
stop
|
| 13. |
7883275
|
[5] |
SCREW,Hex Washer, 1/4" - 20 x 3/4"
|
CAS
1/4-20 x 3/4 HWHMS
|
| 14. |
1703354
|
[5] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 15. |
700706276
|
[1] |
SMALL PUMP
|
CAS
MULTI LUBER
|
| 16. |
700113361
|
[1] |
SUPPORT
|
CAS
PUMP support
|
| 17. |
700706277
|
[10] |
TUBE NUT
|
CAS
compression, 1/4-28
|
| 18. |
700710975
|
[2] |
PLUG
|
CAS
1/4-28
|
| 19. |
700113353
|
[1] |
SUPPORT
|
CAS
|
| 20. |
751321
|
[3] |
CLAMP
|
CAS
Superseded by part number: 80272535
|
| 21. |
700113359
|
[10] |
TUBE,0.125" OD, 3048 mm Length
|
CAS
nylon, 10 Foot
|
| 22. |
700123461
|
[1] |
WIRE HARNESS
|
CAS
left side
|
