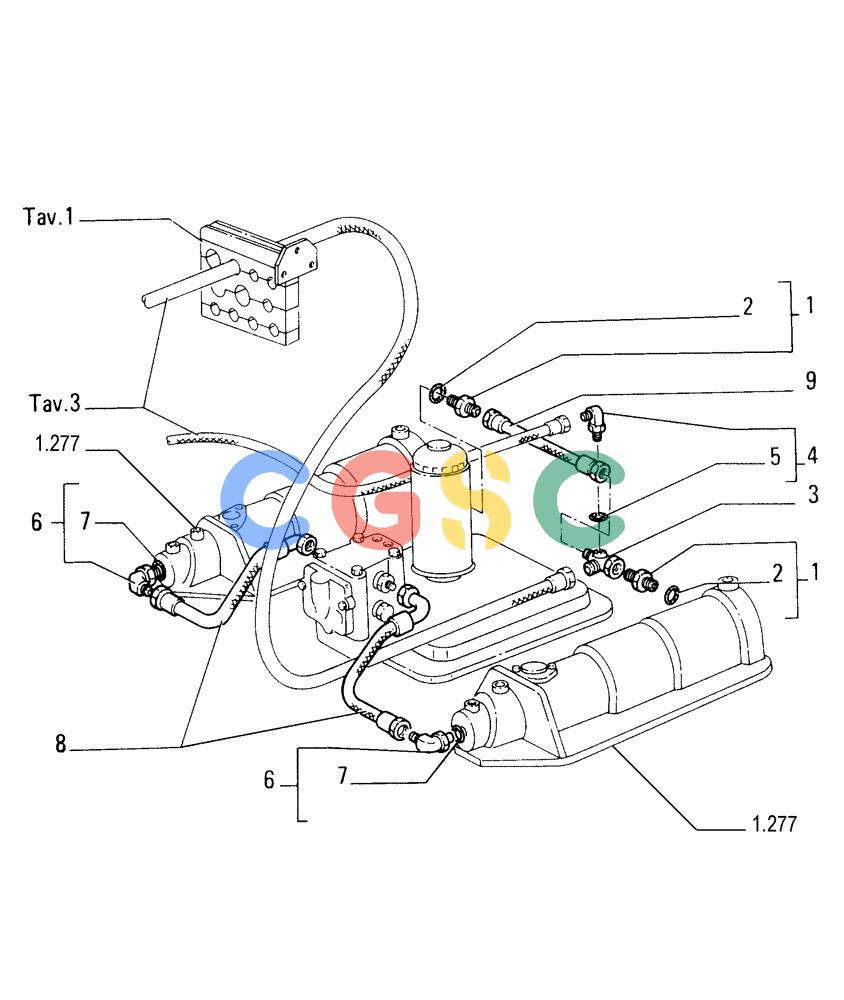

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.319[02]) - STEERING CONNECTING PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
399 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79066942 | [2] | HYD CONNECTOR | LEC- ASSY |
| 3. | 79115092 | [1] | HYD CONNECTOR | LEC |
| 4. | 79067016 | [1] | HYD CONNECTOR | LEC- ASSY |
| 6. | 79067021 | [2] | HYD CONNECTOR | LEC- ASSY |
| 8. | 79078507 | [2] | FLEXIBLE HOSE | LEC |
| 9. | 79091863 | [1] | HOSE,15.9mm ID x 500mm L, SAE 100R1 | LEC |
| 5. | 14437685 | [1] | O-RING,9.30mm ID x 2.40mm | JES |
| 2. | 14437885 | [1] | O-RING,13.30mm ID x 2.40mm | LEC |
| 7. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
