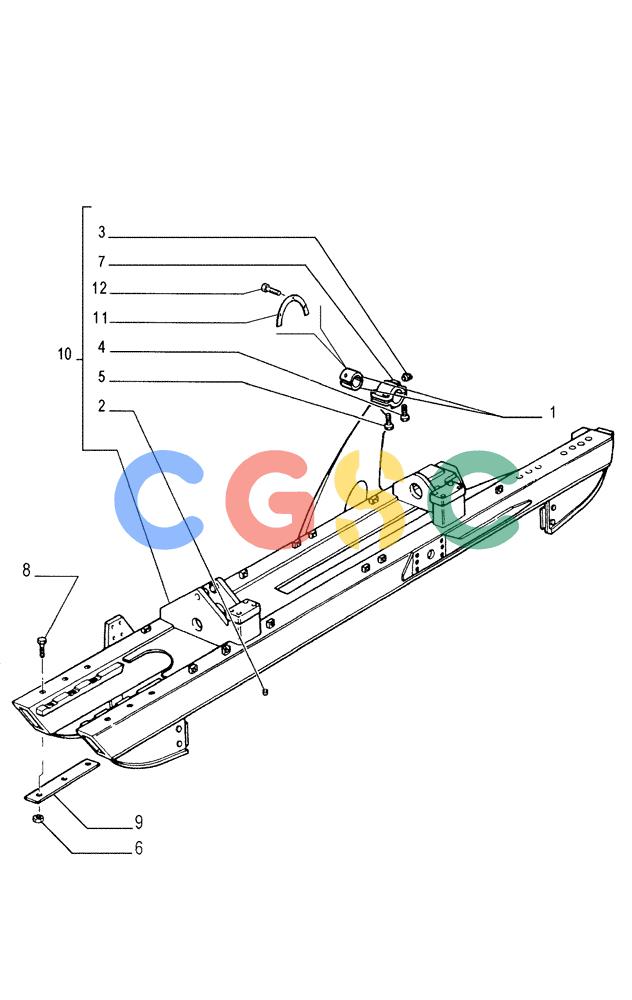

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.340[01]) - TRACK FRAME New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
438 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 587626 | [4] | BUSHING | BHB Superseded by part number: 75224821, 75242136 |
| 2. | 590353 | [11] | PLUG,15mm OD x 10mm High, Plastic | TTF |
| 3. | 13407811 | [1] | LUBE NIPPLE,Angled - 45°, M10 x 1 x 27.00mm | TTF10X1X45 |
| 4. | 15981334 | [2] | BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9 | JES |
| 5. | 15981834 | [2] | BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9 | IMO |
| 6. | 16105021 | [12] | LOCK NUT,M12 x 1.25, Cl 10 | TTF |
| 7. | 79008162 | [1] | SUPPORT | LEC |
| 8. | 79031906 | [12] | SCREW | LEC |
| 9. | 79031909 | [4] | SHIM | LEC |
| 10. | 79088977 | [1] | BODY | LECLEFT - ASSY |
| 10. | 76027662 | [1] | FRAME | LECRIGHT - ASSY |
| 11. | 13313017 | [6] | SCREW,Pozidriv Oval Hd, Csk, M6 x 16mm, Cl 5.8, Full Thd | LEC |
| 12. | 76048155 | [2] | HALF-RING | LEC |
