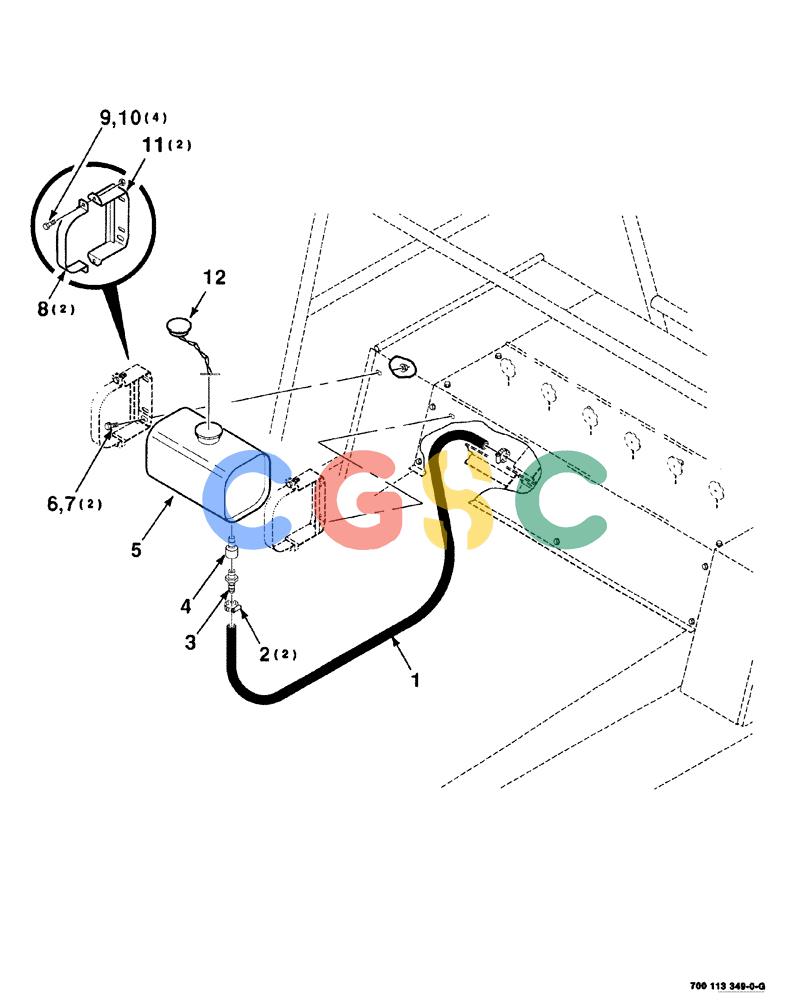

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (06-070) - LUBE RESERVOIR ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700706284
|
[1] |
FLEXIBLE HOSE
|
CAS
hydraulic Superseded by part number: 526602R1
|
| 2. |
214-1410
|
[2] |
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
|
CAS
Superseded by part number: 18088392
|
| 3. |
846915
|
[1] |
INSERT
|
CAS
|
| 4. |
700706288
|
[1] |
ADAPTER
|
CAS
sediment trap
|
| 5. |
700715415
|
[1] |
RESERVOIR, HYDRAULIC
|
CAS
reservoir oil, Includes: Ref. 12
|
| 6. |
409-7616
|
[2] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 7. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 8. |
700129435
|
[2] |
STRAP
|
CAS
|
| 9. |
413-620
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Superseded by part number: 72187207, 88011
|
| 10. |
231-4116
|
[4] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 11. |
700129433
|
[2] |
SUPPORT
|
CAS
WA
|
| 12. |
700715459
|
[1] |
CAP
|
CAS
ASSEMBLY, Includes: Chain and Retainer
|
