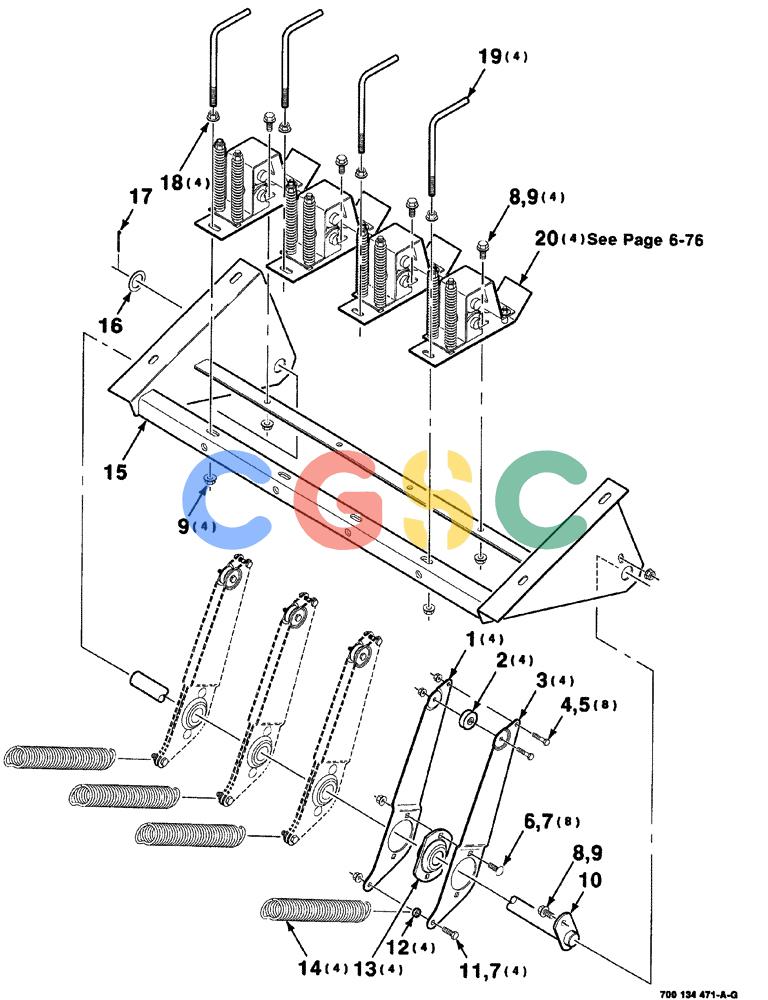

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (06-074) - TENSIONER ASSEMBLY, S.N. CFH0117743 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
678 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700137467
|
[4] |
ARM
|
CAS
tension, right
|
| 2. |
700707700
|
[4] |
BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm
|
CAS
Superseded by part number: 700737442
|
| 3. |
700137466
|
[4] |
ARM
|
CAS
tension, left
|
| 5. |
1703354
|
[8] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 6. |
111-237
|
[8] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
|
CAS
Superseded by part number: 33-516
|
| 7. |
232-5315
|
[12] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 8. |
409-7612
|
[5] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 9. |
329-286
|
[9] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 10. |
700134472
|
[1] |
ROD
|
HFI
WA
|
| 11. |
413-516
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| 12. |
6514772
|
[4] |
SPACER
|
CAS
|
| 13. |
700715941
|
[4] |
FLANGED BEARING
|
CAS
flange
|
| 14. |
700714986
|
[4] |
SPRING
|
CAS
extension
|
| 15. |
700123254
|
[1] |
SUPPORT
|
CAS
WA
|
| 16. |
705574
|
[1] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 17. |
432-1024
|
[1] |
COTTER PIN,5/32" x 1 1/2"
|
CAS
5/32" x 1 1/2" Superseded by part number: 72187233, 88350
|
| 18. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 19. |
702400048
|
[4] |
ROD
|
CAS
Superseded by part number: 700602446
|
| 20. |
6845077
|
[4] |
TENSIONER
|
CAS
ASM
|
| 4. |
413-420
|
[8] |
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 87716, 72187191
|
