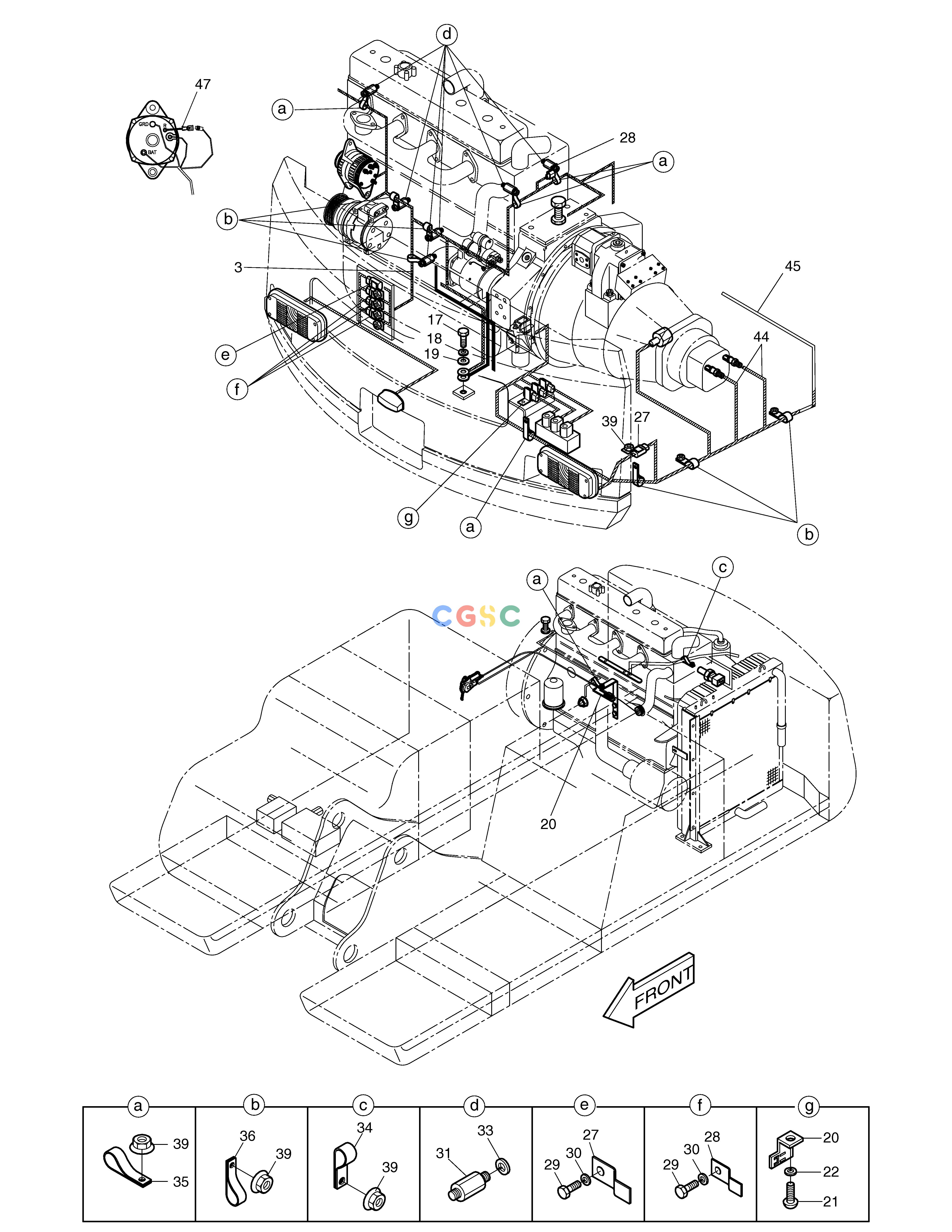

斗山零件查询ELECTRIC WIRING(2)-ENGINE SOLAR 130W-V(2) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1161
|
[-] |
ELECTRIC WIRING(1)
|
|
| 17. |
S0511653
|
[1] |
BOLT
|
|
| 18. |
S5102603
|
[1] |
. WASHER
|
|
| 19. |
S5010613
|
[1] |
WASHER
|
|
| 20. |
2195-3500
|
[4] |
BRACKET
|
|
| 21. |
S3450953
|
[3] |
SCREW
|
|
| 22. |
S5102303
|
[3] |
. WASHER
|
|
| 27. |
2197-1660
|
[2] |
BRACKET
|
|
| 28. |
2197-1661
|
[4] |
BRACKET
|
|
| 29. |
S0508653
|
[4] |
BOLT
|
|
| 3. |
2530-1621A
|
[1] |
HARNESS;ENGINE
|
|
| 3. |
2530-1621B
|
[1] |
HARNESS;ENGINE
|
2530-1621C
|
| 3. |
2530-1621C
|
[1] |
HARNESS;ENGINE
|
|
| 3. |
2530-1621E
|
[1] |
HARNESS;ENGINE
|
|
| 3. |
2530-1621G
|
[1] |
HARNESS;ENGINE
|
|
| 30. |
S5102503
|
[4] |
. WASHER
|
|
| 31. |
2120-2151
|
[6] |
BOLT;STUD
|
|
| 33. |
S5102603
|
[6] |
. WASHER
|
|
| 34. |
2124-1509D1
|
[1] |
CLIP
|
|
| 35. |
2124-1509D2
|
[5] |
CLIP
|
|
| 36. |
2124-1509D3
|
[6] |
CLIP D24/M8
|
|
| 39. |
2121-1305
|
[12] |
NUT
|
|
| 44. |
2530-1679
|
[2] |
HARNESS;PRESSURE SENSOR
|
|
| 45. |
2530-1742
|
[1] |
HARNESS;JOINT
|
|
| 47. |
530-00123
|
[1] |
HARNESS;ALTERNATOR
|
|
