纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[06]) - CAB - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
809 次

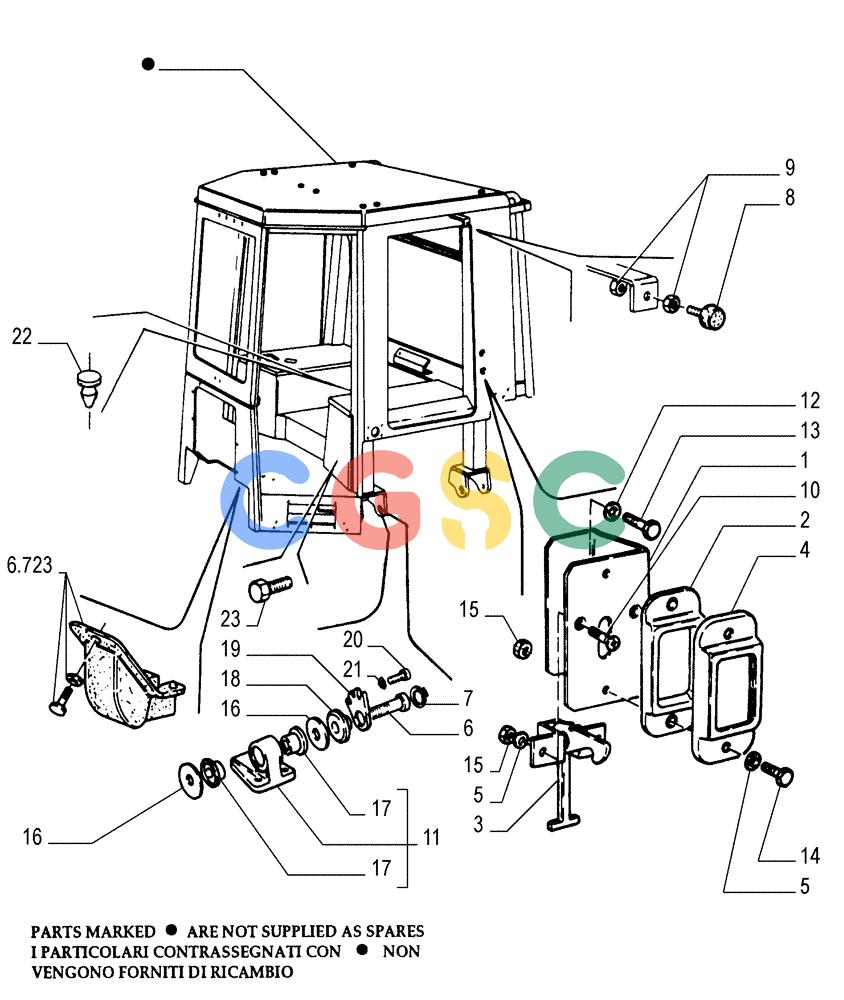

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79104886 | [1] | SPACER | LEC- RIGHT |
| 1. | 79104884 | [1] | SPACER | LEC- LEFT |
| 2. | 79096225 | [2] | SEAT/SLOT | LEC |
| 3. | 79102757 | [2] | HOOK | LEC |
| 4. | 79096224 | [2] | COVER | LEC |
| 5. | 14496531 | [16] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 6. | 79093830 | [4] | SCREW,Hex, M24 x 2 x 150mm | LEC |
| 7. | 13398976 | [4] | SNAP RING,M40, Int | JES |
| 8. | 79037282 | [2] | PAD | LEC |
| 9. | 12164721 | [4] | NUT,M10 x 1.25, Cl 10 | TTF |
| 10. | 14442134 | [4] | SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9 | TTF |
| 11. | 79109793 | [4] | SUPPORT | LEC- ASSY Superseded by part number: 76067987 |
| 12. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 13. | 16043221 | [4] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 14. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 15. | 16104121 | [8] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
| 16. | 79085441 | [4] | WASHER,24.6mm ID x 90mm OD x 5mm Thk | LEC |
| 17. | 79060730 | [2] | BUSHING | LEC |
| 18. | 79084966 | [4] | BUSHING | LEC |
| 19. | 79093828 | [4] | PLATE | LEC |
| 20. | 14420031 | [4] | HEX SOC SCREW,M10 x 20mm, Cl 10.9 | LEC |
| 21. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 22. | 70741009 | [2] | PLUG | LEC |
| 23. | 13309217 | [2] | SCREW,Pozidriv Oval Hd, Csk, M4 x 16mm, Cl 5.8, Full Thd | LEC4X16 Superseded by part number: 13309211 |
