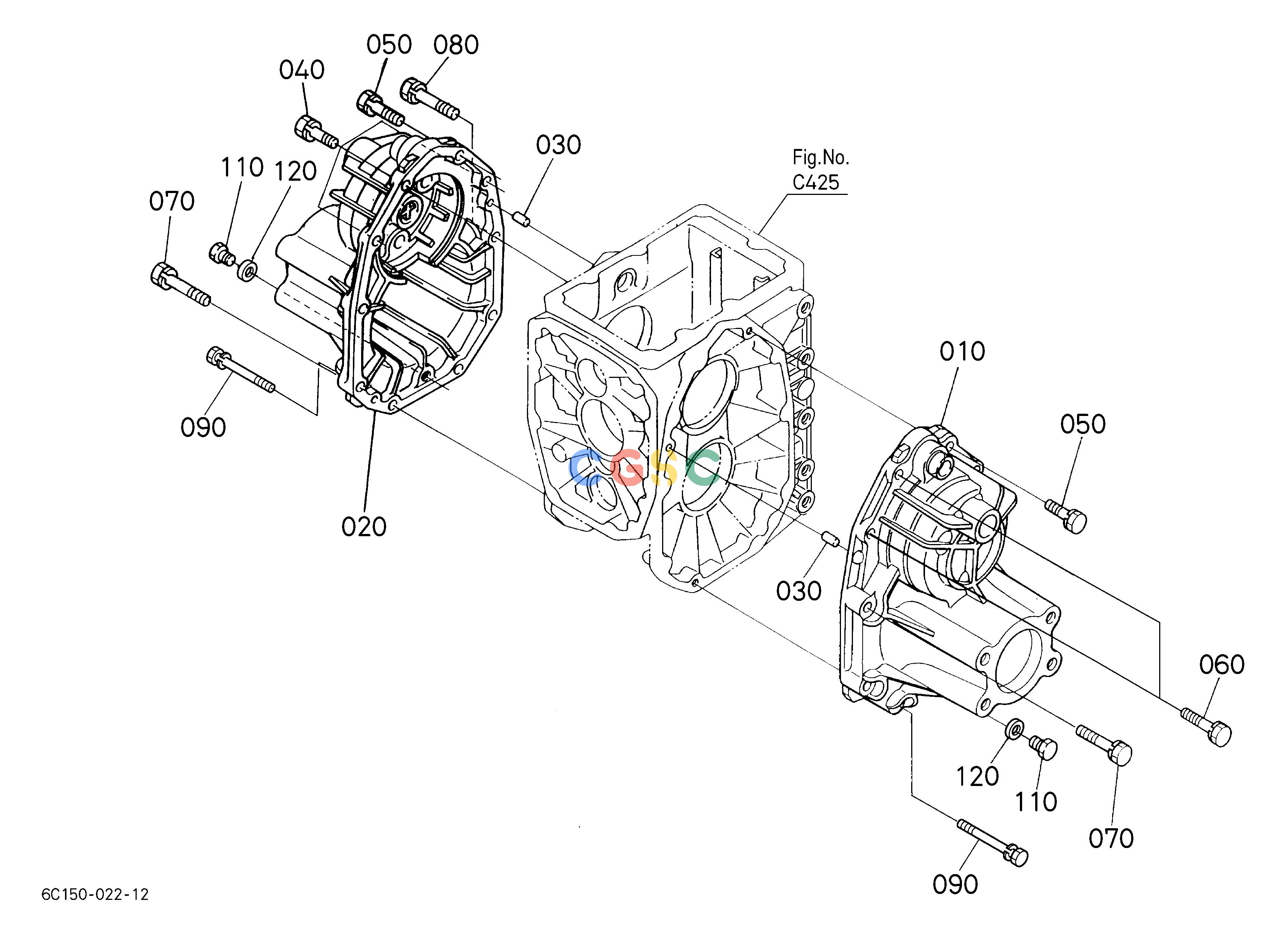

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K351112620
|
[1] |
CASE,AXLE
|
5.1040(lbs); 2.320
|
| 020. |
K351112610
|
[1] |
CASE,AXLE
|
5.3240(lbs); 2.420
|
| 030. |
0501200614
|
[4] |
PIN STRAIGHT
|
0.0088(lbs); 0.004
|
| 040. |
0112351035
|
[3] |
BOLT
|
0.0550(lbs); 0.025
|
| 050. |
0112351035
|
[3] |
BOLT
|
0.0550(lbs); 0.025
|
| 060. |
0112351035
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 070. |
0112351050
|
[9] |
BOLT
|
0.0770(lbs); 0.035
|
| 080. |
0112351050
|
[1] |
BOLT
|
0.0770(lbs); 0.035
|
| 090. |
0117351080
|
[2] |
BOLT
|
0.1078(lbs); 0.049
|
| 090. |
0113351080
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 110. |
0177451212
|
[2] |
BOLT FLANGE
|
0.0616(lbs); 0.028
|
| 120. |
0471701200
|
[2] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
