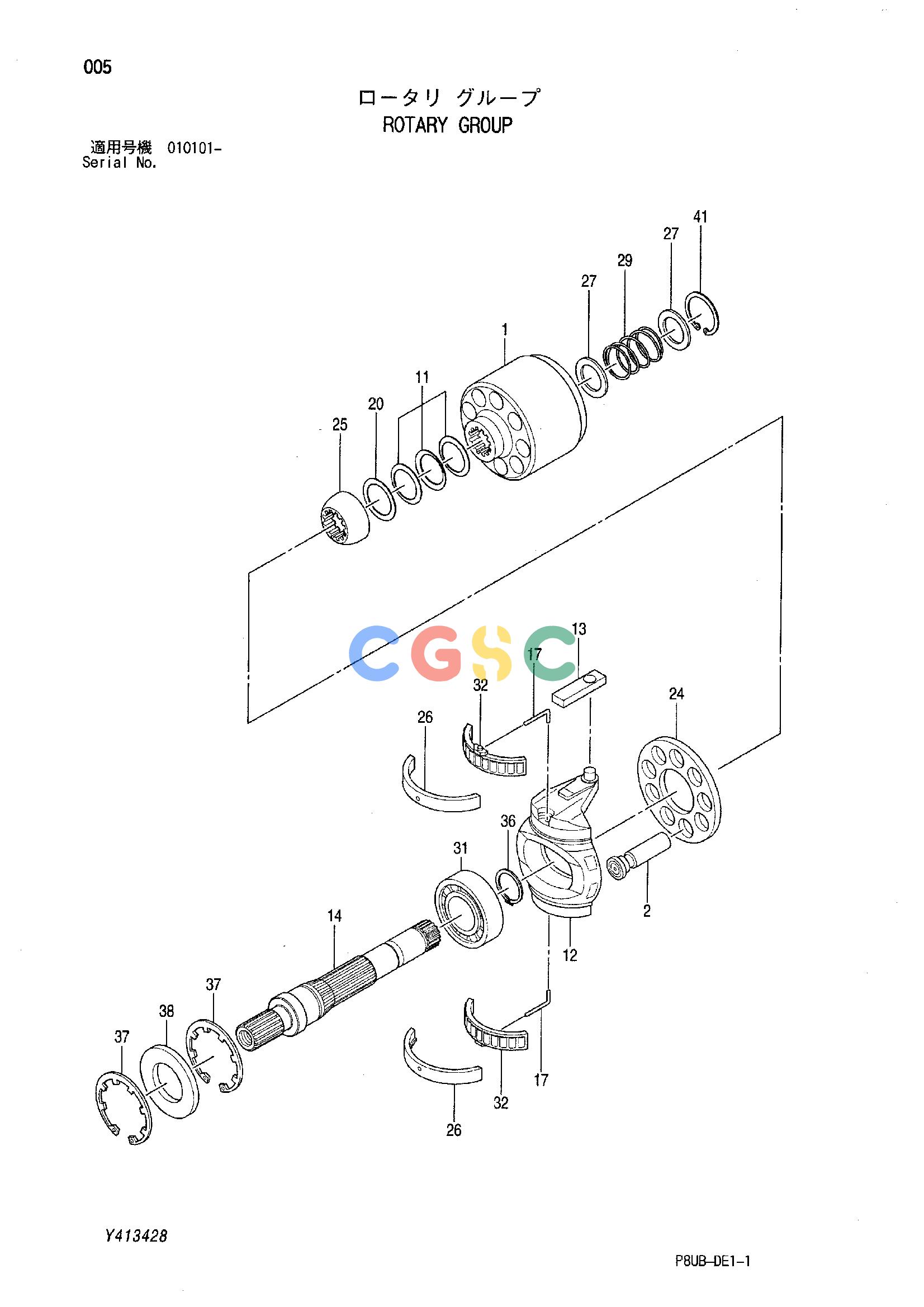

日立零件查询（CP215）ROTARY GROUP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425122-02 | [1] | ROTARY GROUP | |
| 1. | 425122-03 | [1] | BLOCK;CYL. | |
| 2. | 425122-04 | [9] | PISTON | |
| 11. | 425122-05 | [1] | SPRING;DISC | |
| 12. | 425122-06 | [1] | HANGER | |
| 13. | 425122-07 | [1] | GUIDE | |
| 14. | 425122-08 | [1] | SHAFT | |
| 17. | 425122-09 | [2] | PIN | |
| 20. | 425122-10 | [1] | SHIM 1.2 | |
| 20. | 425122-11 | [1] | SHIM 1.0 | |
| 20. | 425122-12 | [1] | SHIM 0.8 | |
| 20. | 425122-13 | [1] | SHIM 0.6 | |
| 24. | 425122-14 | [1] | RETAINER | |
| 25. | 425122-15 | [1] | GUIDE | |
| 26. | 425122-16 | [1] | LINER;BEERING | |
| 27. | 425122-17 | [2] | SHIM | |
| 29. | 425122-18 | [1] | SPRING | |
| 31. | 425122-19 | [1] | BRG. | |
| 32. | 425122-20 | [1] | BRG. | |
| 36. | 150015 | [1] | RING;RETAINING | |
| 37. | 425122-21 | [2] | RING;RETAINING | |
| 38. | 425122-22 | [1] | SEAL;OIL | |
| 41. | 151014 | [1] | RING;RETAINING | |
