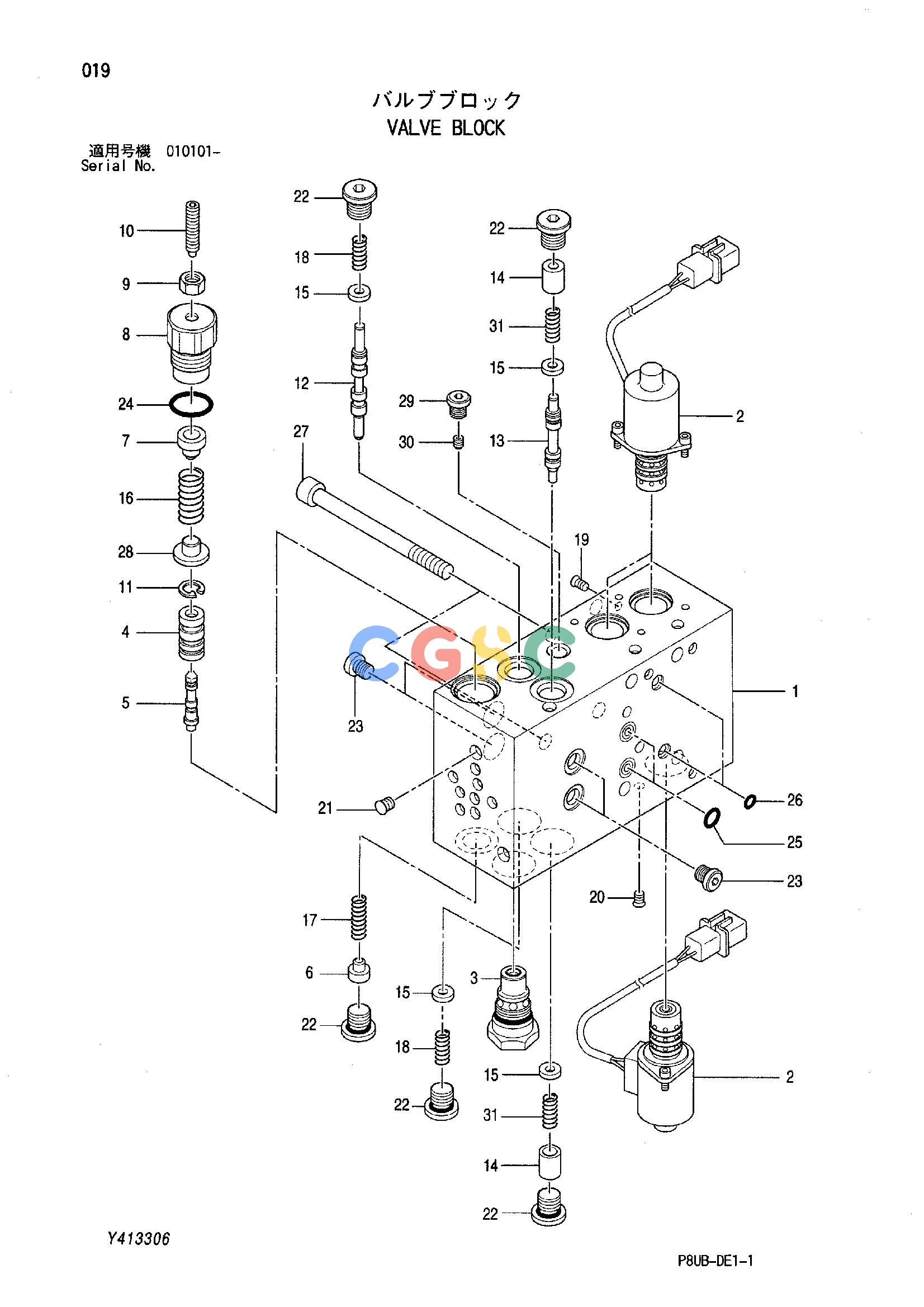

日立零件查询（CP215）VALVE BLOCK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
634 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424415-19 | [1] | VALVE BLOCK | |
| 1. | +++++++ | [1] | VALVE BLOCK | |
| 2. | 425122-62 | [3] | VALVE;SOLENOID | |
| 3. | 425458-48 | [1] | VALVE;RELIEF | |
| 4. | +++++++ | [1] | BARREL | |
| 5. | +++++++ | [1] | SPOOL | |
| 6. | 424415-20 | [1] | SEAT;SPRING | |
| 7. | 424415-21 | [1] | SEAT;SPRING | |
| 8. | 424415-22 | [1] | GUIDE | |
| 9. | 424415-23 | [1] | NUT | |
| 10. | 424415-24 | [1] | SCREW | |
| 11. | 151003 | [1] | RING;RETAINING | |
| 12. | 424415-25 | [1] | SPOOL | |
| 13. | 424415-26 | [1] | SPOOL | |
| 14. | 424415-27 | [2] | SEAT;SPRING | |
| 15. | 424415-28 | [4] | SEAT;SPRING | |
| 16. | 424415-29 | [1] | SPRING | |
| 17. | 424415-30 | [1] | SPRING | |
| 18. | 424415-31 | [2] | SPRING | |
| 19. | +++++++ | [6] | PLUG | (1=2 PIECES) |
| 20. | +++++++ | [9] | PLUG | |
| 21. | +++++++ | [2] | PLUG | |
| 22. | 425122-84 | [5] | PLUG | |
| 23. | 424415-32 | [4] | PLUG | |
| 24. | 160163 | [1] | O-RING | |
| 25. | 425458-30 | [2] | O-RING | |
| 26. | 425458-80 | [2] | O-RING | |
| 27. | 424415-33 | [4] | BOLT;SOCKET | |
| 28. | 424415-34 | [1] | SEAT;SPRING | |
| 29. | 425458-79 | [1] | PLUG | |
| 30. | 424415-35 | [1] | ORIFICE | |
| 31. | 424415-36 | [2] | SPRING | |
