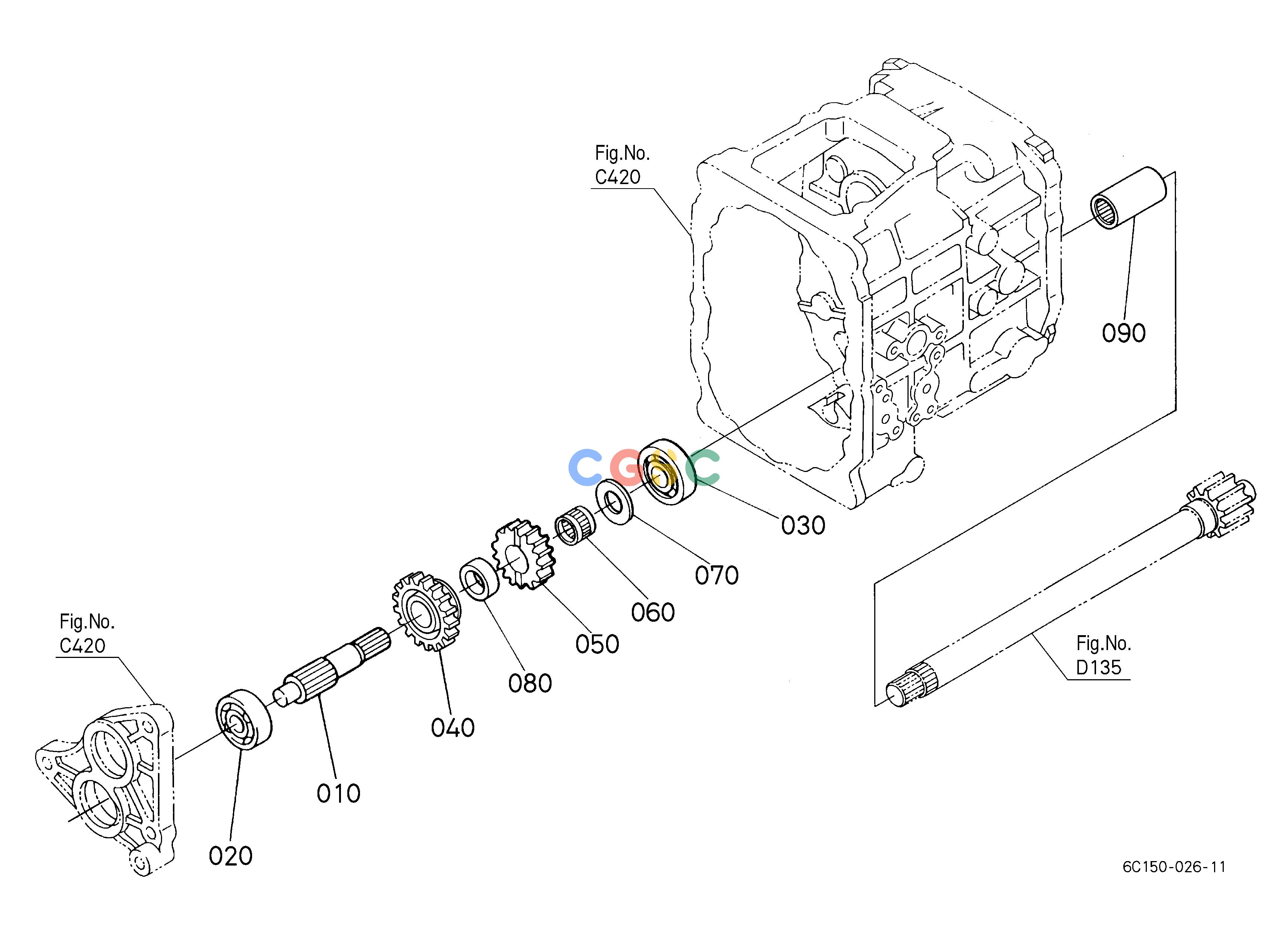

久保田零件查询D15200 3RD SHAFT ## NOTE:Exchange REF.No.010 new parts and REF.No.060 new parts simultaneously. TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05014312
|
[1] |
SHAFT
|
0.6820(lbs); 0.310
|
| 010. |
6C05014313
|
[1] |
SHAFT
|
0.7040(lbs); 0.320
|
| 020. |
0810106303
|
[1] |
BEARING BALL
|
0.2464(lbs); 0.112
|
| 030. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 040. |
6C04014320
|
[1] |
GEAR
|
0.7260(lbs); 0.330
|
| 050. |
6C04014333
|
[1] |
GEAR
|
0.3740(lbs); 0.170
|
| 060. |
6C04014352
|
[1] |
BEARING NEEDLE
|
0.0660(lbs); 0.030
|
| 060. |
6C04014353
|
[1] |
BEARING NEEDLE
|
0.0660(lbs); 0.030
|
| 070. |
6711114160
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 080. |
6C04014362
|
[1] |
COLLAR
|
0.0924(lbs); 0.042
|
| 090. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
