纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.667[01]) - OPERATOR'S SEAT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
392 次

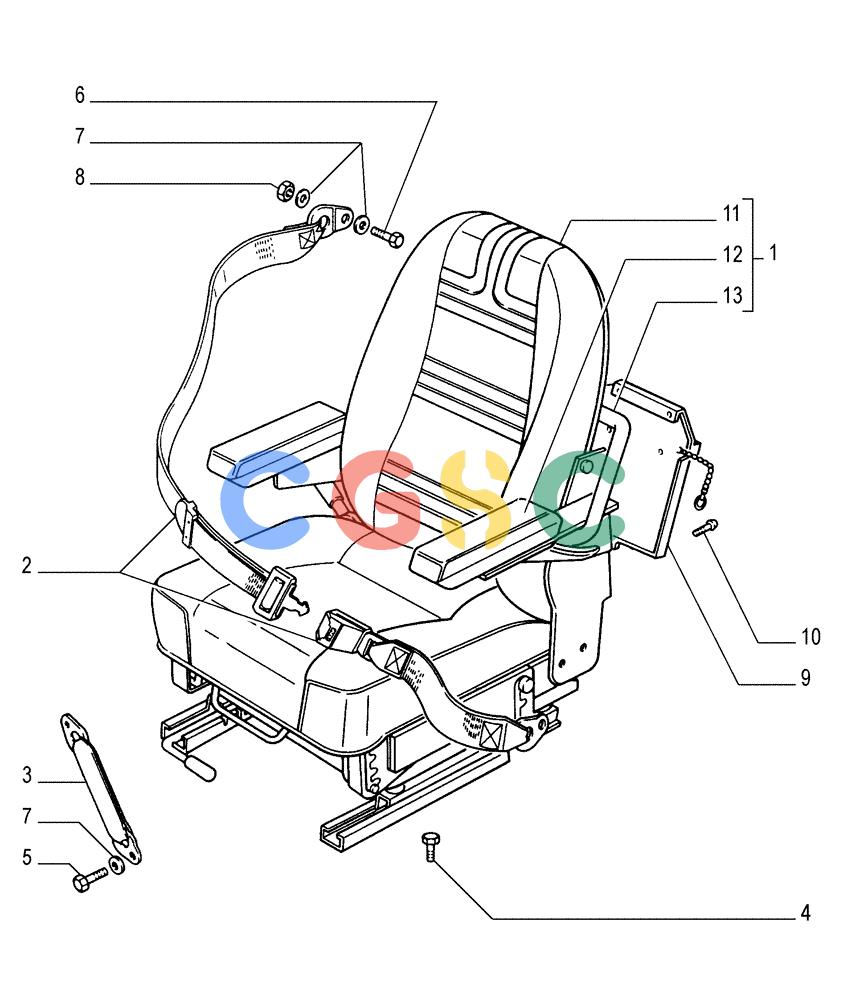

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79094497 | [1] | DRIVER SEAT | LEC- ASSY Superseded by part number: 79089725, 79060841, 79094461, 79060842 |
| 2. | 79064620 | [1] | SAFETY BELT ,48.00 mm W | LEC Superseded by part number: 73159801 |
| 3. | 79035976 | [2] | SHIELD | LEC |
| 4. | 16043231 | [4] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 5. | 10979234 | [2] | BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 10979231 |
| 6. | 11106434 | [2] | BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11106431 |
| 7. | 12626231 | [6] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 9. | 79023080 | [1] | HOLDER | LEC |
| 10. | 15663101 | [3] | SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm | LEC Superseded by part number: 15691301 |
| 11. | 79094461 | [1] | DRIVER SEAT | LEC- ASSY SEE TAV.2 |
| 12. | 79059084 | [2] | ARMREST | LEC Superseded by part number: 79060842, 79060841 |
| 13. | 79089725 | [1] | REINFORCEMENT | LEC |
