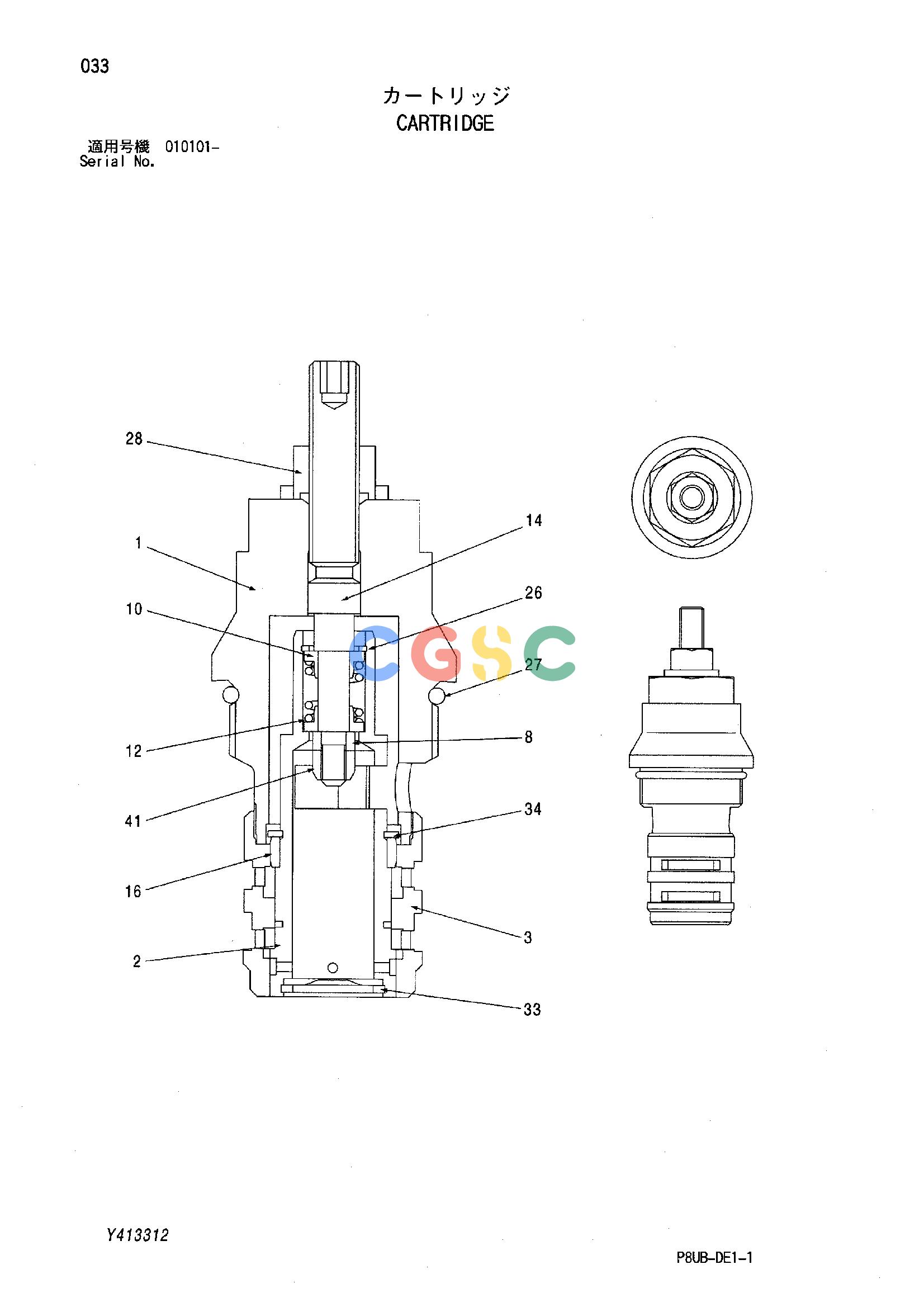

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 424415-47 | [1] | CARTRIDGE | ||
| 1. | +++++++ | [1] | CASE | |
| 2. | +++++++ | [1] | PLUNGER | |
| 3. | +++++++ | [1] | BUSHING | |
| 8. | +++++++ | [1] | PIECE;DISTANT | |
| 10. | +++++++ | [2] | SEAT;SPRING | |
| 12. | +++++++ | [1] | SPRING | |
| 14. | +++++++ | [1] | ROD | |
| 16. | +++++++ | [1] | RING | |
| 26. | +++++++ | [1] | RING;RETAINING | |
| 27. | 425122-82 | [1] | O-RING | |
| 28. | 424415-23 | [1] | NUT | |
| 33. | 151003 | [1] | RING;RETAINING | |
| 34. | +++++++ | [1] | RING;RETAINING | |
| 41. | +++++++ | [1] | NUT |
