日立零件查询（CP215）PUMP;WATER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
183 次

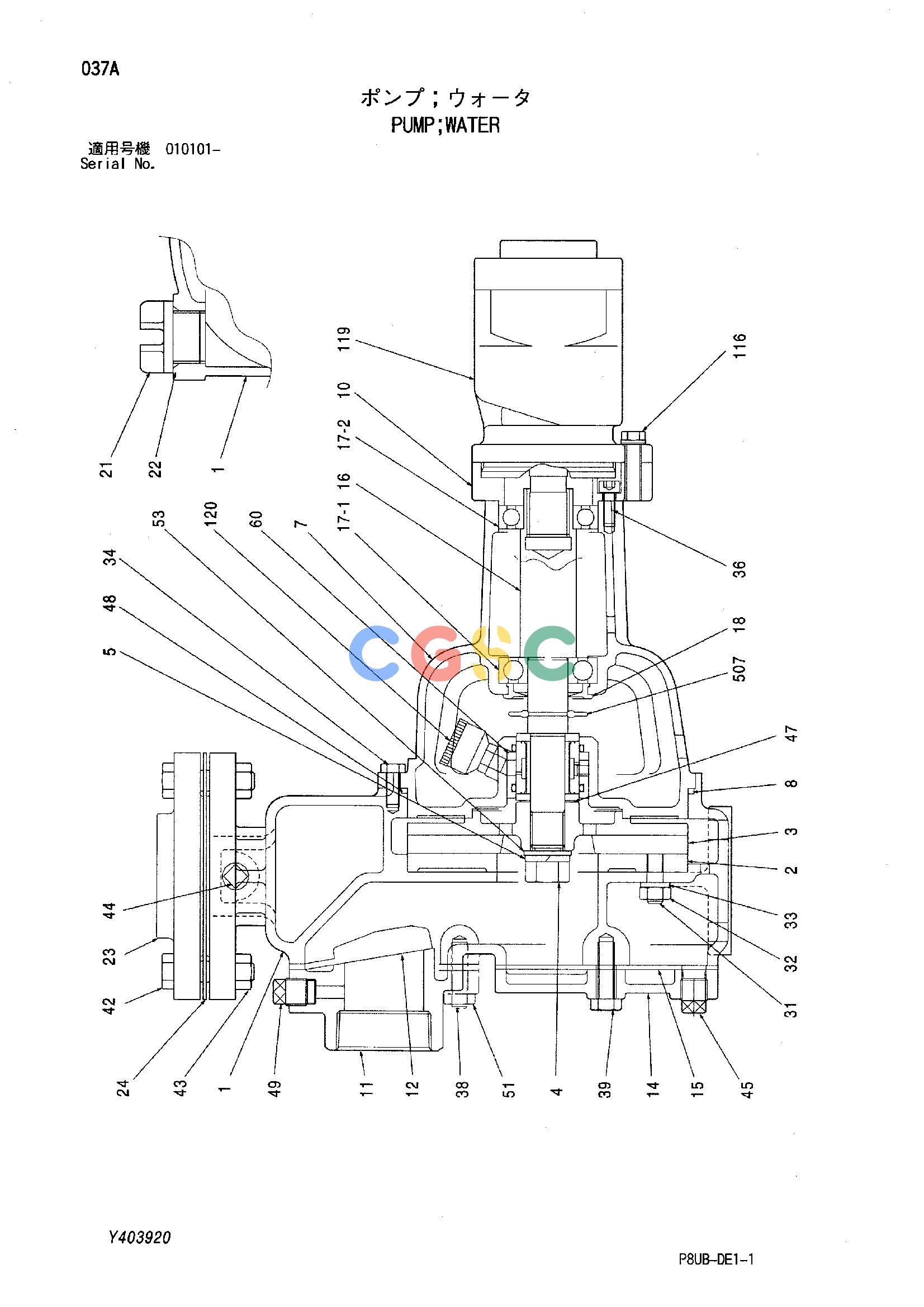

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424274 | [1] | PUMP;WATER | |
| 1. | 424781 | [1] | CASING | |
| 2. | 424782 | [1] | PLATE | |
| 3. | 424783 | [1] | WHEEL | |
| 4. | 424784 | [1] | NUT | |
| 5. | 424785 | [1] | WASHER;SPRING | |
| 7. | 424786 | [1] | COVER | |
| 8. | 424787 | [1] | PACKING | |
| 10. | 424788 | [1] | CAP | |
| 11. | 424789 | [1] | PLUG | |
| 12. | 424790 | [1] | VALVE | |
| 14. | 424791 | [1] | COVER | |
| 15. | 424792 | [1] | PACKING | |
| 16. | 424793 | [1] | SHAFT | |
| 17-1. | 949245 | [1] | BRG.;BALL | |
| 17-2. | 111049 | [1] | BRG.;BALL | |
| 18. | 424794 | [1] | BRIM | |
| 21. | 438196 | [1] | PLUG | |
| 22. | 438195 | [1] | PACKING | |
| 23. | 424795 | [1] | FLANGE | |
| 24. | 424796 | [1] | PACKING | |
| 31. | 424797 | [2] | BOLT;STUD | |
| 32. | 947855 | [2] | NUT | |
| 33. | 947887 | [2] | WASHER;SPRING | |
| 34. | 947621 | [6] | BOLT | |
| 36. | 947802 | [4] | BOLT | |
| 38. | 424799 | [4] | BOLT;STUD | |
| 39. | 947633 | [1] | BOLT | |
| 42. | 947647 | [4] | BOLT | |
| 43. | 947871 | [4] | NUT | |
| 44. | 439207 | [1] | PLUG | |
| 45. | 439707 | [1] | PLUG;DRAIN | |
| 47. | 424801 | [1] | LINER | |
| 48. | 424802 | [1] | LINER | |
| 49. | 439207 | [1] | PLUG | |
| 51. | 947855 | [4] | NUT | |
| 53. | 424803 | [4] | WASHER;PLANE | |
| 60. | 424804 | [1] | SEAL | |
| 116. | 500030 | [2] | BOLT | |
| 119. | 426273 | [1] | MOTOR;OIL | |
| 120. | 424805 | [1] | CUP;GREASE | |
| 507. | 424806 | [1] | FLINGER | |
