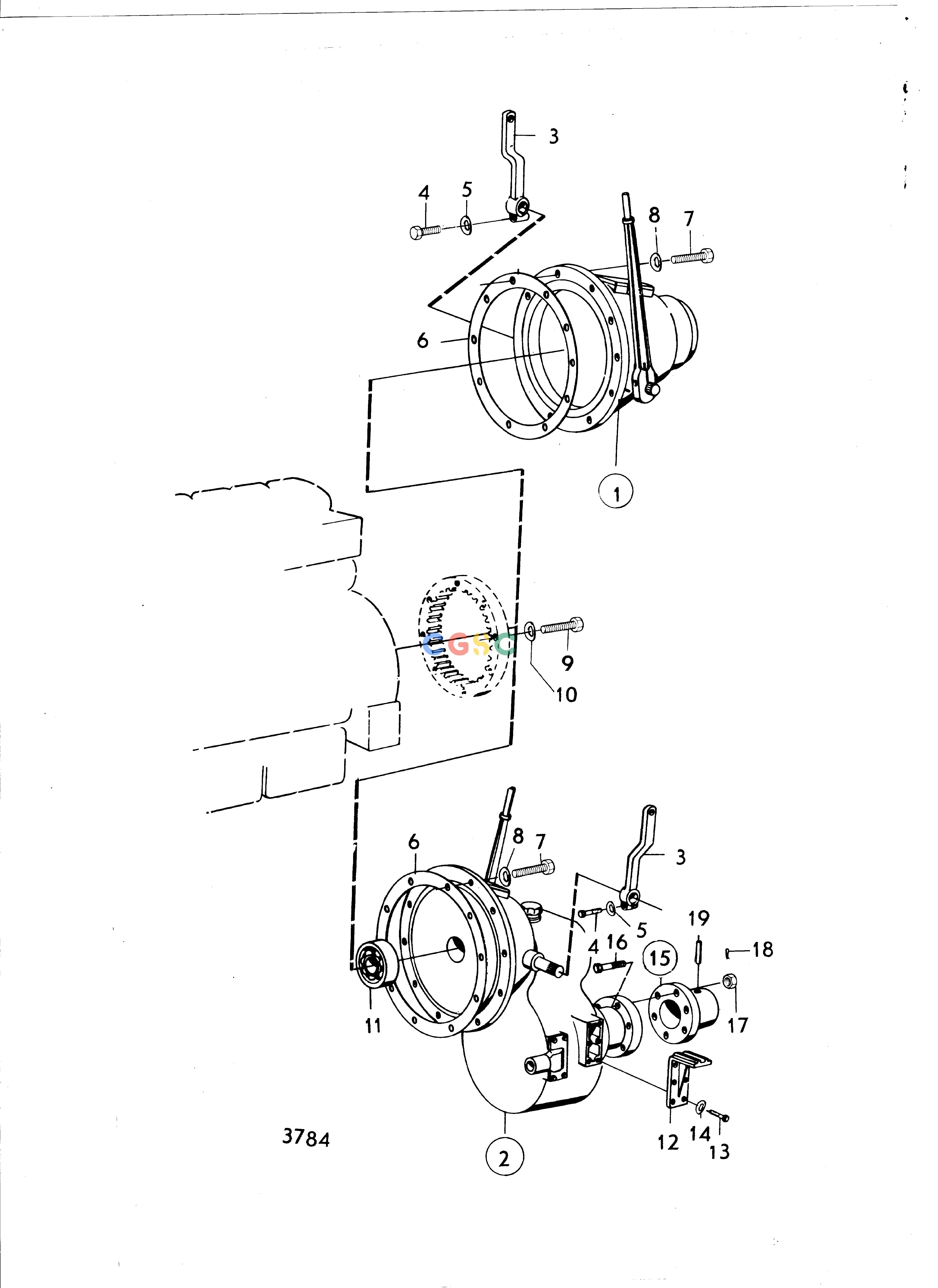

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCTransmissionsClutch and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
821366
|
[1] |
Clutch
|
Twin Disc 14''
|
| 1. |
|
|
|
|
| 1. |
846730
|
[1] |
Clutch
|
BB314
|
| 2. |
815221
|
[1] |
Clutch
|
Drilled 30mm., Ratio 4,7:1
|
| 2. |
|
|
|
See group 4D
|
| 3. |
31143
|
[1] |
Lever
|
|
| 4. |
959644
|
[1] |
Hexagon screw
|
|
| 5. |
941908
|
[1] |
Spring washer
|
|
| 6. |
800314
|
[1] |
Gasket
|
|
| 7. |
940160
|
[12] |
Hexagon screw
|
|
| 8. |
941909
|
[12] |
Spring washer
|
|
| 9. |
955562
|
[8] |
Hexagon screw
|
|
| 10. |
940280
|
[8] |
Spring washer
|
|
| 11. |
|
|
|
|
| 12. |
804931
|
[2] |
Bracket
|
|
| 13. |
955340
|
[12] |
Hexagon screw
|
|
| 14. |
940280
|
[12] |
Spring washer
|
|
| 15. |
820935
|
[1] |
Clutch flange
|
|
| 16. |
955753
|
[6] |
Screw
|
|
| 17. |
955887
|
[6] |
Castle nut
|
|
| 18. |
907861
|
[6] |
Split pin
|
|
| 19. |
17186
|
[2] |
Taper pin
|
|
