纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.468[01]) - SEMI-U MOLDBOARD (HSU) - OPTIONAL CODE 76027843 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
683 次

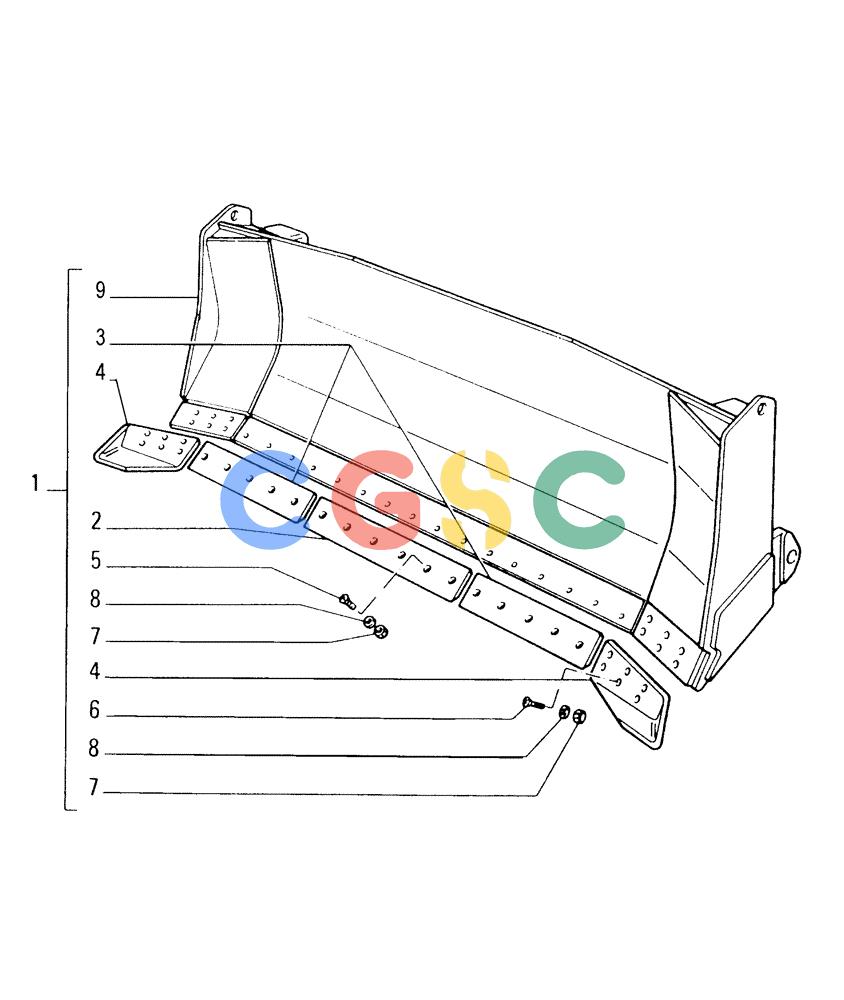

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76027843 | [1] | DOZER BLADE | LECASSY |
| 2. | 79108021 | [1] | CUTTING EDGE | LEC |
| 3. | 8294668 | [2] | CUTTING EDGE | LEC |
| 4. | 79094512 | [1] | CUTTING EDGE | LEC- LEFT |
| 4. | 79094511 | [1] | CUTTING EDGE | LEC- RIGHT |
| 5. | 8273530 | [12] | SCREW,Sq Hd, M20 x 1.5 x 72mm | LEC Superseded by part number: 8289500 |
| 6. | 8282270 | [17] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 7. | 86015195 | [29] | NUT,M20 x 1.5, Cl 10 | RAC |
| 8. | 14497131 | [29] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 9. | 76027842 | [1] | DOZER BLADE | LEC Superseded by part number: 76027843 |
