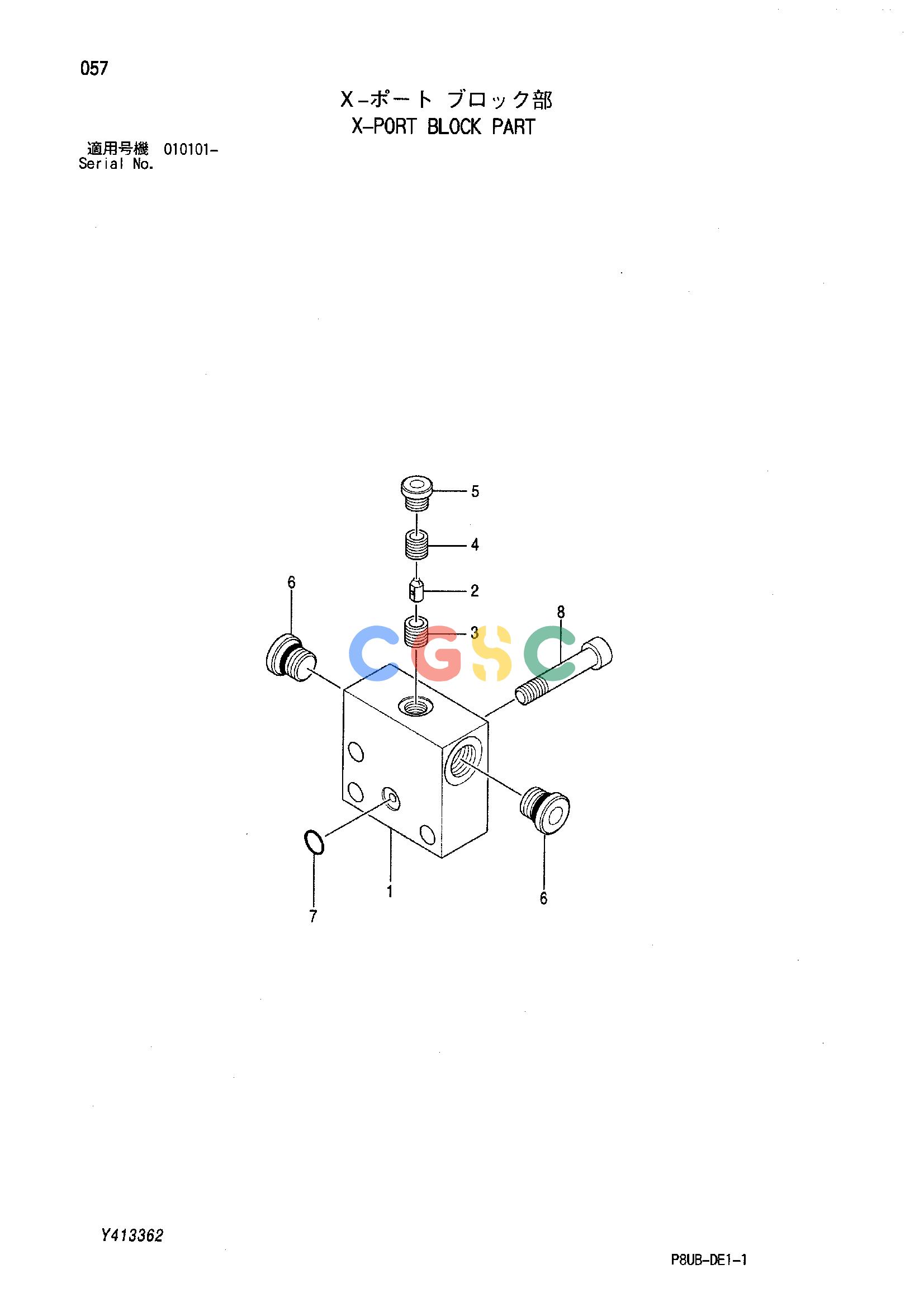

日立零件查询（CP215）X-PORT BLOCK PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424269-13 | [1] | X-PORT BLOCK PART | |
| | 424269-13 | [1] | X-PORT BLOCK PART | |
| 1. | 424269-14 | [1] | BODY | |
| 1. | 424269-14 | [1] | BODY | |
| 2. | 424269-15 | [1] | ORIFICE | |
| 2. | 424269-15 | [1] | ORIFICE | |
| 3. | 425122-67 | [1] | GUIDE | |
| 3. | 425122-67 | [1] | GUIDE | |
| 4. | 425122-69 | [1] | GUIDE | |
| 4. | 425122-69 | [1] | GUIDE | |
| 5. | 425458-79 | [1] | PLUG | |
| 5. | 425458-79 | [1] | PLUG | |
| 6. | 448201 | [2] | PLUG | |
| 6. | 448201 | [2] | PLUG | |
| 7. | 438599 | [1] | O-RING | |
| 7. | 438599 | [1] | O-RING | |
| 8. | 424269-16 | [3] | BOLT;SOCKET | |
| 8. | 424269-16 | [3] | BOLT;SOCKET | |
