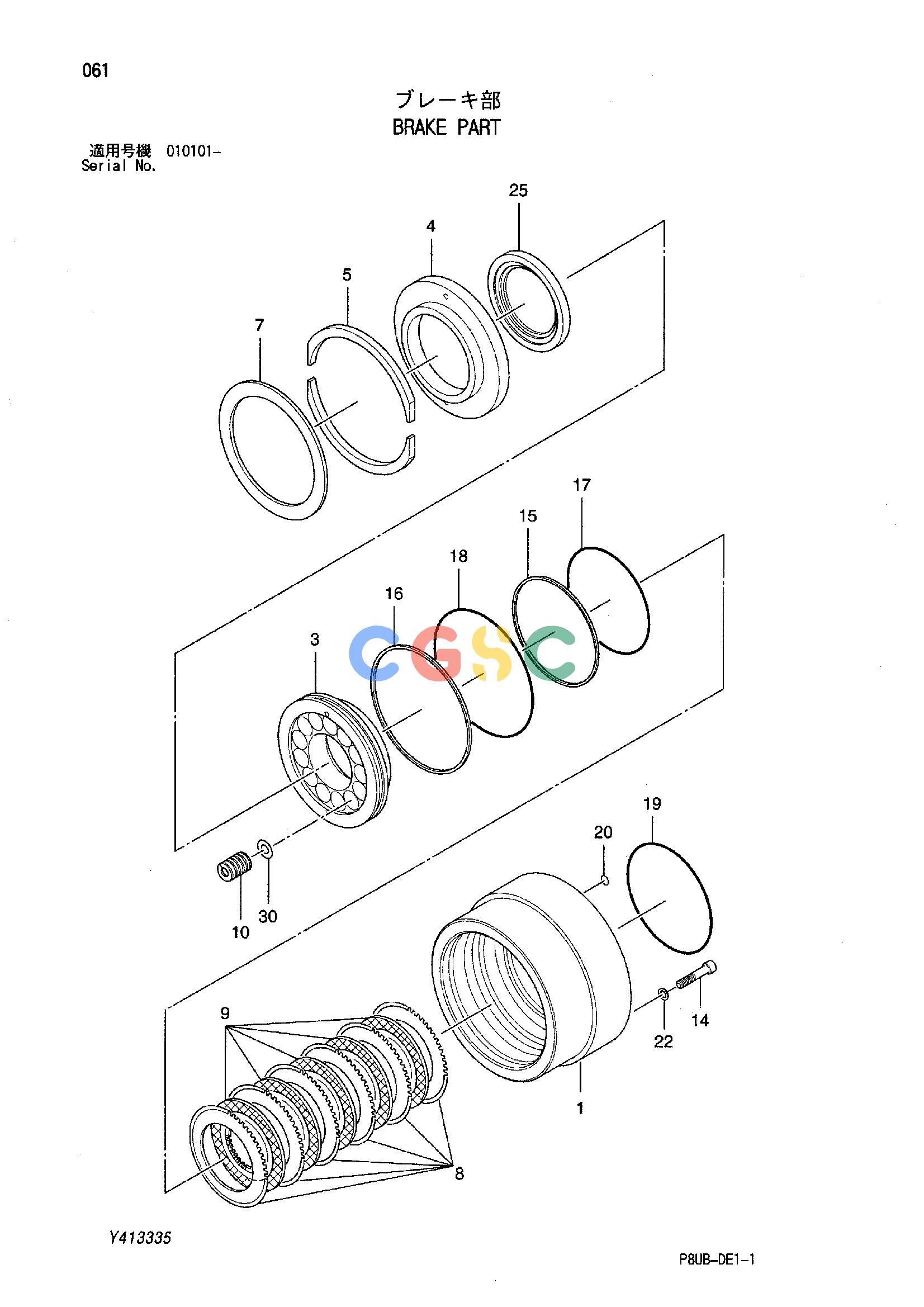

日立零件查询（CP215）BRAKE PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
357 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424269-27 | [1] | BRAKE PART | |
| | 424269-27 | [1] | BRAKE PART | |
| 1. | 424269-28 | [1] | HOUSING | |
| 1. | 424269-28 | [1] | HOUSING | |
| 3. | 424269-29 | [1] | PISTON | |
| 3. | 424269-29 | [1] | PISTON | |
| 4. | 424269-30 | [1] | PIECE;DISTANT | |
| 4. | 424269-30 | [1] | PIECE;DISTANT | |
| 5. | 424269-31 | [1] | RETAINER | |
| 5. | 424269-31 | [1] | RETAINER | |
| 7. | 424269-32 | [1] | PIECE;DISTANT | |
| 7. | 424269-32 | [1] | PIECE;DISTANT | |
| 8. | 424269-33 | [6] | PLATE | |
| 8. | 424269-33 | [6] | PLATE | |
| 9. | 424269-34 | [5] | PLATE | |
| 9. | 424269-34 | [5] | PLATE | |
| 10. | 424269-35 | [13] | SPRING | |
| 10. | 424269-35 | [13] | SPRING | |
| 14. | 424269-36 | [8] | BOLT;SOCKET | |
| 14. | 424269-36 | [8] | BOLT;SOCKET | |
| 15. | 424269-37 | [1] | RING;BACK-UP | |
| 15. | 424269-37 | [1] | RING;BACK-UP | |
| 16. | 424269-38 | [1] | RING;BACK-UP | |
| 16. | 424269-38 | [1] | RING;BACK-UP | |
| 17. | 438499 | [1] | O-RING | |
| 17. | 438499 | [1] | O-RING | |
| 18. | 448101 | [1] | O-RING | |
| 18. | 448101 | [1] | O-RING | |
| 19. | 430461 | [1] | O-RING | |
| 19. | 430461 | [1] | O-RING | |
| 20. | 438613 | [1] | O-RING | |
| 20. | 438613 | [1] | O-RING | |
| 22. | 606020 | [8] | WASHER;SPRING | |
| 22. | 606020 | [8] | WASHER;SPRING | |
| 25. | 424269-39 | [1] | PIECE;DISTANCE | |
| 25. | 424269-39 | [1] | PIECE;DISTANCE | |
| 30. | 424269-40 | [39] | SHIM 0.5 | |
| 30. | 424269-40 | [39] | SHIM 0.5 | |
