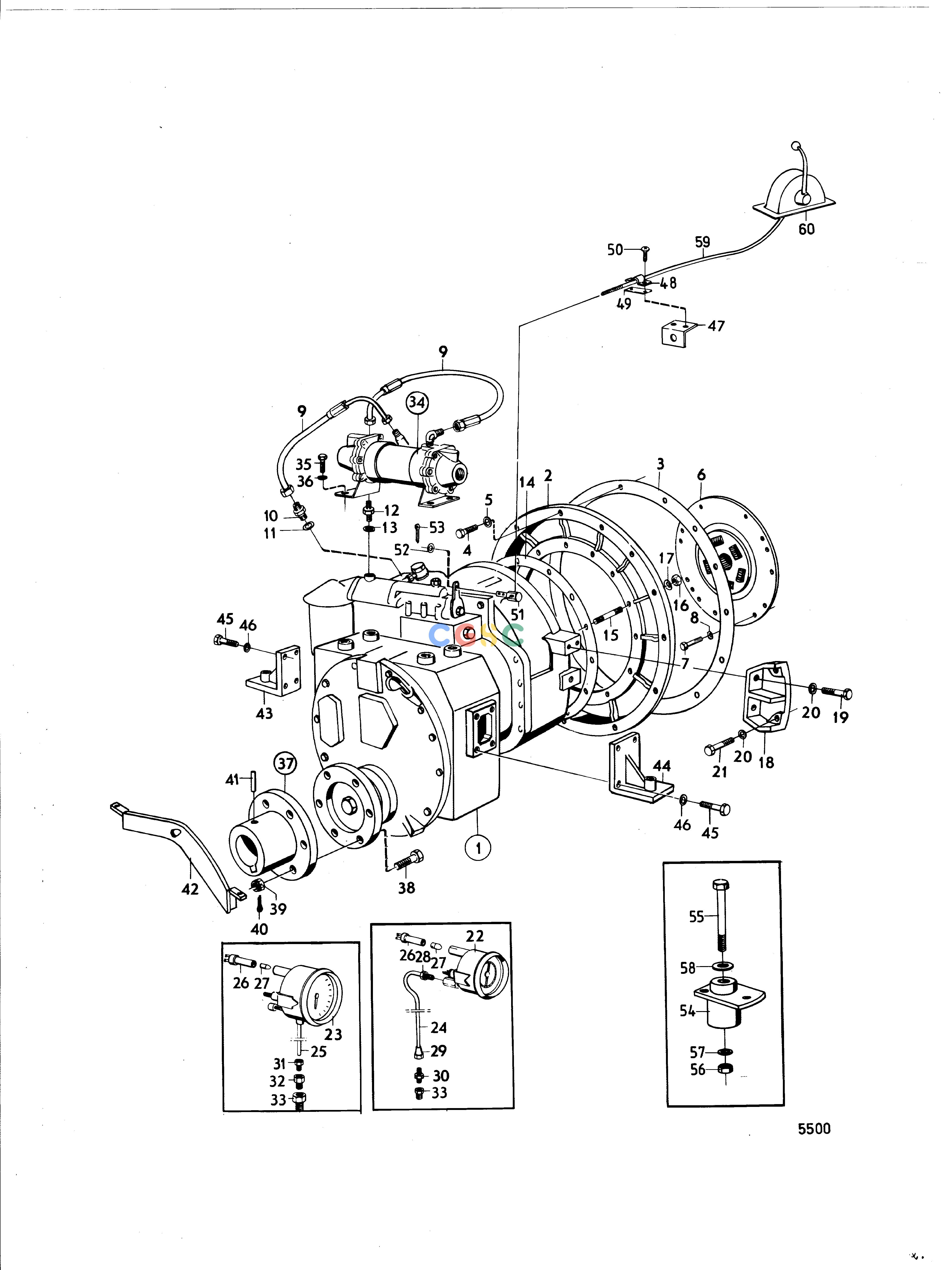

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCTransmissionsReverse Gear SCG MRF 350 with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
815250
|
[1] |
Spacer flange
|
|
| 3. |
800314
|
[1] |
Gasket
|
|
| 4. |
940160
|
[12] |
Hexagon screw
|
|
| 5. |
941909
|
[12] |
Spring washer
|
|
| 6. |
836319
|
[1] |
Absorber
|
|
| 7. |
955534
|
[6] |
Hexagon screw
|
|
| 8. |
942336
|
[6] |
Spring washer
|
|
| 9. |
820968
|
[2] |
Hose
|
|
| 10. |
942418
|
[1] |
Nipple
|
|
| 11. |
957184
|
[1] |
Gasket
|
|
| 12. |
942363
|
[1] |
Fitting
|
|
| 13. |
18821
|
[1] |
Gasket
|
|
| 14. |
815247
|
[1] |
Gasket
|
|
| 15. |
953261
|
[12] |
Stud
|
|
| 16. |
955827
|
[12] |
Hexagon nut
|
|
| 17. |
942336
|
[12] |
Spring washer
|
|
| 18. |
815251
|
[2] |
Bracket
|
|
| 19. |
955549
|
[4] |
Hexagon screw
|
|
| 20. |
941909
|
[8] |
Spring washer
|
|
| 21. |
940116
|
[4] |
Hexagon screw
|
|
| 22. |
827236
|
[1] |
Oil manometer
|
|
| 23. |
|
|
|
4'' propeller shaft flange.
|
| 24. |
954303
|
[1] |
Tube
|
L=5000mm D=3/16''
|
| 25. |
954302
|
[1] |
Tube
|
L=5000mm D=1/8''
|
| 26. |
808175
|
[1] |
Bulb socket
|
|
| 27. |
182059
|
[1] |
Bulb
|
24V
|
| 28. |
87698
|
[1] |
Fitting screw
|
|
| 29. |
954320
|
[1] |
Fitting nut
|
|
| 30. |
954334
|
[1] |
Nipple
|
|
| 31. |
26699
|
[1] |
Fitting screw
|
|
| 32. |
16226
|
[1] |
Fitting
|
|
| 33. |
809139
|
[1] |
Nipple
|
|
| 34. |
821082
|
[1] |
Oil cooler
|
|
| 35. |
101253
|
[4] |
Screw
|
|
| 36. |
942336
|
[4] |
Spring washer
|
|
| 37. |
820933
|
[1] |
Clutch flange
|
|
| 38. |
955696
|
[6] |
Hexagon screw
|
|
| 39. |
955883
|
[6] |
Castle nut
|
|
| 40. |
907834
|
[6] |
Split pin
|
|
| 41. |
17186
|
[1] |
Taper pin
|
|
| 42. |
|
|
|
Early type
|
| 43. |
|
|
|
For steering yoke and lever with splines., Early type
|
| 43. |
823218
|
[1] |
Bracket
|
|
| 44. |
823218
|
[1] |
Bracket
|
|
| 45. |
955560
|
[8] |
Hexagon screw
|
|
| 46. |
940280
|
[8] |
Spring washer
|
|
| 47. |
|
|
|
|
| 48. |
21471054
|
[1] |
Bracket
|
|
| 49. |
819068
|
[1] |
Washer
|
|
| 50. |
950021
|
[2] |
Cross recessed screw
|
|
| 51. |
814082
|
[1] |
Cube
|
|
| 52. |
940191
|
[1] |
Washer
|
|
| 53. |
17276
|
[1] |
Split pin
|
|
| 54. |
820646
|
[2] |
Rubber cushion
|
|
| 55. |
|
|
|
|
| 56. |
955829
|
[2] |
Hexagon nut
|
|
| 57. |
941912
|
[2] |
Spring washer
|
|
| 58. |
830652
|
[2] |
Spacer washer
|
|
| 59. |
|
|
|
See group 9
|
| 60. |
|
|
|
See group 9
|
