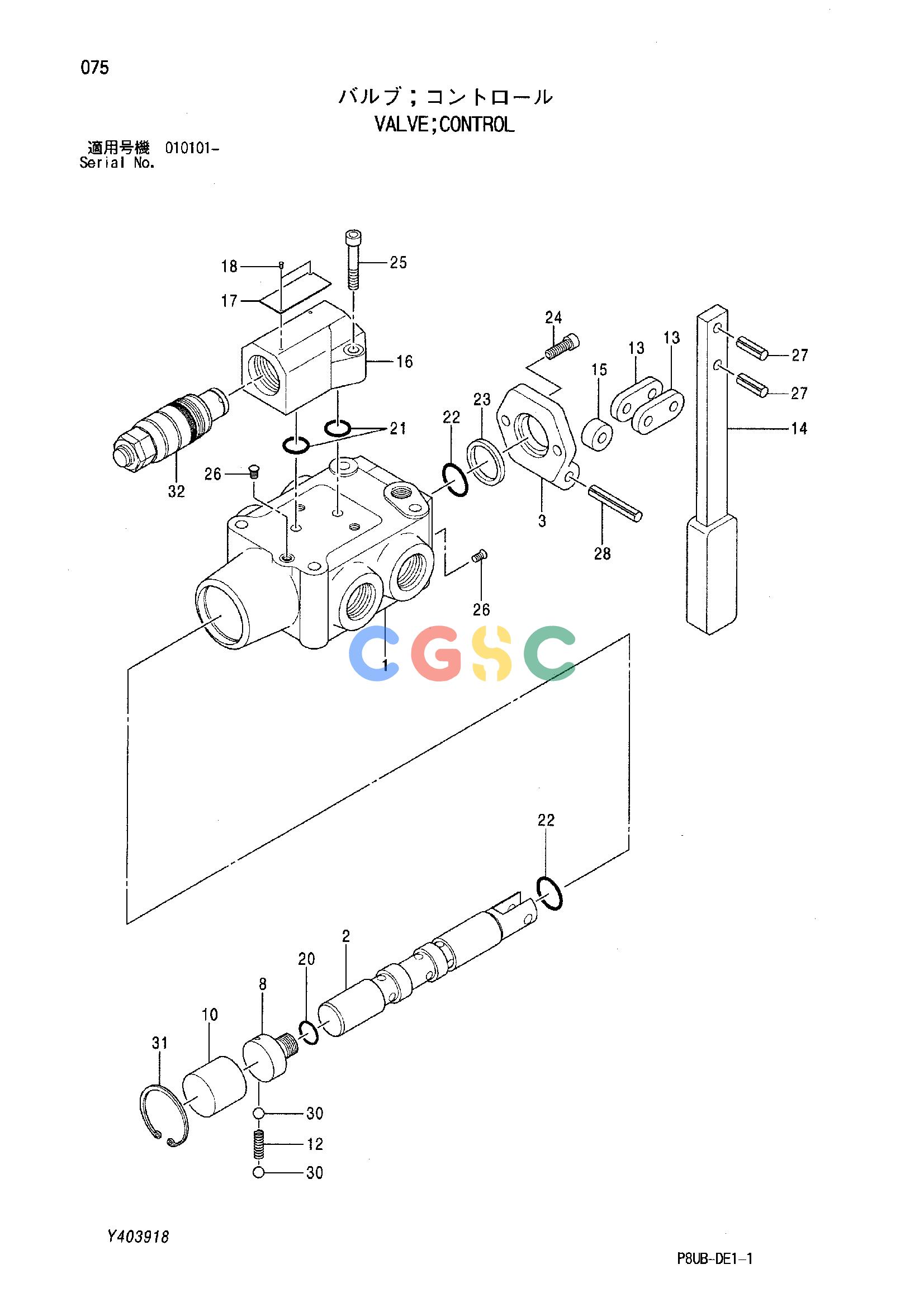

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 424272 | [1] | VALVE;CONTROL | |
| 1. | +++++++ | [1] | BODY | |
| 2. | +++++++ | [1] | SPOOL | |
| 3. | 424272-01 | [1] | BRACKET | |
| 8. | 424272-02 | [1] | STOPPER | |
| 10. | 424272-03 | [1] | DETENT | |
| 12. | 424272-04 | [1] | SPRING | |
| 13. | 424272-05 | [2] | PLATE | |
| 14. | 424272-06 | [1] | LEVER | |
| 15. | 424272-07 | [1] | PIECE;DISTANCE | |
| 16. | 424272-08 | [1] | BODY | |
| 17. | +++++++ | [1] | NAME-PLATE | |
| 18. | 425464-16 | [2] | SCREW;DRIVE | |
| 20. | 438600 | [1] | O-RING | |
| 21. | 424272-09 | [2] | O-RING | |
| 22. | 425122-70 | [2] | O-RING | |
| 23. | 424272-10 | [1] | SEAL;DUST | |
| 24. | 424272-11 | [2] | BOLT;SOCKET | |
| 25. | 424272-12 | [2] | BOLT;SOCKET | |
| 26. | +++++++ | [1] | PLUG | |
| 27. | 424272-13 | [2] | PIN;SPRING | |
| 28. | 629025 | [1] | PIN;SPRING | |
| 30. | 424272-14 | [2] | BALL;STEEL | |
| 31. | 151009 | [1] | RING;RETAINING | |
| 32. | 424272-15 | [1] | VALVE;RELIEF | |
